Marathon Electric GT1133

mpnGT1133
brandname: Marathon Electric
manufacturername: Marathon Electric

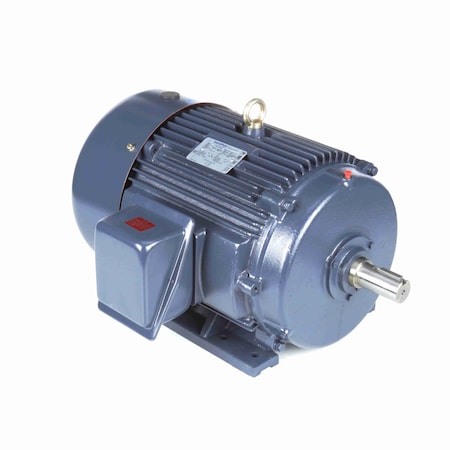

Marathon GT1133 324TS Frame 324TSTFCA6005 TEFC General Purpose Motor, 3 Phase, Rigid Base, Ball Bearing, 40 hp, 3600 rpm, 1 Speed, 575 VAC

Brand: Marathon Electric
PartNumber: GT1133
Model: MGT1133
PackageQuantity: 1
Binding: Misc.
Manufacturer: Marathon Electric
Label: Marathon Electric

Attributes

Key	Value
Amps	36
Approvals	CE, CSA, UR
Bearing Type	Ball
Bearings	Ball
CC Number	CC003A
Composition	Cast Iron
Country of Origin (subj.	China
Duty Cycle	Continuous
Efficiency	0.93
Efficiency %	93 %
Enclosure	Totally Enclosed Fan Co.
Enclosure Material	Iron
Enclosure Type	TEFC (Totally Enclosed .
enclosure type:	TEFC (Totally Enclosed .
Family Series	Marathon Electric Motors
Frame	324TS
frame material:	Cast Iron
frame size:	324TS
Frequency	60 Hz
frequency rating:	60 Hz
Full Load Amps	35.0
full load current:	35.00 A
full load efficiency:	93.60 %
Gross Weight	0 lbs
Horsepower	40 hp
HP	40
Hz	60
Includes	Conduit Box
Ins. Class	F
Insulation Class	F
Inverter Rated	Yes
ip rating:	43
Item	General Purpose Motor
Item Number	GT1133
Kilowatts	30 kW
Length Less Shaft	27-1/2"
Manufacturer	Marathon Electric
Manufacturer Model #	324TSTFCA6005
Manufacturer Part Number	324TSTFCA6005
Manufacturers Warranty .	1 yr.
Max. Ambient Temp.	40 Degrees C
Maximum Ambient Tempera.	40? C
Motor Application	General Application
Motor Bearings	Ball
Motor Design	3-Phase
Motor Efficiency Group	NEMA Premium Efficient
Motor Enclosure Design	Totally Enclosed Fan-Co.
Motor Frame Material	Cast Iron
motor horsepower:	40.0 hp, 40 hp
Motor Mounting Position	Horizontal
Motor Mounting Type	Rigid Base
motor phase:	3 ph
Motor Service Factor	1.15
Motor Shaft Design	Keyed
Motor Shaft Rotation	CW/CCW
motor supply voltage:	575 V
Motor Thermal Protection	None
Mounting	Base
Mounting Orientation	Horizontal
Mounting Type	Rigid
mounting type:	Rigid Base
Nameplate RPM	3,570
NEMA Frame	324TS
Net Weight	616 lbs
No. of Speeds	1
Nominal Efficiency	95.8%
Number of Poles	2
Number of Speeds	1
Overall Length	31.26 ", 31-1/4", 31.26"
overall length (c-dimen.	31.26 in
Phase	3
Product Type	Three Phase
Rotation	Reversible
RPM	3570, 3,570 RPM
Service Factor	1.15
service factor:	1.15
Shaft Dia.	1-7/8"
Shaft Diameter	1.88 ", 1-7/8"
shaft diameter:	1.88 in
Shaft Length	3-3/4", 3.75"
Ship Weight	616 lbs.
Standards	UL Recognized (E49747),.
standards met:	UL, CSA
synchronous rpm:	3600 rpm
Voltage	575
Voltage (AC)	575 VAC
Volts	575
weight:	616 lbs

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
motionindustries.com	04739600	2799.07	1	In Stock	Marathon Electric		2799.07 @ 1
emotorpro.com	GT1133	2986.63	1	In Stock	Marathon	616.0	2986.63 @ 1
apexindustrialautomation.com	GT1133	3053.6	1	23	Marathon		3053.6 @ 1
Galco	GT1133-MARA	3470.0	1	In Stock	Marathon Electric	616.0	3470.0 @ 1
grainger.ca	AOSGT1133	4082.88374986	1	In Stock	MARATHON MOTORS	616.0	4082.88374986 @ 1
Zoro	G7033928	4389.88	1	In Stock	Marathon		4389.88 @ 1
