- mpnGT2432
- brandname: Marathon Electric
- manufacturername: Marathon Electric

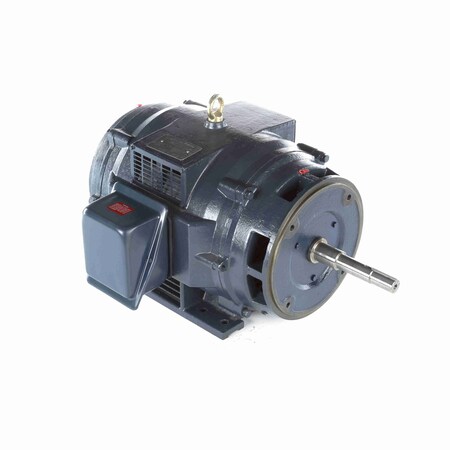

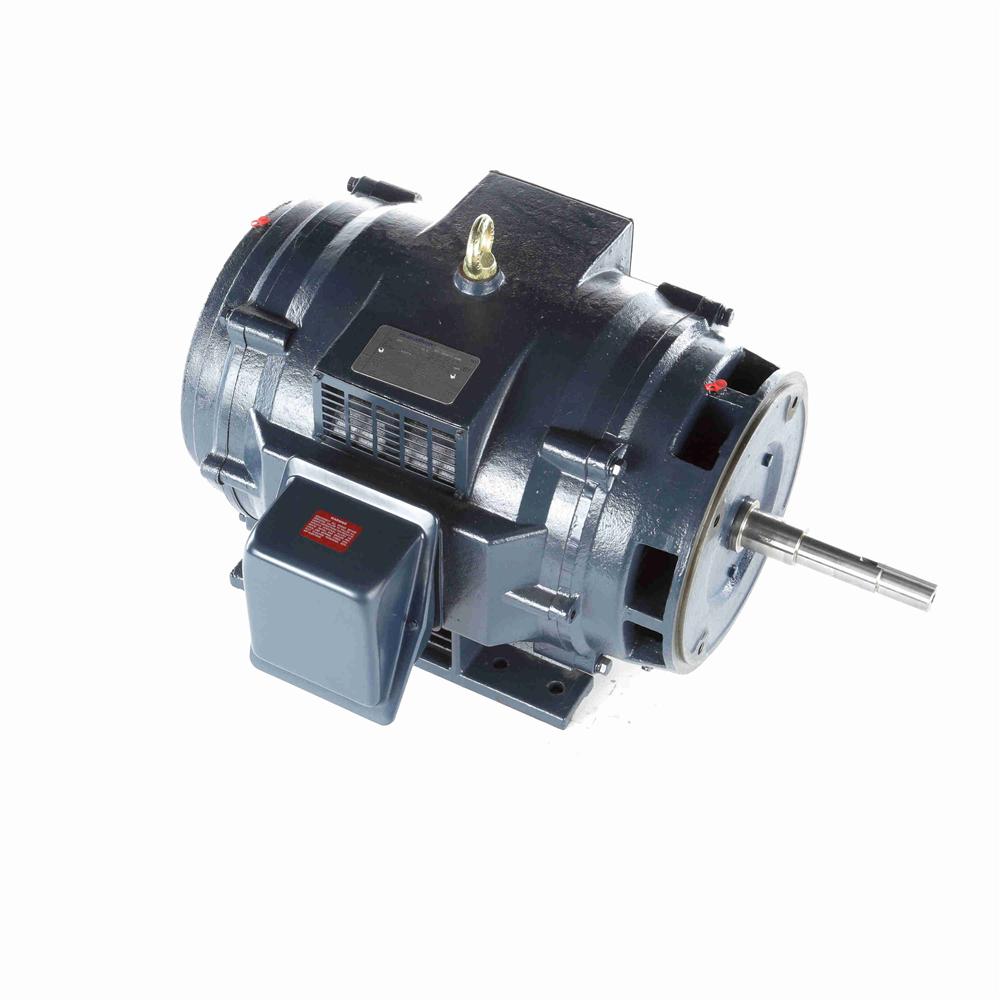

Marathon GT2432 326JPV Frame 326TTDCA6085 TEFC Closed Coupled Pump Motor, 3 Phase, C-Face, Ball Bearing, 30 hp, 1200 RPM, 1 Speed, 230/460 VAC
- Brand: Marathon Electric
- PartNumber: GT2432
- Model: MGT2432
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Marathon Electric
- Label: Marathon Electric
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 326TTDCA6085 |
| Amps | 81/40.5 |
| Approvals | CE, CSA, UR |
| Bearing Type | Ball |
| Bearings | Ball |
| Composition | Cast Iron |
| Country of Origin (subj. | China |
| Duty Cycle | Continuous |
| Efficiency | 0.936 |
| Efficiency % | 93.6 % |
| Enclosure | Drip Proof, DP |
| Enclosure Material | Iron |
| Enclosure Type | ODP (Open Dripproof) |
| Family Series | Marathon Electric Motors |
| Frame | 326JP, 326JPV |
| Frequency | 60 Hz |
| Gross Weight | 0 lbs |
| Horsepower | 30 hp |
| HP | 30 |
| Hz | 60 |
| Insulation Class | F |
| Item Number | GT2432 |
| Kilowatts | 22.4 kW |
| Manufacturer | Marathon Electric |
| Manufacturer Model # | 326TTDCA6085 |
| Manufacturer Part Number | 326TTDCA6085 |
| Maximum Ambient Tempera. | 40? C |
| Mounting | Base |
| Mounting Orientation | Horizontal/Vertical Sha. |
| Mounting Type | Rigid |
| NEMA Frame | 326JPV |
| Net Weight | 0 lbs |
| Number of Poles | 6 |
| Number of Speeds | 1 |
| Overall Length | 33 ", 33" |
| Phase | 3 |
| Product Type | Three Phase |
| Rotation | Reversible |
| RPM | 1,190 RPM, 1100 - 1200,. |
| Service Factor | 1.15 |
| Shaft Diameter | 1-1/4", 1.25 " |
| Shaft Length | 8.12" |
| Ship Weight | 745 lbs. |
| Voltage | 230/460 |
| Voltage (AC) | 230 VAC, 460 VAC |
| Volts | 230, 460 |
