Mersen MPDB69081

B00JBS127C

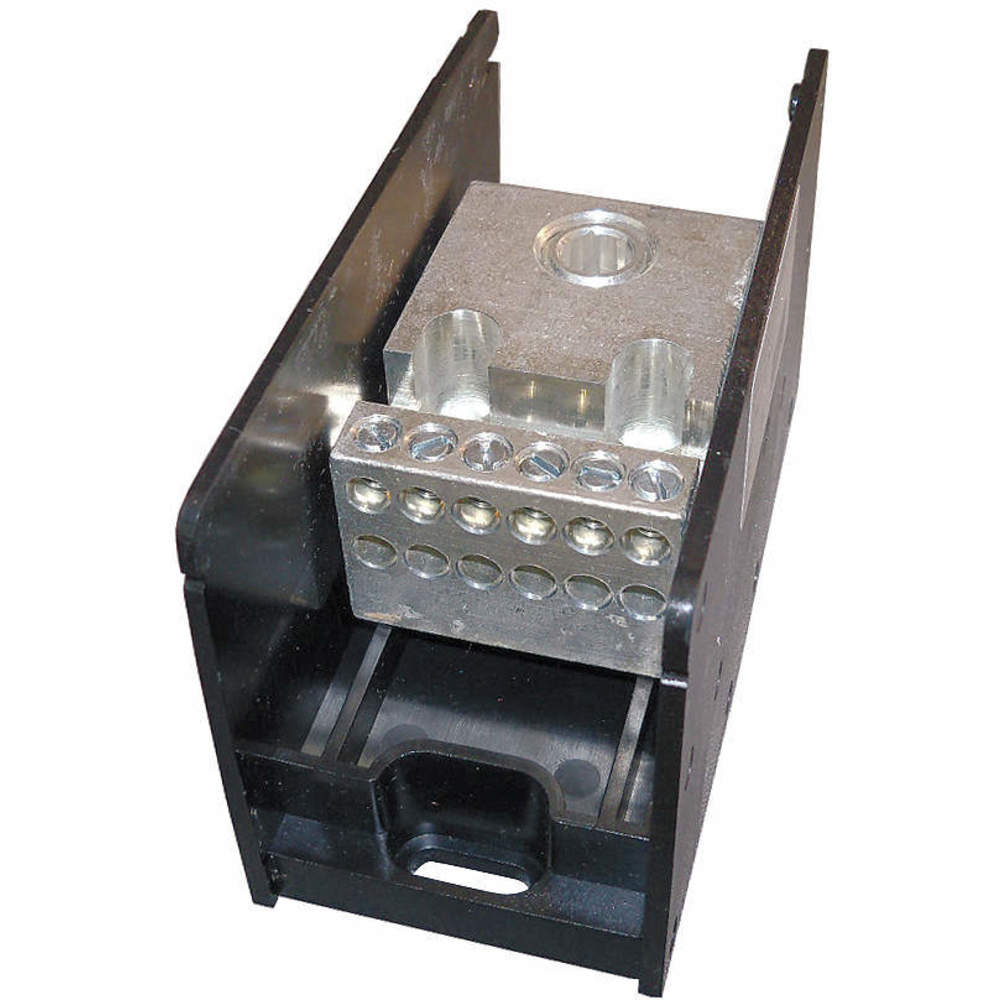

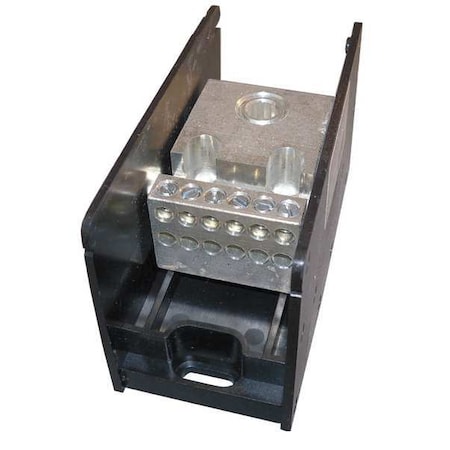

Pwr Dist Block, 350A, 1P, 4Awg-500 MCM, 600V

Pwr Dist Block, 350A, 1P, 4Awg-500 MCM, 600Vzoom

Attributes

Key Value
(1)x 500-4AWG & (12)x 4.Wire Gauge
(1P) Single PolePole
1000VVoltage (V)
2.73''Width (in)
3.55''Height (in)
380AAmperage
5.7''Length (in)
6Case Quantity
782001451097UPC
ApprovalsCSA, UL
Body/Insulating Materia.Material
BrandMersen
ColorBlack
CompositionGlass-Fill Polycarbonate
Current Rating (AC)380 A
Depth3.55 in
Direct Screw MountMounting
Family SeriesMersen, formerly Ferraz.
For additional options .Notes
For Line Aluminum Wire .500 kcmil
For Line Aluminum Wire .4 AWG
For Line Copper Wire Si.500 kcmil
For Line Copper Wire Si.4 AWG
For Load Aluminum Wire .4 AWG
For Load Aluminum Wire .14 AWG
For Load Copper Wire Si.4 AWG
For Load Copper Wire Si.14 AWG
Gross Weight1.9 lbs
Hex/Screw Size & Type (.13/16-16 x 1.06
Hex/Screw Size & Type (.5/16-24 x .38
Hole Diameter (Primary)0.88 in
Hole Diameter (Secondar.0.27 in
Includes CoverNo
Input Wire Range500 kcmil-4 AWG
International ShippingNo
ItemPower Distribution Block
Item NumberMPDB69081
Length5.7 in
Length (Straight Wirewa.5.7 in
Line Side Wire Size Ran.4 AWG - 500 kcmil
Line/Load ConnectionBox Lug/Box Lug
ManufacturerMersen, formerly Ferraz.
Manufacturer Part NumberMPDB69081
MersenBrand
Mounting TypePanel Mount
MPDB69081Stock Code
MpnMPDB69081
Net Weight1.9 lbs
Number of Inputs per Po.1
Number of Outputs per P.12
Number of Poles1
Output Wire Range4-14 AWG
Overall Depth3.55 in
Overall Length5.7 in
Overall Width2.73 in
Product Height3.55 in
Product Length5.7 in
Product SeriesMPDB
Product Width2.73 in
RoHSYes
ROHS Compliant, ULUL Listed
SKUZO-G5258531
SubCategoryElectrical
UL ComplianceUL1953
UPC782001451097
Voltage Rating (AC)600 VAC
Width2.73 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG525853182.9616Mersen7.3882.96 @ 6
thumbzoomsimsupply.comZO-G525853198.2916Mersen98.29 @ 6
thumbzoomsustainablesupply.comC1176274109.216Mersen1.23109.2 @ 6
us.rs-online.com71938008131.7816Mersen131.78 @ 6
thumbzoomRaptor SuppliesAF8ECK133.087558516MERSEN133.0875585 @ 6
thumbzoomGalcoMPDB69081-SHAW151.2366Mersen, formerly Ferraz Shawmu1.9151.23 @ 6
thumbzoombulbspro.comMPDB69081160.316Mersen160.3 @ 6
thumbzoomturtle.comCS MPDB69081172.0816MERSEN172.08 @ 6
