Molex / Waldom 39-29-1027

mpn0039291027
brandname: Molex
manufacturername: Molex

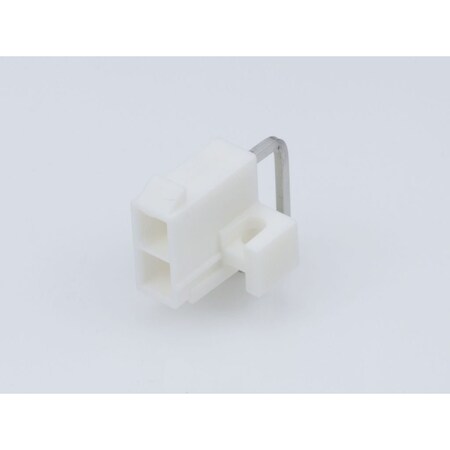

Molex / Waldom 39-29-1027 Connector Power

Brand: Molex / Waldom
PartNumber: 39-29-1027
PackageQuantity: 1
Binding: Electronics
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Applications	General Purpose, Indust.
Base Product Number	003929
Category	Connectors, Interconnec.
Color	Natural
Colour	Natural
Connector	socket
Connector pinout layout	2x1
Connector series	Mini-Fit Jr.
Connector Type	Header
Contact Finish	Matte Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Length - Mating	-
Contact Length - Post	0.142" (3.60mm)
Contact Material	Brass
Contact plating	tinned
Contact Plating Thickne.	2.54 ?m
Contact Shape	Square
Contact Type	Male Pin
Contacts pitch	4.2mm
Current Rating	13 A
Current Rating (Amps)	-
Description	CONN HEADER R/A 2POS
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM13491-ND
Electrical mounting	THT
Fastening Type	Locking Ramp
Features	Mounting Flange
Flammability rating	UL94V-0
Flammability Rating	UL 94V-0
Hole Center to Center	4.2 mm
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.378" (9.60mm)
Insulation Material	Polyamide (PA66), Nylon.
Kind of connector	male
Locking system	latch
Manufacturer	Molex
Manufacturer Product Nu.	0039291027
Manufacturer Standard L.	29 Weeks
Mated Stacking Heights	-
Material	Nylon
Material Flammability R.	UL94 V-0
Max. Temp.	260?C
Max. Voltage	600V
Maximum current	13A
Mechanical mounting	holders
Mfr	Molex
Mounting Type	Through Hole, Right Ang.
Number of Contacts	2
Number of pins	2
Number of Positions	2
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Overall Contact Length	-
Package	Bulk
Part Status	Active
Pitch - Mating	-
Product Status	Active
Row Spacing - Mating	0.165" (4.20mm)
Series	Mini-Fit Jr 5569
Shrouding	Shrouded - 4 Wall
Spatial orientation	angled 90?
Standards	CSA Certified; UL E29179
Style	Board to Cable/Wire
Terminal Finish	Matte Tin Plated
Terminal Type	Through Hole
Termination	Solder
Type of connector	wire-board
Voltage Rating	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
IBS Electronics	39-29-1027	0.2	1	50	MOLEX	0.2 @ 50
Onlinecomponents.com	39-29-1027	0.44	1	2470	MOLEX / WALDOM	0.44 @ 50
Waldom	MOLEX 39-29-1027	0.45	150	289	MOLEX	0.45 @ 150
TTI	39-29-1027	0.547	10	50	Molex	0.547 @ 50
jensentools.com	10188417	0.57	1	139	Molex	0.57 @ 50
NEP Electronics	39-29-1027	0.6029	150	50	Molex	0.6029 @ 150
Hotenda	H1368604	0.67	1	50	Molex	0.67 @ 50
Newark	56H8172	0.73	1	322	MOLEX	0.73 @ 50
Mouser	538-39-29-1027	0.771	1	1485	Molex	0.771 @ 50
TME	MX-39-29-1027	0.871	1	50	MOLEX	0.871 @ 50
Digi-Key	3160150	0.899	1	34848	Molex	0.899 @ 50
RS Delivers	670-5509	1.3824	1	50	Molex	1.3824 @ 50
Radwell	39-29-1027	1.8	1	50	MOLEX	1.8 @ 50
Zoro	G405910550	123.0	1	50	Molex	123.0 @ 50
