- mpn0039291028
- brandname: Molex
- manufacturername: Molex

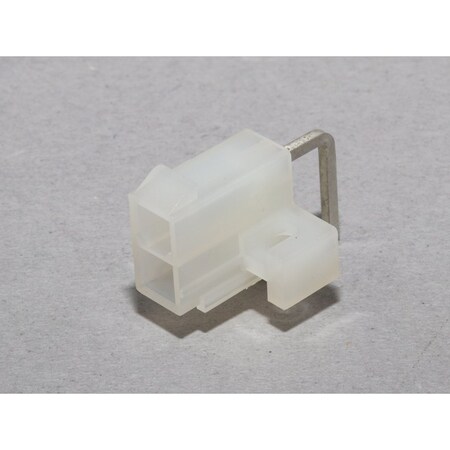

39-29-1028, Conn Power HDR 2 POS Solder RA Thru-Hole 2 Terminal 1 Port Mini-Fit Jr Bag (100 Items)
- Brand: Molex / Waldom
- PartNumber: 39-29-1028
- Model: 39-29-1028
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
| Key | Value |
|---|
| Agency Approvals | CSA ; UL ; TUV |
| Alternate Mfr Part Numb. | 5569-02A1 |
| Alternate Part No. | 538-39-29-1028 |
| Angle | Right Angle |
| Applications | General Purpose, Indust. |
| Base Product Number | 003929 |
| Brand | Molex |
| Category | Connectors, Interconnec. |
| Circuits (Loaded) | 2 |
| Circuits (maximum) | 2 |
| Color | Natural |
| Color - Resin | Natural |
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thicknes. | 100.0?in (2.54?m) |
| Contact Finish Thicknes. | 100.0?in (2.54?m) |
| Contact Gender | Pin (Male) |
| Contact Length - Mating | - |
| Contact Length - Post | 0.142" (3.60mm) |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| CSA | LR19980 |
| Current Rating | 13 A |
| Current Rating (Amps) | - |
| Durability (mating cycl. | 30 |
| Family Name | Mini-Fit Jr. |
| Fastening Type | Locking Ramp |
| Features | Mounting Flange |
| Flammability | 94V-2 |
| Housing Material | Nylon 6/6, Nylon |
| Ingress Protection | - |
| Insulation Color | Natural |
| Insulation Height | 0.378" (9.60mm) |
| Insulation Material | Polyamide (PA66), Nylon. |
| Lock to Mating Part | Yes |
| Manufacturer | Molex |
| Manufacturer Part No. | 39-29-1028 |
| Mated Stacking Heights | - |
| Material - Metal | Brass |
| Material - Plating Mati. | Matte Tin |
| Material - Plating Term. | Matte Tin |
| Material - Resin | Nylon |
| Material Flammability R. | UL94 V-2 |
| Mfr | Molex |
| Mounting Angle | Right |
| Mounting Hole Size | 2.4 mm |
| Mounting Type | Through Hole, Right Ang. |
| Number of Circuits | 2 |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Positions Loa. | All |
| Number of Rows | 2 |
| Operating Temperature | -40 to +105 ?C, - |
| Orientation | Right Angle |
| Overall Contact Length | - |
| Overall Length | 15.4 mm |
| Package | Bulk |
| Packaging | Bulk |
| Part # Aliases | 0039291028 5569-02A1 |
| Part Status | Active |
| PCB Locator | Yes |
| PCB Retention | Yes |
| PCB Thickness - Recomme. | 1.78mm |
| Pin Length | 3.5 mm |
| Pin Spacing | 0.165 in |
| Pitch | 4.2 mm, 4.20 mm (0.165") |
| Pitch - Mating | - |
| Pitch - Mating Interface | 4.20mm |
| Pitch - Termination Int. | 4.20mm |
| Plating Material | Matte Tin |
| Plating min - Mating | 2.540?m |
| Polarized to PCB | Yes |
| Primary Type | Soft Shell |
| Process Temperature max. | 260 |
| Product Category | Headers & Wire Housings |
| Product Header | Mini-Fit Jr.? Wire-to-B. |
| Product Status | Active |
| Product Type | Header Assemblies |
| Row Spacing | 5.5 mm |
| Row Spacing - Mating | 0.165" (4.20mm) |
| Series | Mini-Fit Jr 5569, 5569,. |
| Shrouding | Shrouded - 4 Wall |
| Special Features | Low-Halogen |
| Strain Relief | Low Profile |
| Style | Board to Cable/Wire |
| Temperature Range - Ope. | -40? to +105?C |
| Termination | Solder, Through Hole |
| Termination Interface: . | Through Hole |
| Termination Style | Through Hole |
| Tradename | Mini-Fit Jr. |
| Type | Right Angle Header, Pin. |
| Voltage - Maximum | 600V |
| Voltage Rating | -, 600 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Freelance Electronics | 39-29-1028 | 0.22532 | 1 | 100 | | MOLEX | | 0.22532 @ 100 |
| Onlinecomponents.com | 39-29-1028 | 0.309 | 1 | 101 | | MOLEX / WALDOM | | 0.309 @ 100 |
| Avnet | 0039291028 | 0.334 | 1 | 4125 | | Molex | | 0.334 @ 100 |
| Waldom | MOLEX 39-29-1028 | 0.34 | 200 | 5406 | | MOLEX | | 0.34 @ 200 |
| Power and Signal Group | 0039291028 | 0.3706 | 600 | 100 | | Molex | | 0.3706 @ 600 |
 | jensentools.com | 10188418 | 0.43 | 1 | 5186 | | Molex | | 0.43 @ 100 |
 | NEP Electronics | 39-29-1028 | 0.4382 | 200 | 5186 | | Molex | | 0.4382 @ 200 |
 | Newark | 98K8964 | 0.476 | 1 | 5915 | | MOLEX | | 0.476 @ 100 |
| Mouser | 538-39-29-1028 | 0.522 | 1 | 3447 | | Molex | | 0.522 @ 100 |
| Digi-Key | 61422 | 0.5579 | 1 | 100 | 208 | Molex | | 0.5579 @ 100 |
| us.rs-online.com | 70190884 | 0.56 | 5 | 100 | | Molex Incorporated | | 0.56 @ 100 |
| Arrow | 39-29-1028 | 0.657 | 1 | 100 | | Molex | | 0.657 @ 100 |
| RS Delivers | 215-5815P | 0.744 | 1 | 11600 | | Molex | | 0.744 @ 100 |
 | TME | MX-5569-02A1 | 0.761 | 1 | 154 | | MOLEX | | 0.761 @ 100 |
 | Radwell | 39-29-1028 | 1.2 | 1800 | 100 | | MOLEX | | 1.2 @ 1800 |
 | swatee.com | 39-29-1028 | 1.27 | 1 | 962 | | Molex | | 1.27 @ 100 |
| AmazonSC | B07QQDFW1P | 74.11 | 1 | 100 | | Molex / Waldom | | 74.11 @ 100 |
 | Zoro | G800417036 | 144.0 | 1 | 100 | | Molex | | 144.0 @ 100 |
