Molex / Waldom 39-29-1107

mpn0039291107
brandname: Molex
manufacturername: Molex

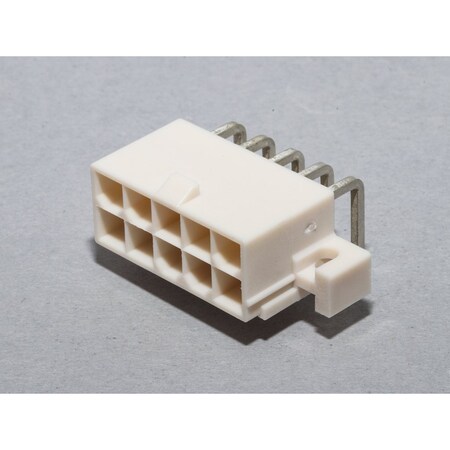

39-29-1107, Conn Power HDR 10 POS 4.2mm Solder RA Thru-Hole 10 Terminal 1 Port Mini-Fit Jr Bag (25 Items)

39-29-1107, Conn Power HDR 10 POS 4.2mm Solder RA Thru-Hole 10 Terminal 1 Port Mini-Fit Jr Bag (25 Items)

zoom

Brand: Molex / Waldom
PartNumber: 39-29-1107
Model: 39-29-1107
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Mfr Part Numb.	5569-10A1-210
Applications	General Purpose, Indust.
Base Product Number	003929
Category	Connectors, Interconnec.
Color	Natural
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Length - Mating	-
Contact Length - Post	0.142" (3.60mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	13 A
Current Rating (Amps)	-
Description	CONN HEADER R/A 10POS 4.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM9157-ND
Family Name	Mini-Fit Jr.
Fastening Type	Locking Ramp
Features	Mounting Flange
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.378" (9.60mm)
Insulation Material	Polyamide (PA66), Nylon.
Manufacturer	Molex
Manufacturer Product Nu.	0039291107
Manufacturer Standard L.	16 Weeks
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Type	Through Hole, Right Ang.
Number of Circuits	10
Number of Contacts	10
Number of Positions	10
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Orientation	Right Angle
Overall Contact Length	-
Package	Bulk
Package Quantity	1
Pitch	4.20 mm (0.165")
Pitch - Mating	0.165" (4.20mm)
Plating Material	Matte Tin
Primary Type	Soft Shell
Product Status	Active
Row Spacing - Mating	0.165" (4.20mm)
Series	Mini-Fit Jr 5569, 5569 .
Shrouding	Shrouded - 4 Wall
Special Features	Low-Halogen
Style	Board to Cable/Wire
Termination	Solder
Type	Right Angle Header
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Avnet	0039291107	1.143	450	450		Molex		1.143 @ 450
	Power and Signal Group	0039291107	1.2415	150	25		Molex		1.2415 @ 150
	NEP Electronics	39-29-1107	1.6471	45	25		Molex		1.6471 @ 45
	Newark	01AH1115	1.77	1	25		MOLEX		1.77 @ 25
	us.rs-online.com	70374070	1.96	1	25		Molex Incorporated		1.96 @ 25
	Digi-Key	669802	2.242	1	4689		Molex		2.242 @ 25
	Arrow	39-29-1107	2.668	1	709		Molex		2.668 @ 25
	RS Delivers	670-5518	3.6	1	25		Molex		3.6 @ 25
	Zoro	G4033912	98.55	1	25		Molex		98.55 @ 25
