Molex / Waldom 39-29-1128

B00GQQPFPM

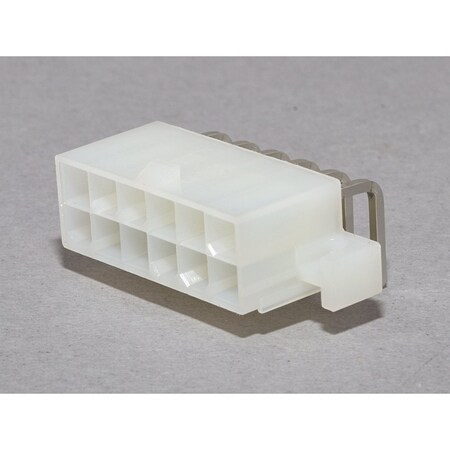

Molex / Waldom 39-29-1128 Connector Power

Molex / Waldom 39-29-1128 Connector Powerzoom

Attributes

Key Value
Agency ApprovalsCSA ; UL ; TUV
Alias39291128
Alternate Mfr Part Numb.5569-12A1
AngleRight Angle
ApplicationsGeneral Purpose, Indust.
Base Product Number003929
CategoryConnectors, Interconnec.
Circuits (maximum)12
ColorNatural
Color - ResinNatural
ColourNatural
Connectorsocket
Connector pinout layout2x6
Connector seriesMini-Fit Jr.
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Length - Mating-
Contact Length - Post0.142" (3.60mm)
Contact MaterialBrass
Contact PlatingTin
Contact platingtinned
Contact ShapeSquare
Contact TypeMale Pin
Contacts pitch4.2mm
CSALR19980
Current Rating13 A
Current Rating (Amps)-
DescriptionCONN HEADER R/A 12POS 4.
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberWM3905-ND
Duration at Max. Proces.5
Electrical mountingTHT
Family NameMini-Fit Jr.
Fastening TypeLocking Ramp
FeaturesMounting Flange
Flammability94V-2
Flammability ratingUL94V-2
Housing MaterialNylon 6/6
Ingress Protection-
Insulation ColorNatural
Insulation Height0.378" (9.60mm)
Insulation MaterialPolyamide (PA66), Nylon.
Kind of connectormale
Lock to Mating PartYes
Locking systemlatch
ManufacturerMOLEX
Manufacturer Product Nu.0039291128
Manufacturer Standard L.17 Weeks
Mated Stacking Heights-
Material - Plating Mati.Matte Tin
Material - Plating Term.Matte Tin
Material - ResinNylon
Material Flammability R.UL94 V-2
Max. Cycles at Max. Pro.1
Maximum current9A
Mechanical mountingholders
MfrMOLEX
Mounting Hole Size2.4 mm
Mounting TypeThrough Hole, Right Ang.
Number of Circuits12
Number of Contacts12
Number of pins12
Number of Positions12
Number of Positions Loa.All
Number of Rows2
Operating Temperature-40 to +105 ?C, -
OrientationRight Angle
Overall Contact Length-
Overall Length36.4 mm
PackageBulk
PCB LocatorYes
PCB RetentionYes
PCB Thickness - Recomme.1.78mm
Pin Length3.5 mm
Pin Spacing0.165 in
Pitch4.20 mm (0.165")
Pitch - Mating0.165" (4.20mm)
Pitch - Mating Interface4.20mm
Plating MaterialMatte Tin
Plating min - Mating2.540?m
Plating min - Terminati.2.540?m
Polarized to PCBYes
Primary TypeSoft Shell
Product HeaderMini-Fit Jr.? Wire-to-B.
Product StatusActive
Row Spacing - Mating0.165" (4.20mm)
SeriesMini-Fit Jr 5569, 5569 .
ShroudedFully
ShroudingShrouded - 4 Wall
Spatial orientationangled 90?
Special FeaturesLow-Halogen
Strain ReliefLow Profile
StyleBoard to Cable/Wire
Temperature Range - Ope.-40? to +105?C
TerminationSolder, Through Hole
Termination Interface: .Through Hole
TypeRight Angle Header
Type of connectorwire-board
ULE29179
Voltage - Maximum600V
Voltage Rating-, 600 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Component Sense0392911280.758338471Molex0.758 @ 33
us.rs-online.com701906040.8125Molex Incorporated0.8 @ 25
Power and Signal Group00392911280.84115025Molex0.841 @ 150
Waytek387451.01525Molex1.01 @ 25
Avnet00392911281.1061706Molex1.106 @ 25
WaldomMOLEX 39-29-11281.135025MOLEX1.13 @ 50
thumbzoomTMEMX-5569-12A11.35125MOLEX1.35 @ 25
thumbzoomjensentools.com101884201.511500Molex1.51 @ 25
thumbzoomNewark98K89691.551779MOLEX1.55 @ 25
thumbzoomNEP Electronics39-29-11281.573550500Molex1.5735 @ 50
Bristol Electronics39-29-11281.725125MOLEX1.725 @ 25
HotendaH13001531.7472125Molex1.7472 @ 25
Arrow39-29-11281.86211347Molex1.862 @ 25
Mouser538-39-29-11281.93125Molex1.93 @ 25
thumbzoomDigi-Key614372.24813676Molex2.248 @ 25
RS Delivers215-5871P2.9161149Molex2.916 @ 25
thumbzoomRadwell39-29-11283.5125MOLEX3.5 @ 25
thumbzoomZoroG50041535687.5125Molex87.5 @ 25
