39-29-1148

B00LVCSDPU

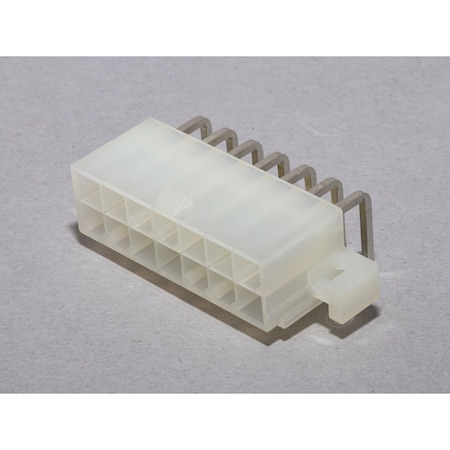

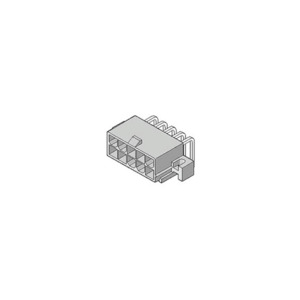

Headers & Wire Housings 14 CKT R/A HEADER (5 pieces)

Headers & Wire Housings 14 CKT R/A HEADER (5 pieces)zoom

Attributes

Key Value
Alternate Part No.538-39-29-1148
BrandMolex
Circuits (Loaded)14
ColorNatural
Color - ResinNatural
Contact GenderPin (Male)
Contact MaterialBrass
Contact PlatingTin
CSALR19980
Current - Maximum per C.13.0A
Current Rating13 A
Durability (mating cycl.30
Duration at Max. Proces.5
Flammability94V-2
Housing MaterialNylon
Lock to Mating PartYes
ManufacturerMolex
Manufacturer Part No.39-29-1148
Material - MetalBrass
Material - Plating Mati.Matte Tin
Material - Plating Term.Matte Tin
Material - ResinNylon
Max. Cycles at Max. Pro.1
Mounting AngleRight
Number of Positions14
Number of Rows2
PackagingBulk
Part # Aliases0039291148 5569-14A1
PCB LocatorYes
PCB Thickness - Recomme.1.78mm
Pitch4.2 mm
Pitch - Mating Interface4.20mm
Pitch - Termination Int.4.20mm
Plating min - Mating2.540?m
Polarized to Mating PartYes
Product CategoryHeaders & Wire Housings
Product TypeHeader Assemblies
Row Spacing5.5 mm
Series5569
Temperature Range - Ope.-40? to +105?C
Termination Interface: .Through Hole
Termination StyleThrough Hole
TradenameMini-Fit Jr.
TypePin Header
ULE29179
Voltage - Maximum600V
Voltage Rating600 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Arrow39-29-11480.80813791Molex0.808 @ 1
WaldomMOLEX 39-29-11481.165015857MOLEX1.16 @ 50
Onlinecomponents.com39-29-11481.31267MOLEX / WALDOM1.3 @ 1
Power and Signal Group00392911481.329310075Molex1.3293 @ 100
thumbzoomjensentools.com101884221.55116169Molex1.55 @ 1
thumbzoomNEP Electronics39-29-11481.60295016169Molex1.6029 @ 50
HotendaH13001992.29143Molex2.29 @ 1
thumbzoomNewark98K90012.33175MOLEX2.33 @ 1
thumbzoomTMEMX-5569-14A12.481278MOLEX2.48 @ 1
thumbzoomswatee.com39-29-11483.281237Molex3.28 @ 1
thumbzoomRadwell39-29-11485.0175MOLEX5.0 @ 1
RS Delivers447-59317.31281170Molex7.3128 @ 1
thumbzoomZoroG900415840107.55075Molex107.5 @ 50
