- mpnPV10-14R-D
- brandname: Panduit Corp
- manufacturername: Panduit Corp

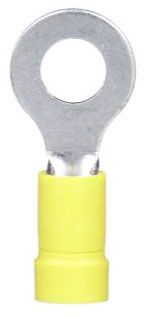

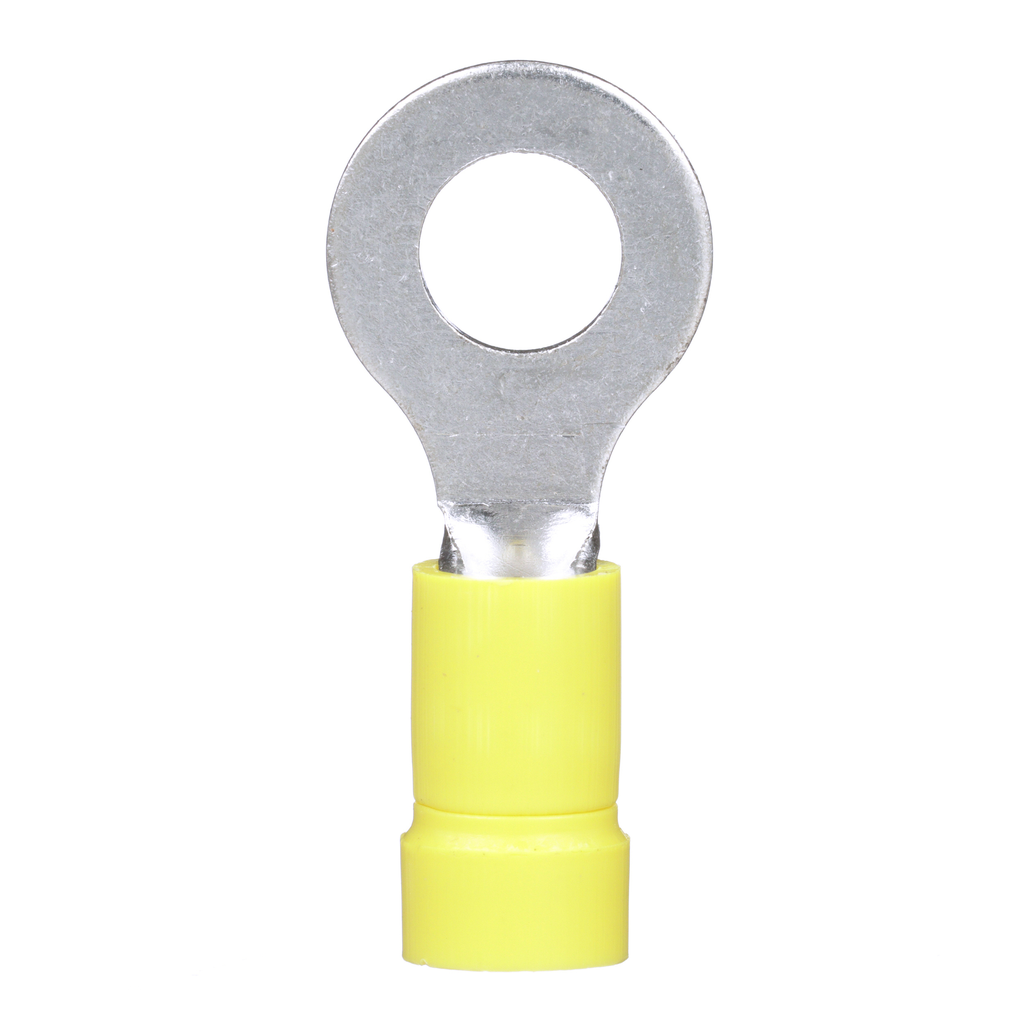

Panduit PV10-14R-D Ring Terminal, 12-10 AWG, 1/4" Stud, Vinyl Insulated, Funnel Entry (Pack of 500)
- Brand: Panduit
- PartNumber: PV10-14R-D
- Model: PV10-14R-D
- Size: 500-Pack
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 12 - 10 |
| Angle | Straight |
| Approvals | CSA, UL |
| ARRA Compliant | Y |
| AWG Range | #10 |
| Barrel Type | Funnel |
| Base Material | Copper |
| Base Product Number | PV10 |
| Brand | Pan-Term? |
| Buy American Compliant | Y |
| California Pro65 Cancer | No |
| Category | Connectors, Interconnec. |
| Color | Copper, Yellow |
| Color Code | Yellow |
| Color Family | Yellow |
| Contact Finish | Tin, 0.225" (5.72mm) |
| Contact Material | Copper, Tin |
| Contact Plating | Tin |
| Country of Origin | MX - Mexico |
| Country of Origin 2Digit | MX |
| Description | CONN RING CIRC 10-12AWG. |
| Detailed Description | Ring Terminal Connector. |
| Digi-Key Part Number | 298-10070-ND |
| EAN | 00074983801350 |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Features | Yellow, Brazed Seam |
| Finish | Tin-Plated |
| Finish/Coating | Tin-Plated |
| Flammability Rating | UL94V-0 |
| For Use With | CT-100, CT-1550, CT-155. |
| Gross Weight | 0 lbs |
| GTIN Package | 00074983801350 |
| Hazardous Material Flag | N |
| Insulated | Insulated |
| Insulation | Insulated, Brazed Seam |
| Insulation Color | Insulation Color |
| Insulation Diameter | 0.225" (5.72mm), Vinyl,. |
| Insulation Material | Vinyl |
| Insulation Type | Insulation Type, Vinyl |
| Item Number | PV10-14R-D |
| Lead Content Indicator | N |
| Length | 1.2" |
| Length - Overall | Free Hanging (In-Line),. |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Part Number | PV10-14R-D |
| Manufacturer Product Nu. | PV10-14R-D |
| Manufacturer Standard L. | 2 Weeks |
| Material | Copper, Vinyl |
| Material - Insulation | Vinyl |
| Max Temp | 221 ?F |
| Maximum Copper Conducto. | #10 |
| Maximum Metric Conducto. | 6 |
| Maximum Operating Tempe. | 105 |
| Maximum Operating Tempe. | 221 |
| Maximum Voltage (kV) | 0.6 |
| Maximum Voltage (V) | 600 |
| Maximum Wire Insulation. | 0.23 |
| Maximum Wire Insulation. | 5.8 |
| Maximum Wire Size (AWG) | #10 |
| Mercury Content Indicat. | No |
| Mfr | Panduit Corp |
| Min Order Qty | 500 |
| Min. Order UOM | Piece |
| Minimum Copper Conducto. | #12 |
| Minimum Metric Conducto. | 4 |
| Minimum Wire Size (AWG) | #12 |
| Mounting Type | Free Hanging (In-Line),. |
| Net Weight | 0 lbs |
| Overall Length | 1.23 ", 1.23 in |
| Overall Length (In.) | 1.23 |
| Overall Length (mm) | 31.2 |
| Overall Width | 0.52 " |
| Overall Width (In.) | 0.52 |
| Overall Width (mm) | 13.2 |
| Package | Active, Bulk |
| Package Quantity | 500 |
| Packaging | 50 Per Package |
| Packaging Type | Box |
| Pallet Quantity | 120,000 |
| Pallet Volume | 0.000000 |
| Pallet Weight | 684.0000 |
| Part Status | Circular |
| Plating Material | Tin |
| Product Segment | IEI |
| Product Series | Pan-Term Terminals |
| Product Status | Active |
| Product Type | Ring Terminal |
| Rated Voltage | 600V |
| REACH Status | False |
| Restricted Use of Hazar. | N |
| RoHS Compliant | Compliant, Yes |
| Seam Type | Brazed |
| Series | Bulk, Pan-Term?, Pan-Te. |
| Special Features | Brazed Seam, Barrel |
| Standard Carton Volume . | 0.0000 |
| Standard Carton Weight . | 0.0000 |
| Standard Package Volume. | 0.5261 |
| Standard Package Weight. | 2.8500 |
| Standards Met | cULus Listed 587H E5216. |
| Std Ctn Qty | 0 |
| Std Package Height In | 3.45 |
| Std Package Height MM | 87.63 |
| Std Package Length In | 8.15 |
| Std Package Length MM | 207.01 |
| Std Package Width In | 4.4 |
| Std Package Width MM | 111.76 |
| Std. Pkg. Qty. | 500 |
| Std. Pkg. UOM | Piece |
| Stud Hole Size (In.) | 1/4" |
| Stud Hole Size (mm) | 6 |
| Stud Size | Stud Size, 1/4 in, M6 (. |
| Stud/Tab Size | 0.040" (1.02mm), 1/4 St. |
| Sub Brand | Pan-Term? |
| Terminal Material | Copper |
| Terminal Type | 1/4 Stud, Ring, Circular |
| Termination | Crimp, 10-12 AWG |
| Thickness | 0.520" (13.21mm), 0.040. |
| Tongue Thickness (In.) | 0.04 |
| Tongue Thickness (mm) | 1 |
| Tongue Width (In.) | 0.52 |
| Tongue Width (mm) | 13.2 |
| Tongue Width - Wire Con. | 0.38 in |
| UNSPSC | 39121409 |
| UOM EA PK | PK |
| UPC | 07498380135 |
| UPC Code | 074983801350 |
| Use With | CT-100, CT-1550, CT-155. |
| Volts | 600 V |
| Volts AC | 600 |
| Width | 0.52 in., 0.5" |
| Width - Outer Edges | 0.520" (13.21mm), 1.230. |
| Wire Gauge | Insulated, 10-12 AWG |
| Wire Range | Wire Range, 12 AWG to 1. |
| Wire Size | 12-10 AWG, 10-12 AWG |
| Wire Size (AWG) | 10 AWG, 11 AWG, 12 AWG |
| Wire Strip Length | 0.313 " |
| Wire Strip Length (In.) | 5/16, 45062 |
| Wire Strip Length (mm) | 7.9 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Hotenda | H1656400 | 0.3085 | 1 | 100 | | Panduit | | 0.3085 @ 100 |
 | electricalparts.com | PV10-14R-D | 0.3248 | 1 | 100 | | Panduit | | 0.3248 @ 100 |
 | cbtcompany.com | PV10-14R-D | 0.34 | 1 | 100 | | PANDUIT | | 0.34 @ 100 |
| Onlinecomponents.com | PV10-14R-D | 0.357 | 1 | 1646 | | PANDUIT | | 0.357 @ 100 |
 | Galco | PV10-14R-D-PNDT | 0.36 | 500 | 100 | | Panduit | | 0.36 @ 500 |
 | mecampbell.com | PANPV10-14R-D | 0.37 | 500 | 100 | 151 | Panduit | | 0.37 @ 500 |
 | Digi-Key | 452046 | 0.3955 | 1 | 4175 | | Panduit Corp | | 0.3955 @ 100 |
 | mayerelectric.com | PANPV1014RD | 0.4 | 1 | 100 | | PANDUIT | 2.85 | 0.4 @ 100 |
| Airline Hydraulics | PANDUIT PV10-14R-D | 0.43 | 1 | 100 | | Panduit Corp | | 0.43 @ 100 |
 | Platt.com | 0615968 | 0.43 | 1 | 100 | | Panduit | | 0.43 @ 100 |
 | Newark | 13AC4752 | 0.517 | 1 | 703 | | PANDUIT | | 0.517 @ 100 |
| us.rs-online.com | 70044662 | 129.09 | 1 | 100 | | Panduit | | 129.09 @ 100 |
 | alldataresource.com | PAN-PV10-14RD | 167.48 | 1 | 100 | | Panduit | | 167.48 @ 100 |
 | Zoro | G0483327 | 173.99 | 1 | 100 | | Panduit | 2.85 | 173.99 @ 100 |
 | gordonelectricsupply.com | PV10-14R-D | 190.5 | 1 | 100 | 12 | PANDUIT | | 190.5 @ 100 |
 | jensentools.com | 10017258 | 199.96 | 1 | 100 | | Panduit | | 199.96 @ 100 |
 | Raptor Supplies | AH8YCP | 227.49246 | 1 | 100 | | PANDUIT | | 227.49246 @ 100 |
| steinerelectric.com | 6781 | 364.38 | 1 | 100 | | Panduit | | 364.38 @ 100 |
 | turtle.com | PAN PV10-14R-D | 424.33 | 1 | 100 | | Panduit | | 424.33 @ 100 |
| Graybar | 88200605 | 470.288 | 500 | 2000 | | Panduit | | 470.288 @ 500 |
