Unknown CML10Z

mpnCML10Z
brandname: QA1
manufacturername: QA1

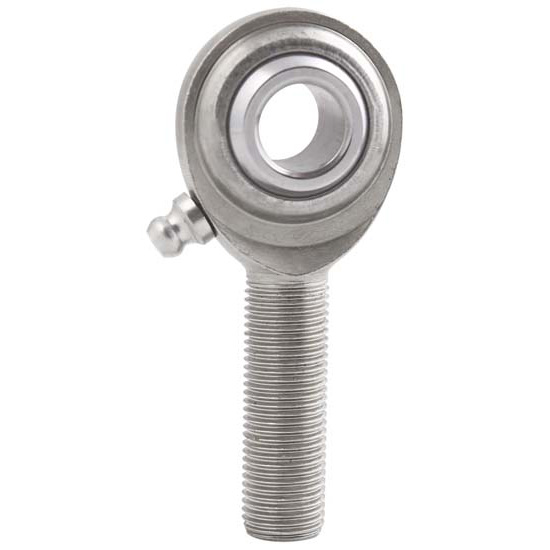

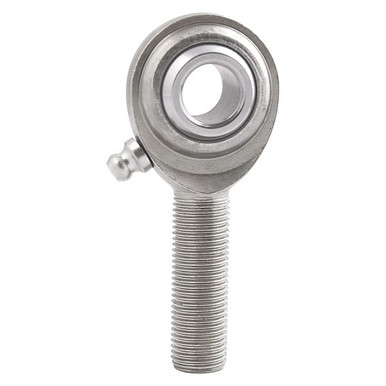

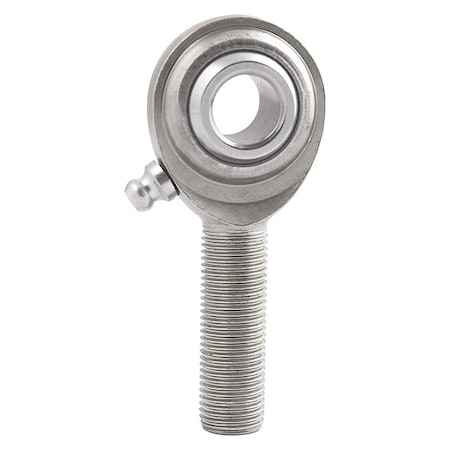

QA1 Precision Products CML10Z ROD END (C) 2-PC CARBONM-L 5/8-5/8 ZERK

Brand: Unknown
PartNumber: CML10Z
Color: Natural
PackageQuantity: 1
Manufacturer: QA1 Precision Products
Label: QA1 Precision Products

Attributes

Key	Value
Ball Diameter	1.125 in
Ball Material	52100 Steel Spherical
Ball Stud Center Length	2 5/8 in
Ball Stud Material	Carbon Steel
Ball Stud Thread Direct.	Left Hand
Ball Stud Thread Length	1 5/8 in
Ball Stud Thread Size	5/8-18
Ball Width	3 Inch \| 19.05 Millimet.
Bore	0.625 Inch \| 15.875 Mil.
Bore Diameter	5/8 in
Bore Diameter Tolerance	-0.005/+0.0025 in
Brand	Qa1, QA1 PRECISION PROD
Category	Spherical Plain Bearing.
Closure	Not Applicable
Current Stock	22
EAN	0806990042972
Enclosure	Open
Finish	Zinc Plated
For Environment	Not Applicable
Harmonized Tariff Code	8483.30.80.55
Head Outside Diameter	1 1/2 in
Head Width	0.484 mm
Hole Diameter	0.625"
Housing Width	0.484 Inch \| 12.294 Mil.
Inch - Metric	Inch
Inner Ring Width	0.75 in
International Shipping	No
Item	Commercial Greaseable R.
Lead Time	Expected to ship in 1-2.
Load Capacity	11385 lbs.
Load Direction	Radial
Lubrication Openings	Grease Fitting
Manufacturer Name	QA1 PRECISION PRODUCTS .
Material - Ball	Steel
Material - Liner	Not Applicable
Material - Outer Member	Steel
Material Type	Steel
Maximum Temperature	500 Degrees F
MFG. Part #	CML10Z
Mounting Thread	5/8-18 UNF
Mpn	CML10Z
Other Features	2 Piece \| Chrome Plated.
Overall Length	3 3/8 in
price	$ 13.26 / each
Race Material	Not Applicable
Relubricatable	Yes
Resistance Properties	Corrosion Resistant
Rod End Attachment	Male Threads/Eyelet
Rod End Construction	2-piece
Rod End Head Width	0.75"
Rod End Misalign Angle	26 degrees
Rod End Type	Spherical Rod End
Seal Type	Open
Shank Thread Length	1 5/8 in
Shank Thread Size	5/8"-18
SKU	ZO-G110191749
Sold in Quantity	Each
Stud Profile	Male
SubCategory	Power Transmission
Thread Direction	Left Hand
Thread Length	1.625"
Thread Pitch	5/8"-18
Thread Type	LH Male
title	CML10Z
UNSPSC	31171508
UPC	806990170484
Weight / kgm	0.159
Weight / LBS	0.36

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Summit Racing	QA1-CML10Z	9.99	1	In Stock	QA1		9.99 @ 1
speedwaymotors.com	721CML10Z	10.99	1	In Stock	QA1		10.99 @ 1
Lily Bearing	CML10Z	11.27	1	In Stock	QA1 PRECISION PROD	0.3498	11.27 @ 1
us.rs-online.com	72210333	12.72	1	In Stock	QA1		12.72 @ 1
Zoro	G110191749	12.89	1	In Stock	Qa1	0.36	12.89 @ 1
Jegs	122-CML10Z	15.99	1	In Stock	QA1		15.99 @ 1
motionindustries.com	06464140	20.54	1	In Stock	QA1 Precision Products		20.54 @ 1
simsupply.com	ZO-G110191749	21.23	1	22	Qa1		21.23 @ 1
