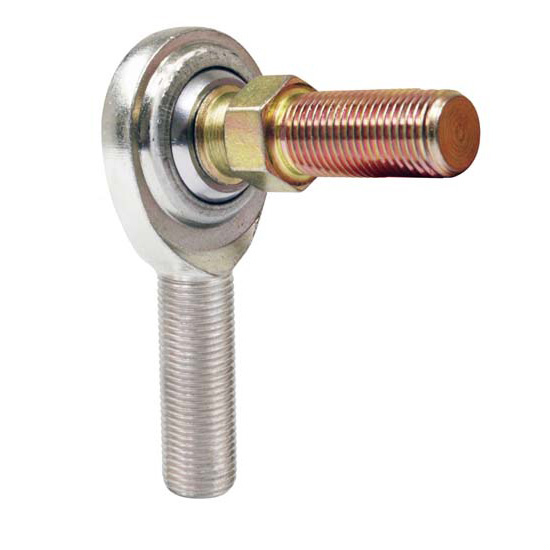

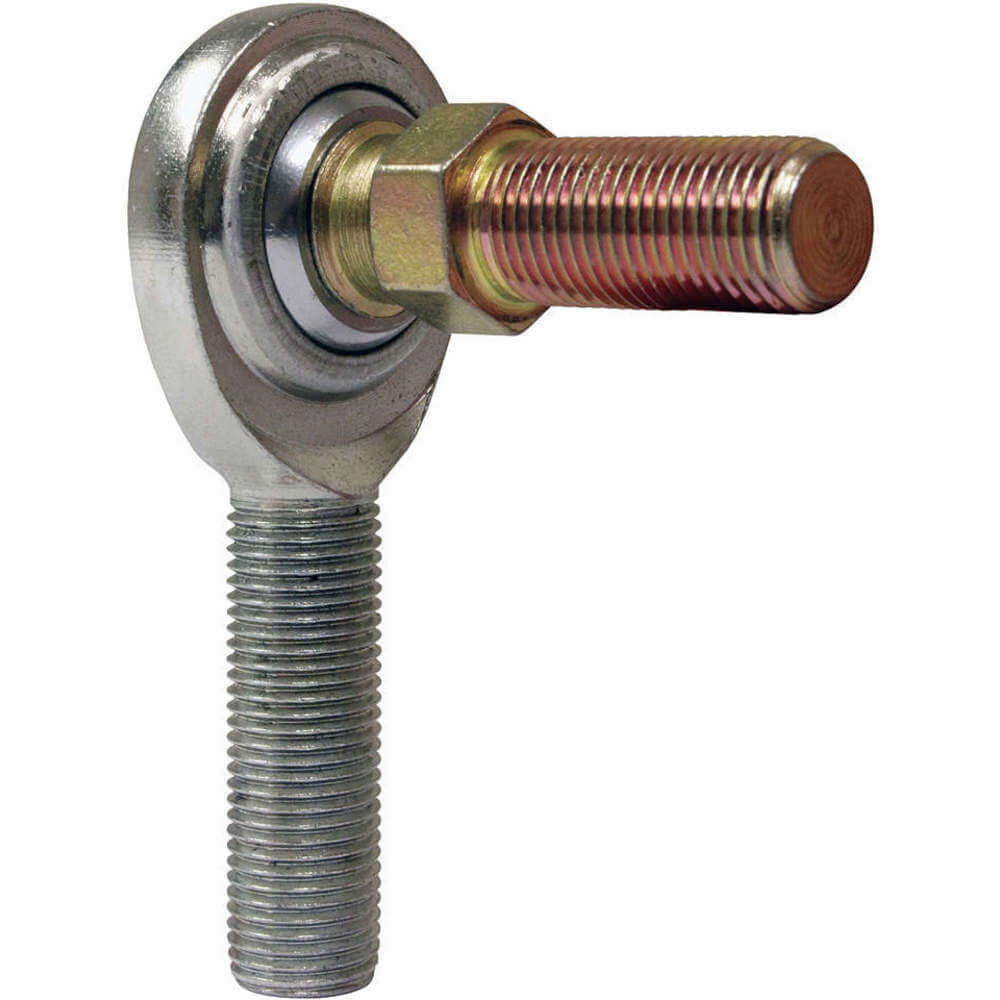

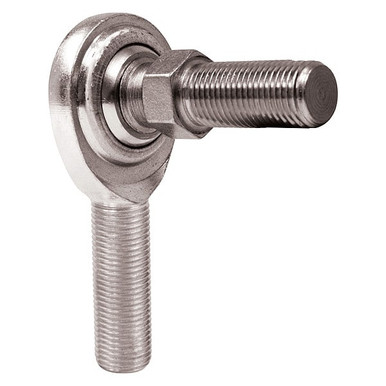

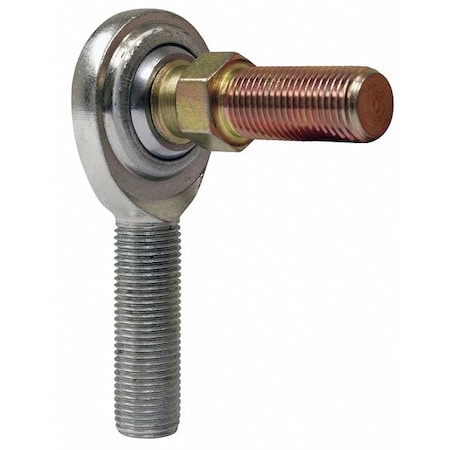

Male Stud Rod End, LH, 3/4-16

Male Stud Rod End, LH, 3/4-16zoom

Attributes

Key Value
ApplicationLight Duty
Ball52100 Steel Spherical
Ball Diameter1.312 in
Ball MaterialAlloy Steel
Ball Material Grade52100
Ball Stud Center Length3 in
Ball Stud MaterialCarbon Steel
Ball Stud Thread Direct.Left Hand
Ball Stud Thread Length1 5/8 in
Ball Stud Thread Size3/4"-16
Ball Width7/8 Inch | 22.225 Milli.
Bore0.75 Inch | 19.05 Milli.
Bore Diameter3/4 in
Bore Diameter Tolerance+0.0025/-0.0005 in
BrandQA1 PRECISION PROD, Qa1
CategorySpherical Plain Bearing.
Current Stock22
Dimension A3/4"-16
Dimension B1.188 in
Dimension C1.812 in
Dimension E1.75 in
Dimension G2.875 in
Dimension H1.75 in
Dimension J3.75 in
EAN806990043177
EnclosureOpen
FinishZinc Plated
GTIN Code806990001993
Harmonized Tariff Code8483.30.80.55
Head Outside Diameter1 3/4 in
Head Width0.593 in
Hole Diameter0.750"
Housing MaterialCarbon Steel
Housing Material FinishChrome Plated
Housing Width0.593 Inch | 15.062 Mil.
Inch - MetricInch
Inner Ring Width0.875 in
International ShippingNo
ItemSpherical Rod End
Lead TimeExpected to ship in 1-2.
Load Capacity15894 lbs.
Manufacturer NameQA1 PRECISION PRODUCTS
Material - BallSteel
Material - LinerNot Applicable
Material - Outer MemberSteel
Material TypeSteel
Maximum Ball Swivel24 Degrees
MFG. Part #CML12S
Mounting Thread3/4-16 UNF
MpnCML12S
Other Features2 Piece | Chrome Plated.
Overall Length3 3/4 in
price$ 25.17 / each
Race MaterialNot Applicable
RelubricatableNo
Resistance PropertiesCorrosion Resistant
Rod End AttachmentMale Threads/Stud
Rod End Construction2-piece
Rod End Head Width0.875"
Rod End Misalign Angle24 degrees
Rod End TypeSpherical Rod End
Seal TypeOpen
Self Lubricating BearingYes
Shank Thread DirectionLeft Hand
Shank Thread GenderMale
Shank Thread Length1 3/4 in
Shank Thread Size3/4"-16
SKUZO-G5773826
StandardsISO Certified 9001
Static Radial Load Capa.15,894 lbf
Stud Length1.812 in
Stud ProfileMale
SubCategoryPower Transmission
System of MeasurementInch
ThreadLeft Hand
Thread DirectionLeft Hand
Thread Length1.562"
Thread Pitch3/4"-16
Thread Size3/4"-16
Thread TypeLH Male
titleCML12S
TypeMale Studded
UNSPSC31171508
UPC806990043177
Weight / LBS0.57

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Summit RacingQA1-CML12S12.991In StockQA112.99 @ 1
thumbzoomZoroG577382617.09135Qa10.9717.09 @ 1
thumbzoomspeedwaymotors.com721CML12S18.991In StockQA118.99 @ 1
thumbzoomsimsupply.comZO-G577382621.18122Qa121.18 @ 1
thumbzoomLily BearingCML12S21.391In StockQA1 PRECISION PROD0.5721.39 @ 1
Jegs122-CML12S22.991In StockQA122.99 @ 1
grainger.caGGF20G02335.187074881In StockQA11.02335.18707488 @ 1
motionindustries.com0647300135.451In StockQA1 Precision Products35.45 @ 1
thumbzoomRaptor SuppliesAB4VCA54.35907751In StockQA154.3590775 @ 1
