Square D DTU361RB

B00N06VICK

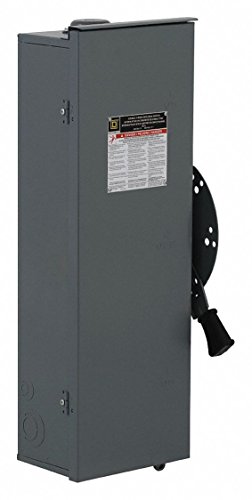

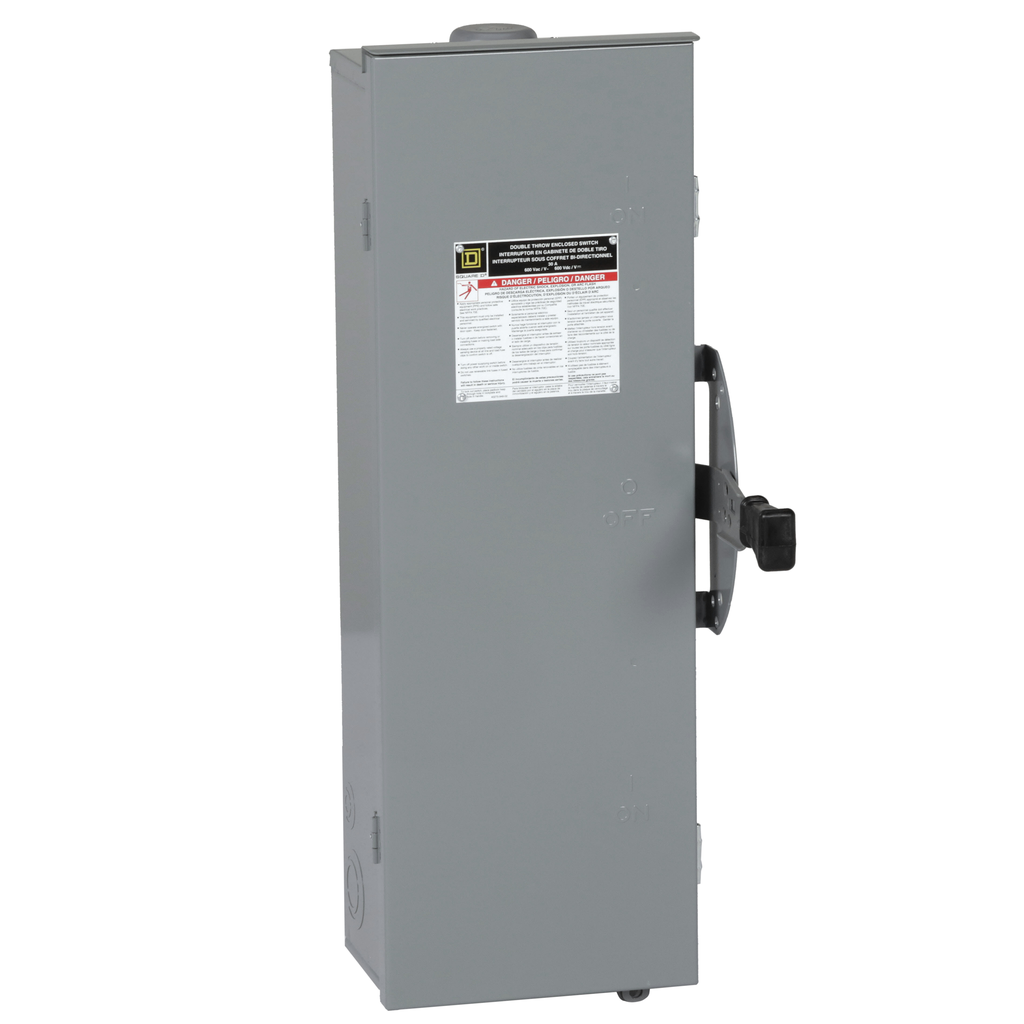

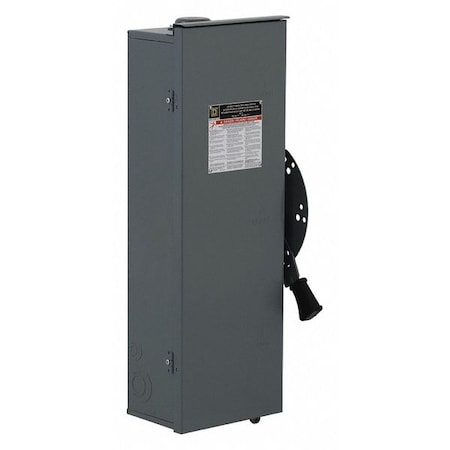

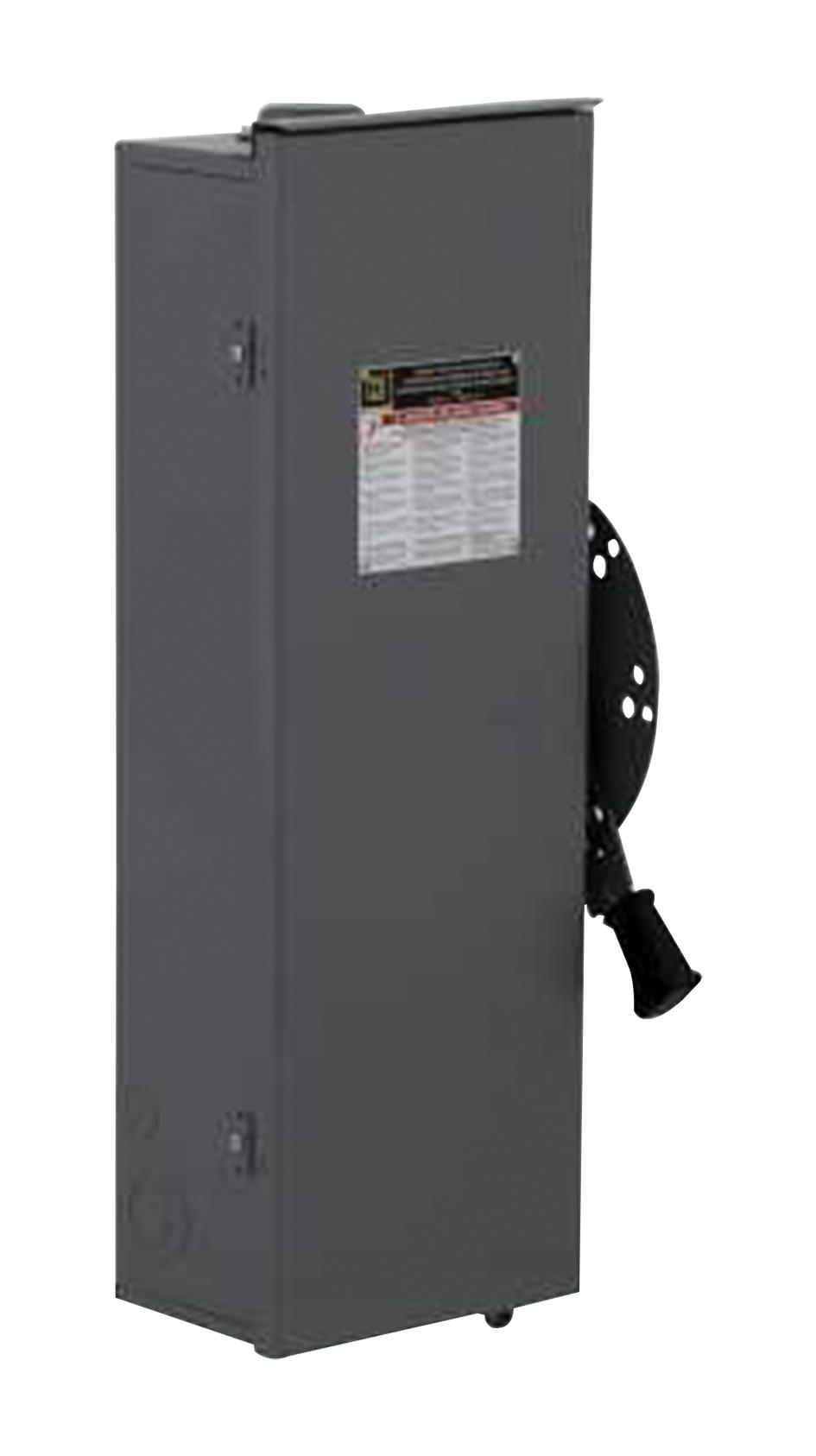

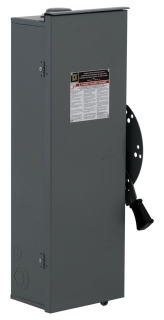

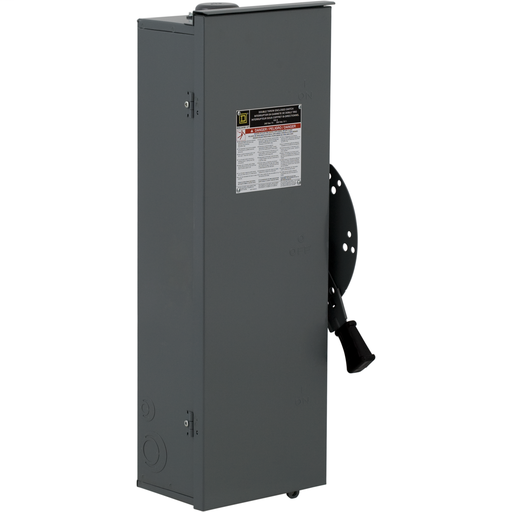

Square D Safety Switch, 3R NEMA Enclosure Type, 30 Amps AC, 30 HP @ 600VAC HP DTU361RB - 1 Each

Square D Safety Switch, 3R NEMA Enclosure Type, 30 Amps AC, 30 HP @ 600VAC HP DTU361RB - 1 Eachzoom

Attributes

Key Value
[Ue] Rated Operational .600 V AC || 600 V DC
ActionDouble Throw
Amperage30
Amperage Rating30A, 30
Amps AC30 A
ApprovalUL
Awg GaugeAWG 12...AWG 2 aluminiu.
BrandSquare D
California Proposition .Lead and lead compounds.
Catalog NumberDTU361RB
China Rohs RegulationPro-active China RoHS d.
ColorGrey
ConfigurationSingle
Contact Configuration3PDT
Contact Form3PDT
Country of OriginUnited States, US - Uni.
Depth6.9 in, 6.93 in
Device Compositionnone
Device MountingSurface
Disconnector Device Typenon-fusible disconnect .
DutyHeavy
Duty RatingHeavy Duty
ECCNEAR99
EnclosureNEMA 3R GALVANNEALED ST.
Enclosure Height30 inches and larger
Enclosure MaterialGalvannealed Steel
Enclosure Width10 to 19 3/4 inches
Environmental ConditionsRAINPROOF AND SLEET/ICE.
Environmental DisclosureENVPEP1307076EN
Eu Rohs DirectiveCompliant
Fuse TypeClass H, K, R, J or T, .
FusibilityNon-Fusible
Fusible / NonfusibleNonfusible
GTIN00785901308751
Height30.5 in
HP30 hp @ 600V AC
International ShippingNo
Interrupting Rating200kAIC at 600V
IP Rating14
ItemSafety Switch
Item TypeNon-fusible disconnect .
Line Rated Current30 A
Made in USAYes
ManufacturerSchneider Electric
MaterialGalvannealed Steel
Material of ConstructionCopper, Insulating Plas.
Mercury FreeYes
Metallic / Non-MetallicMetallic
MountingSurface
Mounting TypeSurface
MpnDTU361RB
Nema Degree Of Protecti.NEMA 3
NEMA Enclosure Type3R
Nema Rating3R
NEMA Rating3R
Net Weight18.37 kg
Neutral Assembly Includ.No
Number of Poles3
Number Of Poles3
Number Of Wires3
Number of Wires3
Phase3
Poles3
Product CertificationsUL listed
Product Or Component Ty.Double Throw Safety Swi.
Protection MethodNonfusible
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
SeriesDTU
Series NameHeavy Duty
Short-Circuit Current10 kA H or K || 200 kA .
Size6.93
SKUZO-G6422875
Special FeaturesNon-Fusible
StandardsRoHS, REACh, UL listed
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
Tightening Torque35-35 lbf.in 2.08-5.26 .
Toxic Heavy Metal FreeYes
TypeNon-Fusible
UNSPSC39122218
UPC785901308751
Voltage600VAC/VDC, 600V AC
Voltage Rating600 V AC;600 V DC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Weight18.37 kg
Width10.45 in, 12.0 in
Wire GaugeAWG 12 to AWG 2, AWG 14.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Graybar22088751946.7361In StockSquare D (Schneider Electric)946.736 @ 1
thumbzoomsuperbreakers.comDTU361RB1030.9211Square D1030.92 @ 1
thumbzoomgordonelectricsupply.comDTU361RB1133.911In Stock10SQUARE D1133.91 @ 1
standardelectricsupply.com21982181133.911In StockSquare D1133.91 @ 1
thumbzoommayerelectric.comSQDDTU361RB1133.91361In StockSQUARE D40.4141133.9136 @ 1
thumbzoomNewark79C61451134.921In StockSQUARE D BY SCHNEIDER ELECTRIC1134.92 @ 1
thumbzoomZoroG64228751190.611In StockSquare D37.641190.61 @ 1
thumbzoomsustainablesupply.comC26822931196.311In StockSquare D37.641196.31 @ 1
AmazonTPB00N06VICK1215.01In Stock2Schneider Electric1215.0 @ 1
AmazonUNKB00N06VICK1215.01In StockSchneider Electric1215.0 @ 1
thumbzoomsimsupply.comZO-G64228751495.661In StockSquare D1495.66 @ 1
thumbzoomUnited Electric7267031528.561In StockSQUARE D1528.56 @ 1
thumbzoomcrescentelectric.com944881811.031In StockSquare D1811.03 @ 1
thumbzoomRaptor SuppliesAH9UHQ2393.0061481In StockSQUARE D2393.006148 @ 1
