Schneider Electric HDA260604

B00CONKDRQ

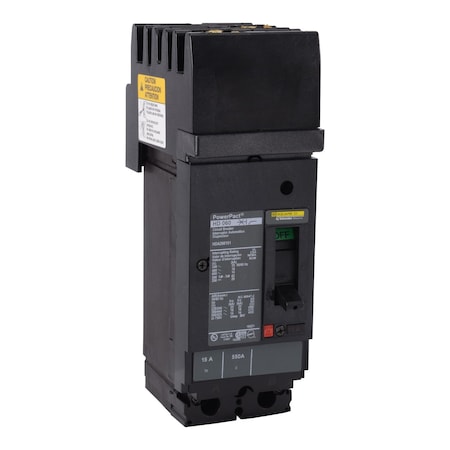

SCHNEIDER ELECTRIC 600-VOLT 60-AMP HDA260604 Molded CASE Circuit Breaker 600V 60A

SCHNEIDER ELECTRIC 600-VOLT 60-AMP HDA260604 Molded CASE Circuit Breaker 600V 60Azoom

Attributes

Key Value
[Ics] Rated Service Bre.25 kA 220/240 V AC 50/6.
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
Awg GaugeAWG 14...AWG 3/0 alumin.
BrandSquare D
Breaking Capacity25 kA 240 V AC 50/60 Hz.
Breaking Capacity CodeD
California Proposition .DINP, which is known to.
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI1311006EN
ColorBlack
Communication InterfaceModbus || Ethernet
Contactor TypeMagnetic
Continuous Current Rati.80 %
Control Typetoggle
Country of Origin (subj.United States
Depth86 mm
Device Applicationdistribution
Electrical ConnectionI-Line connection line .
Environmental DisclosureENVPEP1311006EN
Eu Rohs DirectiveCompliant
Gtin785901632597
Height163 mm
Ip Degree Of Protectionfront cover IP40 IEC 60.
ItemCircuit breaker,PowerPa.
Line Rated Current60-60 A
Local Signallingswitched off (OFF) 1 tr.
Magnetic Hold Current800 A
Magnetic Tripping Curre.1450-1450 A
Mercury FreeYes
Mounting Height3 in
Mounting ModeI-Line bracket)
Mounting Supportbracket
MpnHDA260604
Net Weight2.2 kg
Network Frequency50/60 Hz
Number Of Slots2 auxiliary switch OF p.
Phase1
Phase ConnectionBC
Poles2
Poles Description2P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact H
Product Or Component Ty.circuit breaker
Protected Poles Descrip.2t
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesHDA
StandardsUL || CSA || NEMA || NO.
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Terminal IdentifierAL150HD
Tightening Torque5-5 N.m 2.5-6 mm? (AWG .
Trip Unit Technologythermal-magnetic
Upc785901632597
Utilisation Categorycategory A
Voltage600
Warranty18 months
Width104 mm
Wire Stripping Length16 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comHDA260604515.01In Stock10SQUARE D515.0 @ 1
thumbzoommayerelectric.comSQDHDA260604519.271In StockSQUARE D4.84519.27 @ 1
thumbzoomRadwellHDA260604560.01In StockSCHNEIDER ELECTRIC SQUARE D560.0 @ 1
thumbzoomZoroG3980380568.381In Stock60Square D10.0568.38 @ 1
Newark19K9978649.031In StockSQUARE D BY SCHNEIDER ELECTRIC649.03 @ 1
simplybreakers.comHDA260604784.991In StockSchneider Electric784.99 @ 1
steinerelectric.comPDW~6403272899.01In StockSquare D?899.0 @ 1
thumbzoomsuperbreakers.comHDA260604957.2815Square D957.28 @ 1
