Crimp Supply YHV280-2PM-S-4MM-A

B09SJ51M5H

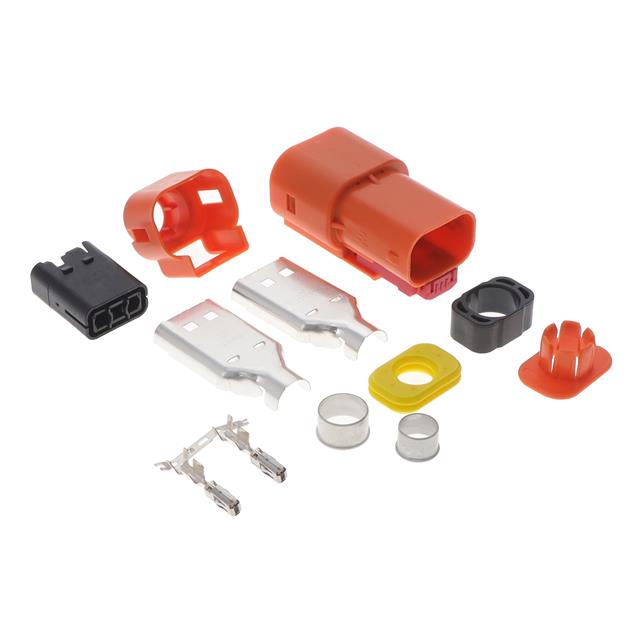

Deutsch - YHV280-2PM-S-4MM-A - YHV280-2PM-S-4MM-A - (Pack of 1)

Deutsch - YHV280-2PM-S-4MM-A - YHV280-2PM-S-4MM-A - (Pack of 1)zoom

Attributes

Key Value
Body MaterialPA GF
Cable Exit Angle180?
Cable TerminationCrimp
CategoryConnectors, Interconnec.
Centerline (Pitch)&thin.10.4?mm?[?.409?in?]
Circuit ApplicationSignal
ColorOrange
Connector Position Assu.Yes
Connector StyleHousing for female term.
Connector SystemWire-to-Board, Wire-to-.
Connector TypePlug
Contact Finish-
Contact Finish Thickness-
Contact TypeFemale Socket
Degree of ProtectionIP6K9K
DescriptionHVA280-2PHM,SHUNTED,4SQ.
Detailed Description2 Position Rectangular .
Digi-Key Part Number1734-YHV280-2PM-S-4MM-A.
Fastening TypeLatch Holder
FeaturesSealed
Height?:</span> .27.6?mm?[?1.087?in?]
Hybrid ConnectorNo
Length?:</span> .32.9?mm?[?1.295?in?]
ManufacturerTE Connectivity Deutsch.
Manufacturer Product Nu.YHV280-2PM-S-4MM-A
Manufacturer Standard L.8 Weeks
Mating Tab Width&thinsp.2.8?mm?[?.11?in?]
MfrTE Connectivity Deutsch.
Mounting FeatureWithout
Mounting TypeFree Hanging (In-Line)
Nominal Voltage Archite.12, 24, 42, 48, 80, 90,.
Number of Positions2
Number of Rows1
Operating Temperature R.-40 ? 125??C?[?-40 ? 25.
Operating Voltage850
PackageBox
Pitch0.409" (10.40mm)
PolarizedYes
Primary Locking FeatureOn the Terminal
Product StatusActive
Row Spacing-
SealableYes
SeriesHVA 280
ServiceableYes
Strain ReliefYes
Terminal Position Assur.No
UL Flammability RatingUL 94-HB
Width?:</span> .55.3?mm?[?2.177?in?]
Wire Gauge-
Wire Type-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomDigi-Key1811041643.411TE Connectivity Deutsch Connectors43.4 @ 1
