TE Connectivity 5-104655-5

B00KSQGHKI

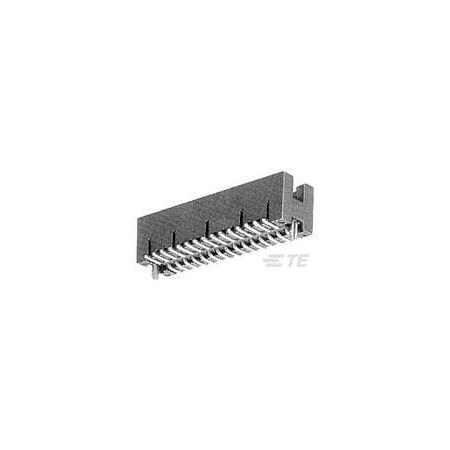

TE Connectivity Part Number 5-104655-5

TE Connectivity Part Number 5-104655-5zoom

Attributes

Key Value
ApplicationsAutomotive, General Pur.
Base Product Number104655
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.150.0?in (3.81?m)
Contact Length - Mating0.120" (3.05mm)
Contact Length - Post-
Contact MaterialPhosphor Bronze
Contact ShapeCircular
Contact TypeMale Pin
Country of Origin (subj.Mexico
Current Rating (Amps)0.5A per Contact
DescriptionCONN HEADER SMD 40POS 1.
Detailed DescriptionConnector Header Surfac.
Digi-Key Part NumberA99312-ND
Fastening TypePush-Pull
FeaturesBoard Lock
Ingress Protection-
Insulation ColorBlack
Insulation Height0.226" (5.74mm)
Insulation MaterialLiquid Crystal Polymer .
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.5-104655-5
Manufacturer Standard L.18 Weeks
Mated Stacking Heights6.35mm
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeSurface Mount
Number of Positions40
Number of Positions Loa.All
Number of Rows2
Operating Temperature-65?C ~ 105?C
Overall Contact Length-
PackageBulk
Pitch - Mating0.050" (1.27mm)
Product StatusActive
Row Spacing - Mating0.050" (1.27mm)
SeriesAMPMODU 50/50 Grid
ShroudingShrouded - 4 Wall
StyleBoard to Board
TerminationSolder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark16M39634.6617825AMP - TE CONNECTIVITY4.66 @ 1782
us.rs-online.com720485715.1817825TE Connectivity5.18 @ 1782
Onlinecomponents.com5-104655-55.2525447TE Connectivity5.252 @ 5
thumbzoomDigi-Key19201667.541542TE Connectivity AMP Connectors7.54 @ 5
thumbzoomZoroG0009387827.6217825Te Connectivity7.62 @ 1782
AmazonTPB07KWHS54265.11151TE Connectivity / AMP Brand65.11 @ 5
