- mpnDJ3C1P18M
- brandname: US Motors
- manufacturername: US Motors

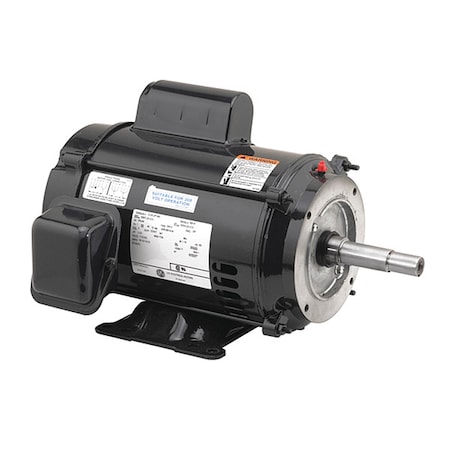

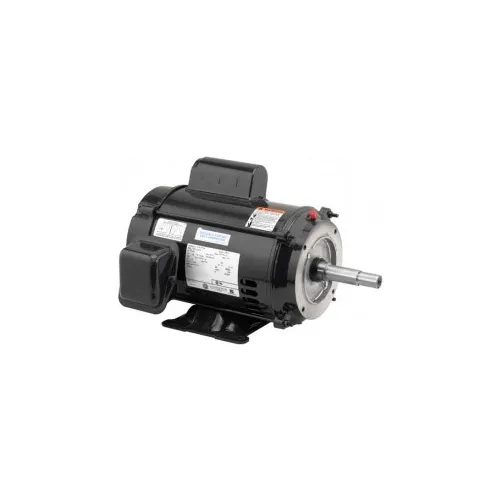

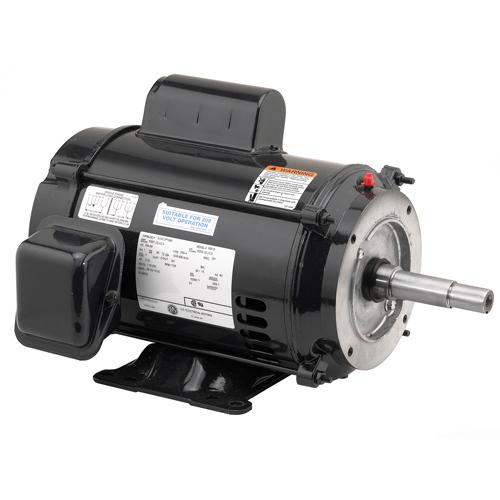

U.S. Motors US Motors Pump, 3 HP, 1-Phase, 3500 RPM Motor, DJ3C1P18M
- Brand: U.S. Motors
- PartNumber: DJ3C1P18M
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 16.0/32.0 |
| Bearings | Ball |
| CC Number | CC030A |
| Composition | Rolled Steel |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 89.10 |
| Family Series | US Motors Motors |
| Finish | Unfinished |
| FL Amps | 16.0/32.0 |
| Frame | 182JM |
| Frequency | 60 Hz |
| Full Load Amps | 16/32 |
| Gross Weight | 81 lbs |
| Hertz | 60 |
| Horsepower | 3 hp |
| HP | 3 |
| Hz | 60 |
| Ins. Class | F |
| Insulation Class | F |
| Inverter Rated | No |
| Item | Close-Coupled Pump Motor |
| Item Number | DJ3C1P18M |
| Kilowatts | 2.2 kW |
| Length Less Shaft | 13 1/4 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | BB15 |
| Manufacturer Part Number | DJ3C1P18M |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Model Number | BB15 |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Length (including. | 19.6" |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | JM Threaded |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Close-Coupled Pump |
| Motor Thermal Protection | None |
| Mounting | Foot Mount |
| Mounting Type | Foot Mount |
| Nameplate RPM | 3,600 |
| NEMA Frame | 182JM |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Voltage | 120 VAC, 240 VAC |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 17 1/2 in |
| Part Number | DJ3C1P18M |
| Phase | 1, Single |
| Product Type | Pump, Capacitor Run |
| RPM | 3500, 3,500 RPM |
| RPM Range | 3,001-3,600 |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8 in |
| Shaft Length | 4 1/4 in |
| Ship Weight | 81 lbs. |
| Speed (RPM) | 3500 |
| Standards | CSA (191252), UL (E5148. |
| Usable @ 200V | No |
| Usable @ 208V | No |
| Voltage | 110-120V, 230V, 115/230. |
| Voltage (AC) | 115 VAC, 230 VAC |
| Voltage Compatibility | 115/200-230V AC, 115/20. |
| Volts | 115, 230 |
| Weight | 81 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1944530 | 669.0 | 1 | In Stock | | U.S. Motors | 81.0 | 669.0 @ 1 |
 | Global Industrial | WBB465568 | 670.0 | 1 | In Stock | | US Motors | | 670.0 @ 1 |
 | emotorpro.com | DJ3C1P18M | 693.21 | 1 | In Stock | | U.S. Motors | 81.0 | 693.21 @ 1 |
 | motorsandcontrol.com | DJ3C1P18M | 707.4 | 1 | In Stock | | US Motors (Nidec) | 89.1 | 707.4 @ 1 |
 | National Supply Network | B465568 | 745.89 | 1 | In Stock | | US MOTORS | | 745.89 @ 1 |
| Applied Industrial | 101940845 | 776.81 | 1 | In Stock | | U.S. Motors | | 776.81 @ 1 |
 | Galco | DJ3C1P18M-USM | 800.51 | 1 | In Stock | | US Motors | 81.0 | 800.51 @ 1 |
| motionindustries.com | 04385011 | 1022.1 | 1 | In Stock | | US Motors (Nidec) | | 1022.1 @ 1 |
