- mpnEE511
- brandname: US Motors
- manufacturername: US Motors

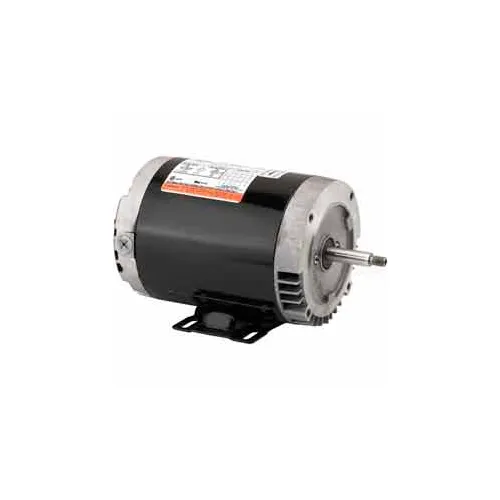

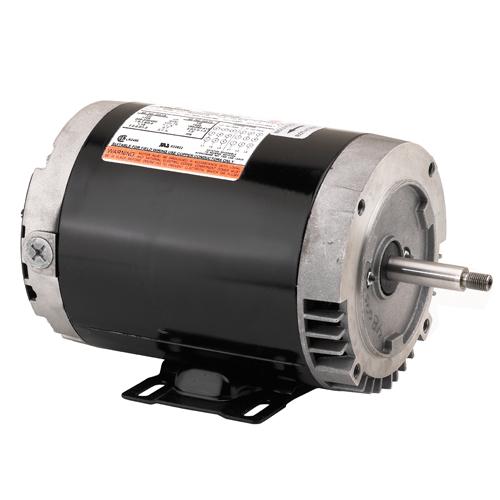

U.S. Motors US Motors Pump, 1 HP, 3-Phase, 3450 RPM Motor, EE511
- Brand: U.S. Motors
- PartNumber: EE511
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Ambient Temperature | 40 Degrees C |
| Amps | 3.6-3.8/1.9 |
| Bearings | Ball |
| CC Number | CC030A |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 18.70 |
| Family Series | US Motors Motors |
| Finish | Unfinished |
| FL Amps | 3.6-3.8/1.9 |
| Frame | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 4.6-4.6/2.3 |
| Full Load Amps @ 50Hz | 4.6-4.6/2.3 |
| Gross Weight | 17 lbs |
| Hertz | 50, 60 |
| Horsepower | 1 hp |
| HP | 1 |
| HP @ 50Hz | 1 |
| Hz | 50/60, 60/50 |
| Ins. Class | B |
| Insulation Class | B |
| Item | Vertical Pump Motor |
| Item Number | EE511 |
| Kilowatts | 0.8 kW |
| Length Less Shaft | 9 9/16 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | P055DAT1349015J |
| Manufacturer Part Number | EE511 |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Model Number | P055DAT1349015J |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.4 |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Pool and Spa Pump |
| Motor Thermal Protection | None |
| Mounting | Face, Footless |
| Mounting Type | C-Face |
| Nameplate RPM | 3,600 |
| NEMA Design | C |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 67.5 % |
| Nominal Voltage | 208 VAC, 240 VAC, 380 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 11 9/16 in |
| Overload Protection | None |
| Part Number | EE511 |
| Phase | 3, Three |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 3450, 3,450 RPM |
| RPM @ 50Hz | 3,600 |
| RPM Range | 3,001-3,600 |
| Service Factor @ 50Hz | 1 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 in |
| Shaft Material | Stainless Steel |
| Ship Weight | 17 lbs. |
| Speed (RPM) | 3450 |
| Standards | CSA Certified, UL Recog. |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 190V, 230V, 380V, 460V,. |
| Voltage (AC) | 190 VAC, 208-230 VAC, 3. |
| Voltage @ 50Hz | 208-230/460 |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 200, 230, 460 |
| Weight | 17 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G4345908 | 319.0 | 1 | In Stock | | U.S. Motors | 23.3 | 319.0 @ 1 |
 | motorsandcontrol.com | EE511 | 391.18 | 1 | In Stock | | US Motors (Nidec) | 18.7 | 391.18 @ 1 |
 | Global Industrial | WBB466609 | 403.95 | 1 | In Stock | 17 | US Motors | | 403.95 @ 1 |
 | emotorpro.com | EE511 | 435.81 | 1 | In Stock | | U.S. Motors | 17.0 | 435.81 @ 1 |
 | National Supply Network | B466609 | 453.24 | 1 | In Stock | | US MOTORS | | 453.24 @ 1 |
 | Galco | EE511-USM | 460.43 | 1 | In Stock | | US Motors | 17.0 | 460.43 @ 1 |
| motionindustries.com | 04385466 | 677.19 | 1 | In Stock | | US Motors (Nidec) | | 677.19 @ 1 |
