- mpnEE516
- brandname: US Motors
- manufacturername: US Motors

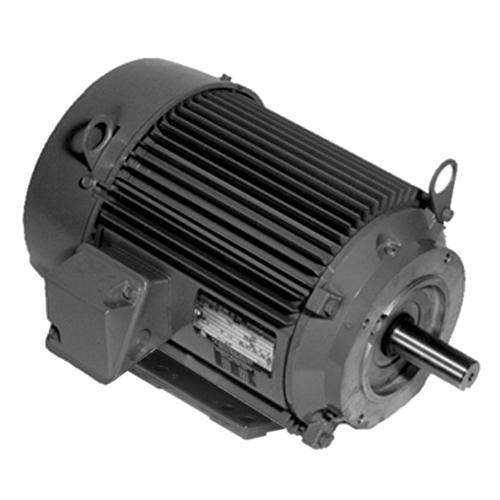

US Motors/Emerson EE516 Ee516 1hp 3ph Tefc Motor
- PartNumber: EE516
- Manufacturer: US Motors
- Label: US Motors
Attributes
| Key | Value |
|---|
| Amps | 3.5-3.4/1.7 |
| Bearing Type | Ball |
| Bearings | Ball |
| Body Dia. | 5.9 in |
| Composition | Rolled Steel |
| Conduit Box Location | Exterior |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 30.80 |
| Family Series | US Motors Motors |
| FL Amps | 3.5-3.4/1.7 |
| Frame | 56J |
| Frequency | 60 Hz |
| Full Load Amps | 3.5-3.4/1.70 |
| Full Load Amps @ 50Hz | 3.5-3.4/1.7 A |
| Gross Weight | 28 lbs |
| Hertz | 50, 60 |
| Horsepower | 1 hp |
| HP | 1 |
| HP @ 50Hz | 1 |
| Hz | 50/60, 60/50 |
| Ins. Class | B |
| Insulation Class | B |
| Inverter Rated | No |
| Item | Motor |
| Item Number | EE516 |
| Kilowatts | 0.8 kW |
| Length Less Shaft | 8 5/8 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | P063TLN4858013J |
| Manufacturer Part Number | EE516 |
| Max. Ambient Temp. | 140 Degrees F |
| Max. SF Amps | 4.4-4.2/2.1 A |
| Maximum Ambient Tempera. | 60? C |
| Model Number | P063TLN4858013J |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | C Face |
| Motor Service Factor | 1.4 |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | CCW |
| Motor Sub Application | Blank |
| Motor Thermal Protection | None |
| Mounting | Footless, Face |
| Mounting Type | C-Face |
| Nameplate RPM | 3,450/2,850 |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 77 % |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 11 3/16 in |
| Overload Protection | None |
| Part Number | EE516 |
| Phase | 3, Three |
| Product Type | Pump, Three Phase |
| Rotation | CCW Shaft End |
| RPM | 3450, 3,450 RPM |
| RPM @ 50Hz | 3,450/2,850 |
| RPM Range | 3,001-3,600 |
| Service Factor | 1.40 |
| Service Factor @ 50Hz | 1.4 |
| Shaft Dia. | 5/8 in |
| Ship Weight | 28 lbs. |
| Speed (RPM) | 3450 |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 208-230/460V AC, 208V, . |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage @ 50Hz | 208-230/460 |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208, 230, 460 |
| Weight | 28 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB466612 | 267.95 | 1 | In Stock | | US Motors | | 267.95 @ 1 |
 | Zoro | G1941349 | 276.38 | 1 | In Stock | | U.S. Motors | 28.0 | 276.38 @ 1 |
 | emotorpro.com | EE516 | 284.68 | 1 | In Stock | | U.S. Motors | 28.0 | 284.68 @ 1 |
 | motorsandcontrol.com | EE516 | 290.76 | 1 | In Stock | | US Motors (Nidec) | 30.8 | 290.76 @ 1 |
 | Galco | EE516-USM | 290.77 | 1 | In Stock | | US Motors | 28.0 | 290.77 @ 1 |
 | National Supply Network | B466612 | 292.64 | 1 | In Stock | | US MOTORS | | 292.64 @ 1 |
 | bscsource.com | EE516 | 471.89 | 1 | In Stock | | US Motors | | 471.89 @ 1 |
