- mpnU32P3DC
- brandname: US Motors
- manufacturername: US Motors

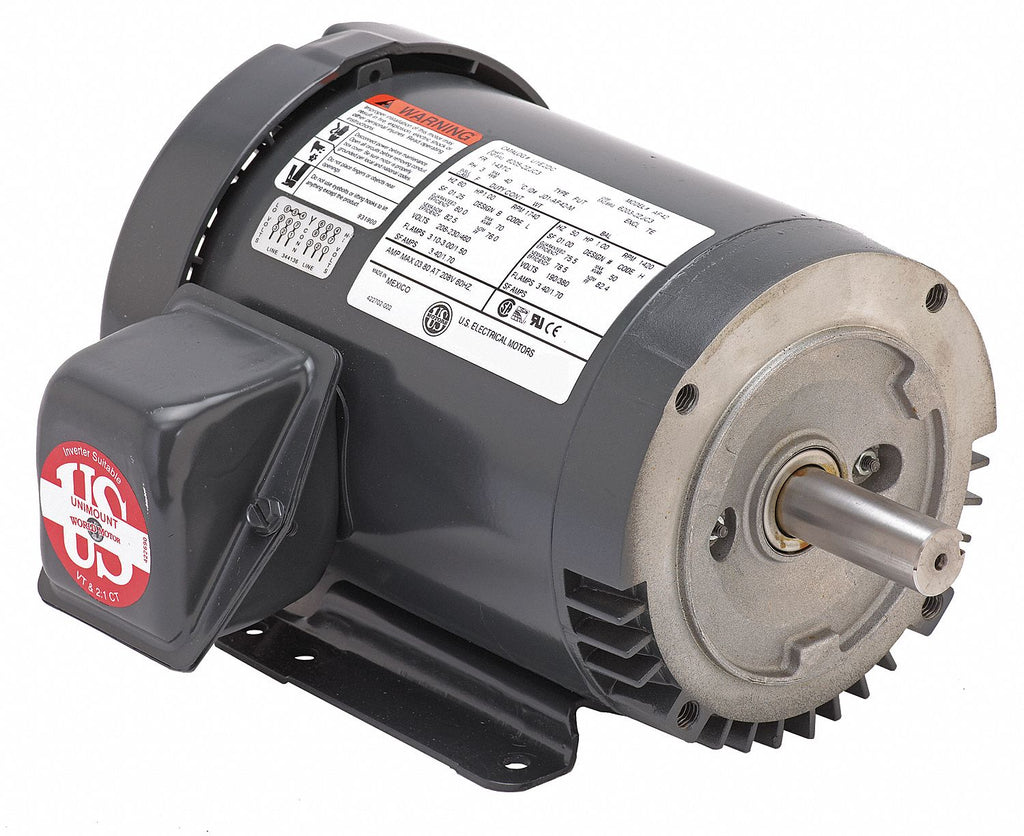

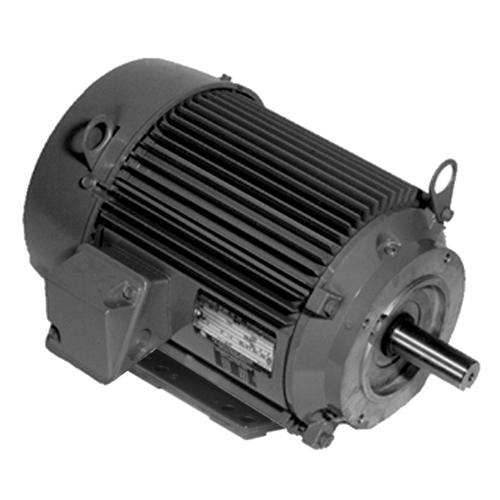

U.S. Motors US Motors Unimount TEFC, 1.5 HP, 3-Phase, 1175 RPM Motor, U32P3DC
- Brand: U.S. Motors
- PartNumber: U32P3DC
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 4.8-4.7/2.3 |
| Bearings | Ball |
| CC Number | CC030A |
| Composition | Aluminum |
| Construction | Aluminum |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 87.5% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 66.00 |
| Family Series | US Motors Motors |
| FL Amps | 4.8-4.7/2.3 |
| FL Efficiency | 87.5 |
| Footnotes | 5,10 |
| Frame | 182TC |
| Frame Material | Aluminum |
| Frequency | 60 Hz |
| Full Load Amps | 4.8-4.7/2.3 |
| Green Certification or . | NEMA Premium Rated |
| Gross Weight | 60 lbs |
| Hertz | 50, 60 |
| Horsepower | 1-1/2 hp |
| HP | 1.5, 1 1/2, 1-1/2 |
| Hz | 50/60, 60/50 |
| Ins. Class | F |
| Insulation Class | F |
| Item | General Purpose Motor |
| Item Number | U32P3DC |
| Kilowatts | 1.1 kW |
| Length Less Shaft | 13 3/8 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | CJ75 |
| Manufacturer Part Number | U32P3DC |
| Manufacturers Warranty . | 2 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Model Number | CJ75 |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | Energy Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Cast Aluminum |
| Motor Mounting Position | Horizontal or Vertical . |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | C-Face Footed |
| Nameplate RPM | 1,200 |
| NEMA Design | B |
| NEMA Frame | 182TC |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 87.5 % |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 6 |
| Number of Speeds | 1 |
| Overall Length | 16 1/4 in |
| Part Number | U32P3DC |
| Phase | 3, Three |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1175, 1,175 RPM |
| RPM Group | 1101-1200 |
| RPM Range | 1,101-1,200 |
| Service Factor | 1.25 |
| Shaft Dia. | 1 1/8 in |
| Shaft Length | 2 3/4 in |
| Ship Weight | 60 lbs. |
| Speed (RPM) | 1175 |
| Standards | CE, CSA, UL |
| Voltage | 190V, 230V, 380V, 460V,. |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208, 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB466521 | 613.0 | 1 | In Stock | 17 | US Motors | | 613.0 @ 1 |
 | emotorpro.com | U32P3DC | 635.23 | 1 | In Stock | | U.S. Motors | 60.0 | 635.23 @ 1 |
 | Zoro | G4605781 | 666.0 | 1 | In Stock | | U.S. Motors | 60.35 | 666.0 @ 1 |
 | Square One | U32P3DC | 681.39 | 1 | In Stock | | US MOTORS | | 681.39 @ 1 |
 | Galco | U32P3DC-USM | 702.0 | 1 | In Stock | | US Motors | 60.0 | 702.0 @ 1 |
 | motorsandcontrol.com | U32P3DC | 702.0 | 1 | In Stock | | US Motors (Nidec) | 66.0 | 702.0 @ 1 |
 | National Supply Network | B466521 | 717.24 | 1 | In Stock | | US MOTORS | | 717.24 @ 1 |
 | sustainablesupply.com | C1549368 | 725.97 | 1 | In Stock | | US Motors | 60.35 | 725.97 @ 1 |
| motionindustries.com | 04487619 | 1145.76 | 1 | In Stock | | US Motors (Nidec) | | 1145.76 @ 1 |
