WEG 00136ES1B56C-S

B07C9876PT

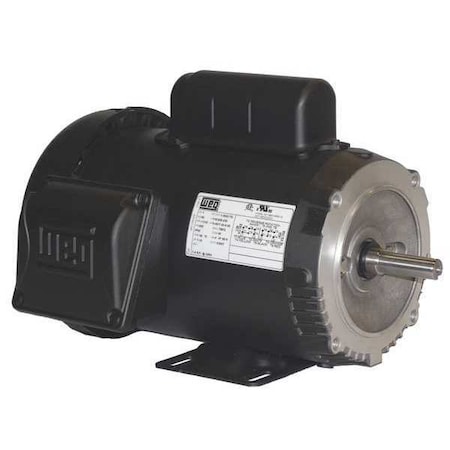

General Purpose Motor, 1 HP, 56 Frame

General Purpose Motor, 1 HP, 56 Framezoom

Attributes

Key Value
Amperage Rating5.1 A
Application TypeGeneral Purpose AC Moto.
AvailabilityIn Stock, ships within .
Bearing TypeBall
BrandWEG
CC NumberCC029A
ClassificationSingle Phase
Comments60 Hz
CompositionSteel
ConditionNew
ConstructionRolled Steel
Country of Origin (subj.Multiple
Current Stock6
Description:MOTOR 1HP 2P 56C WCF2 R.
Dimensions13.114 in L
Drive End Flange TypeC-Face
DutyContinuous
Duty CycleContinuous
Efficiency %70 %
EnclosureTEFC, IC01 - ODP, Total.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight35.00
Family SeriesWEG Electric Motors
FL Amps5.1
FL Efficiency70
FlangesFlange C
Frame56C
Frame MaterialRolled Steel
Frame RemarksFooted
Frequency60 Hz
Full Load Amps10.1/5.6-5.1
Gross Weight0 lbs
Hertz60
Horsepower1 hp
HP1
Hz60
Ins. ClassF
Insulation ClassClass F
International ShippingNo
Inverter RatedNo
ItemGeneral Purpose Motor
Item ConditionFactory New
Item Number00136ES1B56C-S
Length Less Shaft11 1/4 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00136ES1B56C-S
Manufacturers Warranty .3 yr
MaterialHAWA, Rolled Steel
Max. Ambient Temp.40 Degrees C
MFG Part #:00136ES1B56C-S
Model13226970
Motor ApplicationGeneral Application
Motor BearingsBall
Motor DesignCapacitor-Start/Run
Motor Efficiency GroupStandard Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Mounting PositionAll Angle
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, C-Face Foot.
Mpn00136ES1B56C-S
Nameplate RPM3,500
NEMA DesignNone
NEMA Frame56C
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency70 %
Nominal Voltage120 VAC
Number of Poles2
Number of Speeds1
Output Rating15 HP
Overall Length13 1/8 in
Part Number00136ES1B56C-S
Phase1, Single, 1 ph
Product TypeGeneral Purpose
Replaces00136ES1B56C-S
RotationCW/CCW
RPM3600, 3400 - 3600, 3,60.
RPM Group3001-3600
RPM Range3,001-3,600
Service Factor1.15
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Shaft Size5/8 in Dia x 1-7/8 in L
SKUCU-353258523331
Speed3600 rpm
Speed (RPM)3600
StandardNEMA MG-1
StandardsCSA, UL
SubCategoryMotors/Ac Motors
Supplier:WEG ELECTRIC CORP
Synchronous Speed3600 rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
UPC:7909522440246
Usable @ 200VNo
Usable @ 208VYes
Voltage110-120V, 230/460//190-.
Voltage (AC)120 VAC
Voltage Compatibility115/200-230V AC, 115/20.
Volts115/208-230
Weight34.510000, 31.5 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
kscdirect.comWEG 00136ES1B56C-S283.51In StockWEG ELECTRIC CORP283.5 @ 1
thumbzoomWalker Industrial00136ES1B56C-S283.51In Stock17WEG283.5 @ 1
thumbzoommotorsandcontrol.com00136ES1B56C-S283.51In StockWEG Electric35.0283.5 @ 1
thumbzoomAutomation Direct00136ES1B56C-S284.019WEG Electric30.84284.0 @ 1
thumbzoomMRO Supply2853140298.531In StockWEG298.53 @ 1
thumbzoomGalco00136ES1B56C-S-WEG310.471In StockWEG Electric310.47 @ 1
thumbzoomDealers Electric00136ES1B56C-S326.081In StockWeg46.0326.08 @ 1
thumbzoomindustrialrefrigerationparts.com00136ES1B56C-S330.71In StockWEG34.51330.7 @ 1
thumbzoomZoroG7598300335.9918Weg33.5335.99 @ 1
thumbzoomvfds.com00136ES1B56C-S378.01In StockWEG378.0 @ 1
thumbzoomsimsupply.comCU-353258523331398.851In StockWeg398.85 @ 1
