- mpnC23128
- brandname: CLE-LINE
- manufacturername: CLE-LINE

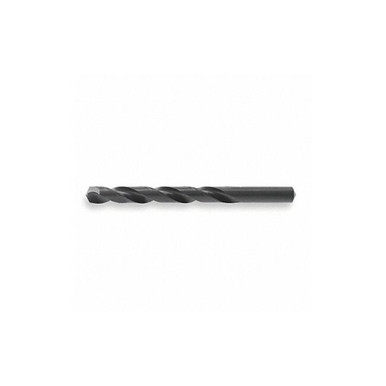

Jobber Bit, 7/64 in, High Speed Steel
- Brand: Cle-line
- PartNumber: C23128
- Color: Black Oxide
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Brand | Cle-Line |
| Color | Black Oxide |
| Current Stock | 797 |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1094 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.1094", 0.109375 |
| Diameter (Fraction) | 7/64" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | 7/64 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0005 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0227 in |
| Drill Size - Decimal In. | 0.1094 in |
| Drill Size - Fraction | 7/64 in |
| Drill Size System | Fractional |
| Drill Style | Jobber Drill |
| Finish | Tin, Black Oxide |
| Flute Length | 1 1/2 in, 1-1/2 in, 1.5. |
| Flute Length (Metric) | 38.10mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 1 1/8 in |
| Mpn | C23128 |
| Number of Flutes | 2 |
| Overall Length | 2.6250", 2 5/8 in, 2-5/. |
| Overall Length (Metric) | 66.67mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Series | 1801 |
| Shank Configuration | Straight |
| Shank Dia. | 7/64 in |
| Shank Length | 1.1250", 1 1/8 in |
| Shank Length (Metric) | 28.57mm |
| Shank Size | 0.1094", 0.1094, 7/64 i. |
| Shank Size (Metric) | 2.78mm |
| Shank Type | Straight |
| SKU | ZO-G0863965 |
| Style | 1801 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | 7/64" |
| Type | Heavy Duty |
| UPC | 697334231288 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2542951 | 0.9578 | 12 | 12 | | Cle-Line | | 0.9578 @ 12 |
 | Megadepot | C23128 | 1.1 | 1 | 12 | | Cle-Line | | 1.1 @ 12 |
 | usmegastore.com | C23128 | 1.11 | 1 | 12 | | Cle-Line | | 1.11 @ 12 |
 | heavydutydepot.com | C23128 | 1.11 | 91 | 12 | | Cle-Line | | 1.11 @ 91 |
 | Zoro | G0863965 | 1.19 | 1 | 1552 | | Cle-Line | 0.01 | 1.19 @ 12 |
 | MRO Supply | 6124651 | 1.2 | 42 | 12 | | Cle-Line | | 1.2 @ 42 |
 | Raptor Supplies | AB9CMM | 1.608984 | 1 | 12 | | CLE-LINE | | 1.608984 @ 12 |
 | sustainablesupply.com | C1465196 | 1.68 | 1 | 12 | | Cle-Line | 0.01 | 1.68 @ 12 |
 | simsupply.com | ZO-G0863965 | 7.38 | 1 | 797 | | Cle-Line | | 7.38 @ 12 |
