CLEVELAND C14388

mpnC14388
brandname: CLEVELAND
manufacturername: CLEVELAND

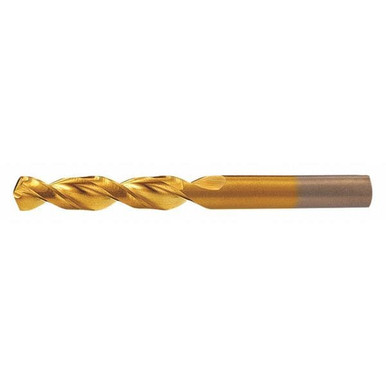

Cleveland 2175T Cobalt Steel Jobbers' Length Drill Bit, TiN-Coated, Round Shank, 135 Degree Notch Point, Wire Size #27, (Pack of 1)

Cleveland 2175T Cobalt Steel Jobbers

zoom

Brand: CLEVELAND
PartNumber: C14388
Size: #27
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries
Label: Greenfield Industries

Attributes

Key	Value
Application	For Stainless Steel, To.
Bit Dia.	#27
Brand	Cleveland
Construction	Wide Land Parabolic
Coolant Fed	Non-Coolant Through
Coolant Through	No
Country of Origin (subj.	United States
Current Stock	2
Cutting Direction	Right Hand
Decimal Equivalent	0.1440, 0.1440" / 3.66mm
Depth x Dia. Ratio	10xD
Depth:Dia. Ratio	10xD
Diameter Wire	27
Drill Bit Dimension Type	Wire
Drill Bit Finish	TiN
Drill Bit Grouping	Drill Bit
Drill Bit Material	Cobalt
Drill Bit Point Angle	135 Degrees
Drill Bit Point Type	Split Point
Drill Bit Size	#27
Drill Diameter Tolerance	+0.0000 in /-0.0007 in
Drill Length Class	Screw Machine Length
Drill Point Length	0.0298 in
Drilling Length	1"
Finish - Machining	TiN
Flute Length	10 in
Flute Type	Parabolic
Grade	High Performance
Hand of Spiral Cut	RHS / RHC
Helix Angle	40 Degrees
International Shipping	No
Item	Screw Machine Drill Bit
Length of Flute	1.0000" / 25.40mm
List Number	2175-TN
List Style	2175-TN
Material	HSS-CO 8% (M42), Cobalt
Material - Machining	Cobalt
Material Grade - Machin.	M42
Maximum Drilling Depth	1 in
Measurement System	Wire
Mpn	C14388
Number of Flutes	2
Number of Pieces	0
Overall Length	2.0625" / 52.39mm, 2 1/.
Point	135? Split
Point Type	Split
Primary Material Applic.	Steel
Primary Material Applic.	P
Series	2175-TN
Shank	Straight
Shank Dia.	9/64 in
Shank Length	1 1/16 in
Shank Shape	Straight
Shank Size	0.1440", 0.1440" / 3.66.
Shank Type	Straight
Shank Type - Machining	Straight
Sizes Included	#27
SKU	ZO-G2997878
Spiral Direction	Right Hand
Standards	ASME B94.11M-1993
Style	2175-TN
SubCategory	Machining
Surface Condition	TiN
Tool Size	#27
UPC	697334143888

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	6110880	7.54	5	12		Cleveland		7.54 @ 12
	Megadepot	C14388	8.54	1	12		Cleveland		8.54 @ 12
	usmegastore.com	C14388	8.72	1	12		Cleveland		8.72 @ 12
	Zoro	G2997878	9.1	1	12		Cleveland	0.01	9.1 @ 12
	sustainablesupply.com	C2767195	9.5	1	12		Cleveland	0.01	9.5 @ 12
	simsupply.com	ZO-G2997878	15.55	1	12		Cleveland		15.55 @ 12
