- mpnC15142
- brandname: CLEVELAND
- manufacturername: CLEVELAND

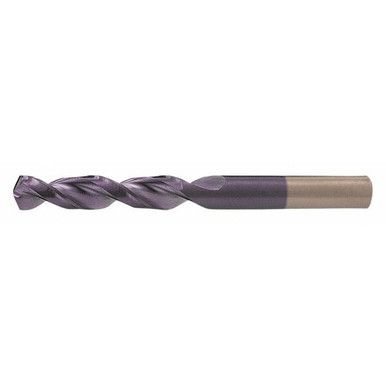

Cleveland 2175A Cobalt Steel Jobbers' Length Drill Bit, TiAIN Coated, Round Shank, 135 Degree Notch Point, Letter Size M (Pack of 5)
- Brand: CLEVELAND
- PartNumber: C15142
- Model: C15142
- Size: M
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries
- Label: Greenfield Industries
Attributes
| Key | Value |
|---|
| Applicable Materials | Chilled Cast Iron, High. |
| Application | For Stainless Steel, To. |
| Bit Dia. | M |
| Brand | Cleveland |
| Construction | Heavy-Duty |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subj. | United States |
| Current Stock | 13 |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8 |
| Decimal Equivalent | 0.2950, 0.2950" / 7.49mm |
| Depth x Dia. Ratio | 10xD |
| Depth:Dia. Ratio | 10xD |
| Drill Bit Dimension Type | Letter |
| Drill Bit Finish | TiAlN |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | M |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0000 |
| Drill Size - Decimal In. | 0.295 in |
| Drill Size - Letter | M |
| Drilling Length | 1.563" |
| Finish | TiAlN Coated |
| Finish - Machining | TiAlN |
| Flute Length | 1-9/16 in, 1 9/16 in |
| Flute Type | Parabolic, Right Spiral. |
| Grade | High Performance |
| Hand of Spiral Cut | RHS / RHC |
| Helix Angle | 40 Degrees |
| International Shipping | No |
| Item | Screw Machine Drill Bit |
| Length of Flute | 1.5625" / 39.69mm |
| List Number | 2175-TA |
| List Style: | 2133-TC |
| Material | M42 HSS-Co 8, HSS-CO 8%. |
| Material - Machining | Cobalt |
| Material Grade - Machin. | M42 |
| Maximum Drilling Depth | 1 9/16 in |
| Measurement System | Letter |
| Mpn | C15142 |
| Number of Flutes | 2 |
| Number of Pieces | 0 |
| Overall Length | 2.7500" / 69.85mm, 2-3/. |
| Point | 135? Split |
| Point Angle | 135 deg |
| Point Type | Split |
| Primary Material Applic. | Cast Iron, Stainless St. |
| Primary Material Applic. | K, M |
| Series | 2175-TA |
| Shank | Straight |
| Shank Dia. | 9/32 in |
| Shank Length | 1 3/16 in |
| Shank Shape | Straight |
| Shank Size | 0.2950", 0.295 in Dia x. |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sizes Included | M |
| SKU | ZO-G3003861 |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M-1993 |
| Style | 2175-TA |
| SubCategory | Machining |
| Surface Condition | TiAlN, TiCN |
| Tool Size | M |
| Type | High Performance |
| UPC | 697334151425 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6111259 | 19.88 | 2 | 5 | | Cleveland | | 19.88 @ 5 |
 | usmegastore.com | C15142 | 21.08 | 1 | 5 | | Cleveland | | 21.08 @ 5 |
 | sustainablesupply.com | C2768588 | 25.81 | 1 | 5 | | Cleveland | 0.04 | 25.81 @ 5 |
 | Zoro | G3003861 | 26.1 | 1 | 20 | | Cleveland | 0.04 | 26.1 @ 5 |
 | bscsource.com | C15142 | 30.99 | 1 | 5 | | Cleveland | | 30.99 @ 5 |
 | simsupply.com | ZO-G3003861 | 32.47 | 1 | 13 | | Cleveland | | 32.47 @ 5 |
 | National Supply Network | 75910505 | 33.558 | 1 | 5 | | Cleveland | | 33.558 @ 5 |
 | Guardian | 75910505 | 42.55 | 1 | 5 | | Cleveland | | 42.55 @ 5 |
| Amazon | B0026H74JK | 128.06 | 1 | 5 | | Cleveland Twist Drill | | 128.06 @ 5 |
