CLEVELAND C15283

mpnC15283
brandname: CLEVELAND
manufacturername: CLEVELAND

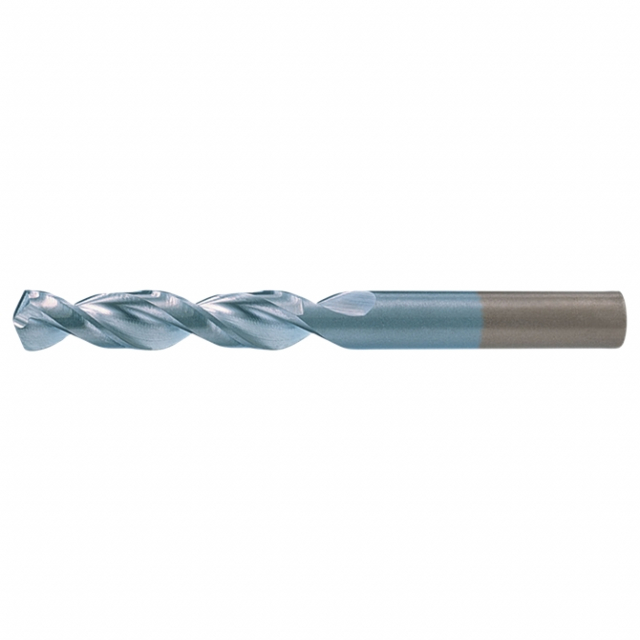

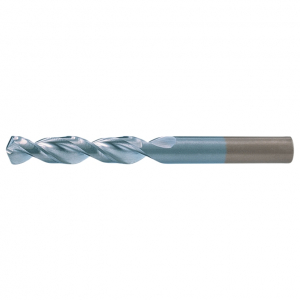

Cleveland 2175N Cobalt Steel Jobbers' Length Drill Bit, TiCN Coated, Round Shank, 135 Degree Notch Point, 37/64" (Pack of 1)

Brand: CLEVELAND
PartNumber: C15283
Model: C15283
Size: 37/64"
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries
Label: Greenfield Industries

Attributes

Key	Value
Applicable Materials	Chilled Cast Iron, High.
Bit Dia.	37/64"
Catalog Page	N/A
Construction:	Wide Land Parabolic
Coolant Fed	Non-Coolant Through
Country of Origin	USA
Cutting Depth	5XD
Cutting Direction	Right Hand
Cutting Edge Material	M42 HSS-Co 8
Decimal Equivalent	0.5781
Decimal Equivalent:	0.5781"/ 14.68mm
Depth x Dia. Ratio	10xD
Depth:Dia. Ratio	10xD
Diameter Fractional:	37/64"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	TiCN
Drill Bit Grouping	Drill Bit
Drill Bit Material	Cobalt
Drill Bit Point Angle	135 Degrees, 135 ?
Drill Bit Point Type	Split Point
Drill Bit Size	37/64 in
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in /-0.0012 in
Drill Length Class	Screw Machine Length
Drill Point Length	0.1197 in
Drill Size - Decimal In.	0.5781 in
Drill Size - Fraction	37/64 in
Drilling Length	2-5/8"
Finish	TiCN Coated
Finish - Machining	TiCN
Flute Length	2 5/8 in, 2-5/8 in
Flute Type	Parabolic, Right Spiral.
Hand of Spiral Cut:	RHS/RHC
Helix Angle	40 ?
Item	Screw Machine Drill Bit
Item?	439Y23
Length of Flute:	2.6250"/66.67mm
List Style:	2175-TC
Material	M42 HSS-Co 8, HSS-CO 8%.
Material - Machining	Cobalt
Material Grade - Machin.	M42
Material:	Cobalt
Maximum Drilling Depth	2 5/8 in, 2-5/8 in
Measurement System	Fractional Inch
Mfr. Model?	C15283
Number of Flutes	2
Overall Length	4-1/8 in, 4 1/8 in
Overall Length:	4.1250"/ 104.77mm
Point Angle	135 deg
Point Type	Split
Point:	135? Split
Primary Material Applic.	Aluminum; Brass; Bronze.
Primary Material Applic.	N; P
Secondary Material Appl.	Cast Iron; Stainless St.
Secondary Material Appl.	K; M
Series	2175-TC
Shank Dia.	37/64 in
Shank Length	1 1/2 in, 1-1/2 in
Shank Size	37/64", 37/64 in Dia x .
Shank Size:	0.5781"/ 14.68mm
Shank Type	Straight
Shank Type - Machining	Straight
Shank:	Straight
Sizes Included	37/64"
Spiral Direction	Right Hand
Standards	ASME B94.11M-1993
Style	2175-TC
Surface Condition	TiCN
Surface Condition:	TiCN
Tool Size	37/64"
Type	High Performance
UNSPSC	27112801

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
MRO Supply	6111306	50.47	1	In Stock	Cleveland		50.47 @ 1
Zoro	G3004570	52.29	1	In Stock	Cleveland	0.24	52.29 @ 1
Megadepot	C15283	60.64	1	In Stock	Cleveland		60.64 @ 1
usmegastore.com	C15283	61.03	1	In Stock	Cleveland		61.03 @ 1
sustainablesupply.com	C2975749	64.4	1	In Stock	Cleveland	0.24	64.4 @ 1
Grainger	439Y23	83.16	1	In Stock	CLEVELAND		83.16 @ 1
