Dayton 2Z844

mpn2Z844
brandname: Dayton
manufacturername: Dayton

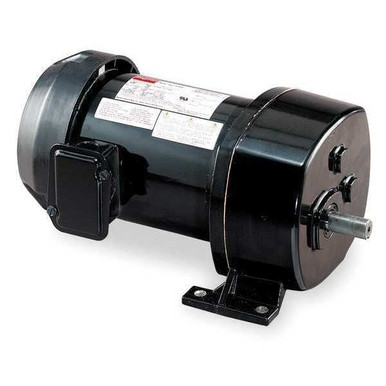

AC Gearmotor, 153 rpm, TEFC, 115V

Brand: Dayton
PartNumber: 2Z844
Model: 2Z844
PackageQuantity: 1
Binding: Misc.
Manufacturer: Dayton
Label: Dayton

Attributes

Key	Value
Ambient (C)	40
Bearings	Heavy Duty Ball, Needle.
Brake	4Z447
Brand	Dayton
Current Stock	9
Enclosure	TEFC
Full Load Amps	5.50
Full Load Torque (In.-L.	125.0
Gear Case	Die Cast Aluminum
Gear Case Material	Die Cast Aluminum
Gear Material	Hardened Steel
Gear Ratio	11:1
Gear Type	Helical First Stage/Sub.
Gearmotor Brake Type	None
Gearmotor Enclosure	Totally Enclosed Fan-Co.
Gearmotor Mounting Posi.	All Angle
Gearmotor Phase	1
Gearmotor Rotation	CW/CCW
Gearmotor Shaft Orienta.	Parallel
Gearmotor Shaft Type	Single
Gearmotor Type	AC Gearmotor
Gearmotor Voltage	115V AC, 115 V AC
Gears	Hardened Steel, 1st Sta.
Housing	Die Cast Aluminum
Hz	60
Input HP	1/3
International Shipping	No
Item	AC Gearmotor
Keyway Depth	1/8 in
Keyway Width	3/16 in
Lead Time	Expected to ship in 1-2.
Length Less Shaft	12 5/16 in, 12-5/16"
Length Less Shaft (In.)	12-5/16
Lubrication	Permanent Heavy Duty Ge.
Max. Ambient Temp.	40 Degrees C
Max. Torque	125 in.- lbs., 125.0 in.
Motor Type	Split-phase
Mount Hole Center-to-Ce.	2.5 in
Mount Hole Center-to-Ce.	7.13 in
Mounting	All Position
Mpn	2Z844
Nameplate RPM	153 RPM, 153
Output Shaft Diameter	3/4 in
Output Shaft Height	3 in
Output Shaft Length	1 1/2 in
Overall Height	6.63 in
Overall Width	8.13 in
Overhung Load	325 lbs.
Overhung Load (Lb.)	325
Phase	1
Rotation	Rev.
Seals	Lip Type on Input and O.
Shaft Dia. (Dimension U)	3/4"
Shaft Dimensions (In.)	3/4 x 1 1/2
Shaft Length (Dimension.	1.5"
Shaft Orientation	Parallel
Ship Weight	30 lbs.
SKU	ZO-G2811182
Standards	UL Recognized, CSA Cert.
SubCategory	Power Transmission
Thermal Protection	None
Type	Parallel Shaft
UPC	190735241325
Voltage Rating	115

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Zoro	G2811182	723.99	1	9	Dayton	29.6	723.99 @ 1
sustainablesupply.com	C2675161	829.42	1	In Stock	Dayton	29.6	829.42 @ 1
emotorpro.com	2Z844	877.5	1	In Stock	Dayton	30.0	877.5 @ 1
simsupply.com	ZO-G2811182	919.55	1	9	Dayton		919.55 @ 1
Raptor Supplies	AC4DVT	1188.905094	1	In Stock	DAYTON		1188.905094 @ 1
grainger.ca	WWG2Z844	1253.94599396	1	In Stock	DAYTON	29.6	1253.94599396 @ 1
