- mpn2Z846
- brandname: DAYTON
- manufacturername: DAYTON

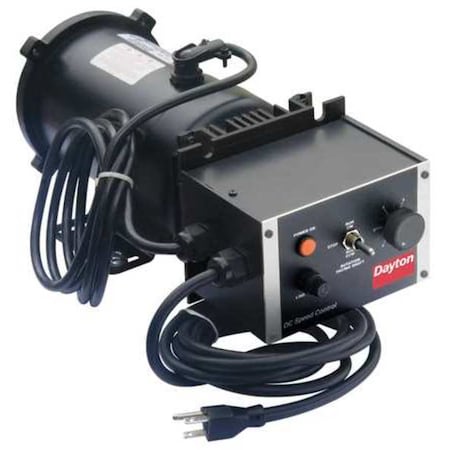

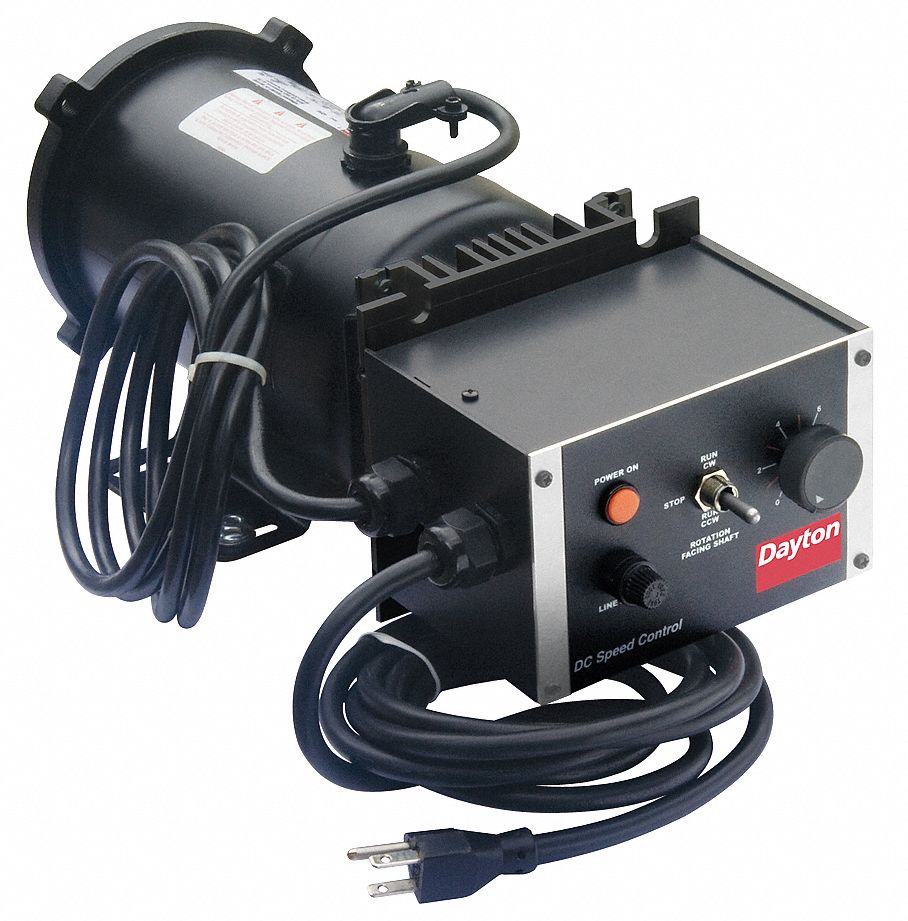

Dayton 2Z846 Adjustable Speed Motor, Perm Magnet DC
- Brand: Dayton
- PartNumber: 2Z846
- Model: 2Z846
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Dayton
- Label: Dayton
Attributes
| Key | Value |
|---|
| Ambient Temperature | 40 Degrees C |
| Amps | 7.6 |
| Application | For Packaging Equipment. |
| Bearings | Ball |
| Cord | 3 Conductor |
| Country of Origin (subj. | United States |
| Cross Reference | 2M169 |
| Enclosure | Totally Enclosed Fan-Co. |
| Enclosure Type | TEFC (Totally Enclosed . |
| Features | Soft Start Acceleration. |
| Frame | 56C |
| Full Load Amps | 7.6 A, 7.6 |
| HP | 3/4 |
| HP @ 1725 RPM | 0.517 hp |
| HP @ 2500 RPM | 3/4 hp |
| Includes | Fused Control Protectio. |
| Input Voltage | 115V AC |
| Ins. Class | F |
| Insulation Class | F |
| Item | Adjustable Speed Motor |
| Max. Ambient Temp. | 40 Degrees C, 40 Degre. |
| Max. Torque | 18.9 in-lb |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | Washdown, Variable Speed |
| Motor Bearings | Ball |
| Motor Design | Permanent Magnet DC |
| Motor Diameter | 6-1/2" |
| Motor Service Factor | 1, 1.00 |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Motor Type | Permanent Magnet DC |
| Mounting | C-Face, C-face with Rem. |
| Nameplate RPM | 2,500 |
| Output Voltage | 90V DC |
| Overall Height | 7 in |
| Overall Length | 16 1/2 in, 16-1/2" |
| Overall Width | 6 1/2 in |
| Phase | DC |
| Product Type | DC |
| Rotation | Reversible, CW/CCW |
| RPM | 2500 |
| RPM Range | 1801-3000, 1,801-3,000 |
| Service Factor (SF) | 1.00 |
| Shaft Dia. | 5/8 in, 5/8" |
| Shaft Diameter | 5/8" Keyed |
| Shaft Length | 1-7/8", 1 7/8 in |
| Ship Weight | 32 lbs. |
| Speed Range | 50 to 1 |
| Standards | UL Listed and C-UL List. |
| Thermal Protection | None |
| Voltage | 90, 90V DC |
| Voltage Compatibility | 90V DC |
| Volts | 90VDC |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonTP | B000TKCPPO | 1116.24 | 1 | In Stock | 2 | Dayton | | 1116.24 @ 1 |
 | Zoro | G3475114 | 1337.39 | 1 | In Stock | | Dayton | | 1337.39 @ 1 |
| grainger.ca | WWG2Z846 | 1507.86327603 | 1 | In Stock | | DAYTON | 32.0 | 1507.86327603 @ 1 |
 | sustainablesupply.com | C1553600 | 1582.88 | 1 | In Stock | | Dayton | 32.0 | 1582.88 @ 1 |
 | emotorpro.com | 2Z846 | 2163.16 | 1 | In Stock | | Dayton | 32.0 | 2163.16 @ 1 |
