- mpnFSEX-24PMB-MOD
- brandname: Federal Signal
- manufacturername: Federal Signal

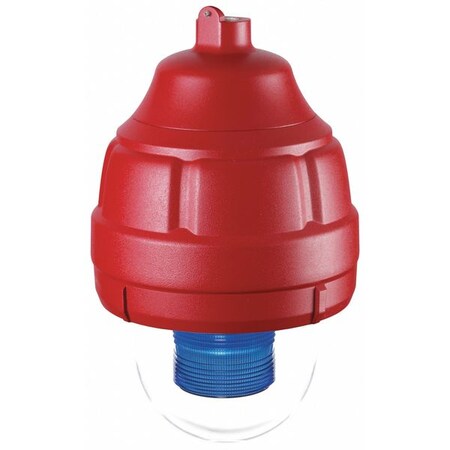

Federal Signal Strobe, Explosion-Proof, 4-Wire, in-Rush Limited, red housing, Blue
- Brand: Federal Signal
- PartNumber: FSEX-24PMB-MOD
- Model: FSEX-24PMB-MOD
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Federal Signal
- Label: Federal Signal
Attributes
| Key | Value |
|---|
| Approvals | CSFM, cUL, UL |
| Audible Alarm Type | Visual |
| Ballast | 9999 |
| Candlepower | 850 |
| Certification Listings | UL;cUL;CSFM |
| Color | Blue |
| Connection Type | Wired |
| Country of Origin (subj. | United States |
| Current Drawn | 1.9A DC |
| Depth | 8 53/64 in |
| Diameter | 8 53/64 in |
| Effective Candela | 850 |
| Enclosure Rating | Type 4X;IP66 |
| Environmental Rating | Marine Rated;Explosion . |
| Estimated Lamp Life | 10,000 Hrs |
| Explosion Proof | Yes |
| Family Series | Federal Signal Visual S. |
| Features | Corrosion Resistant, Ex. |
| Flash Pattern | Strobe |
| Flash Rate/Minute | 80 |
| Flashes Per Minute | 80 |
| Flashes per Minute | 80 |
| For Use With | Security, Refinery, Che. |
| Green Environmental Att. | Does Not Contain Methyl. |
| Gross Weight | 0 lbs |
| Hazardous Location Rated | No |
| Height | 11 3/8 in, 11.37 |
| Housing Material | Aluminum |
| IP Rating | IP66 |
| Item | Explosion-Proof Strobe . |
| Item Number | FSEX-24PMB-MOD |
| Lamp Life | 10,000 hr |
| Lamp Life Hours | 10000 |
| Lamp Type | Strobe Tube, Strobe |
| Lens Color | Blue |
| Lens Color - Vehicle Li. | Blue |
| Lens Design | Fresnel |
| Lens Material | Polycarbonate |
| Light Output | 2,000,000 Candela |
| Light Source | Strobe |
| Manufacturer | Federal Signal |
| Manufacturer Part Number | FSEX-24PMB-MOD |
| Marine Listed | Yes |
| Mount Dependent | Yes |
| Mount Type | 3/4-Inch NPT Pendant;Ce. |
| Mounting | 3/4 " NPT Pendant, Ceil. |
| Net Weight | 0 lbs |
| Nominal Voltage | 24 VDC |
| Operating Current | 1.9 A, 1.9 |
| Operating Temp. | -67 Degrees to 150 Deg. |
| Operating Temperature | -67-150 ?F, -67 to 150 |
| Operating Voltage | 24 VDC |
| Part Number | FSEX-24PMB-MOD |
| Power Source | 24V DC |
| Product Series | FSEX |
| Product Type | Explosion-Proof Strobe . |
| Rating | IP66, Marine, NEMA 4X |
| Standards | UL Listed for Class I, . |
| Voltage | 24V DC, 24VDC |
| Warranty | Five Year |
| Width | 8 53/64 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | gordonelectricsupply.com | FSEX-24PMB-MOD | 2080.0 | 1 | In Stock | 155 | FEDERAL-SIGNAL | | 2080.0 @ 1 |
 | Zoro | G4850087 | 2134.17 | 1 | In Stock | 35 | Federal Signal | 14.2 | 2134.17 @ 1 |
 | Walker Industrial | FSEX-24PMB-MOD | 2134.22 | 1 | In Stock | 17 | Federal Signal | | 2134.22 @ 1 |
| Hawk Electronics | FSEX-24PMB-MOD | 2160.0 | 1 | In Stock | | Federal Signal | | 2160.0 @ 1 |
 | motorsandcontrol.com | FSEX-24PMB-MOD | 2371.35 | 1 | In Stock | | Federal Signal | | 2371.35 @ 1 |
 | Lighting Supply | FSEX-24PMB-MOD | 2409.7 | 1 | In Stock | | Federal Signal | | 2409.7 @ 1 |
 | turtle.com | FED FSEX-24PMB-MOD | 2411.77 | 1 | In Stock | | Federal Signal | | 2411.77 @ 1 |
 | Galco | FSEX-24PMB-MOD-FS | 2626.74 | 1 | In Stock | | Federal Signal | | 2626.74 @ 1 |
 | Platt.com | 0253238 | 4535.31 | 1 | In Stock | | Federal Signal | | 4535.31 @ 1 |
