- mpnE75-14-NIST
- brandname: Flir
- manufacturername: Flir

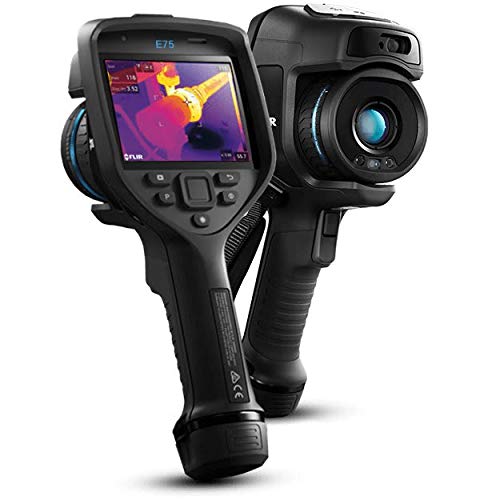

FLIR E75-14-NIST E75 w/MSX 320 x 240 Resolution, 30Hz w/ 14 Degree Lens w/NIST and FLIR Tools+
- Brand: FLIR
- PartNumber: E75-14-NIST
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: FLIR
- Label: FLIR
Attributes
| Key | Value |
|---|
| Accuracy | ?2?C (?3.6?F) or ?2% of. |
| Additional lenses | 42? 24? |
| Alarm | Moisture alarm, insulat. |
| Area | 1 in live mode |
| Area measurement inform. | No |
| Aspect ratio | 4:3 |
| Audio | Microphone and speaker . |
| Auto Rotation | Yes |
| Automatic hot & col. | Auto-maximum/minimum ma. |
| Battery Life (Operating) | > 2.5 hours at 25?C (68. |
| Battery operating time | Approx. 2.5 hours at 25. |
| Battery size (L x W x H) | 150 x 46 x 55 mm (5.9 x. |
| Battery type | Li-ion battery, charged. |
| Battery voltage | 3.6 V |
| Battery weight | 140 g (4.9 oz.) |
| Camera software update | Use PC software FLIR To. |
| Charging | In camera (AC adapter o. |
| Charging Temperature | 0?C to +45?C (+32?F to . |
| Charging Time (using tw. | 2.5 hours to 90% capaci. |
| Color | Black |
| Color alarm (isotherm) | Above/below/interval/co. |
| Color depth (bits) | 24 |
| Color palettes | Iron, Gray, Rainbow, Ar. |
| Communication Interfaces | USB 2.0, Bluetooth, Wi-. |
| Compass GPS | Yes; automatic GPS imag. |
| Cover Glass Material | Dragontrail |
| Detector Type and Pitch | Uncooled microbolometer. |
| Difference Temperature | Yes |
| Digital Camera | 5 MP, 53? x 41? FOV |
| Digital Zoom | 1-4x continuous |
| Display | 4", 640 x 480 optically. |
| Display Technology | IPS |
| Drop | Designed for 2 m (6.6 f. |
| EMC | ETSI EN 301 489-1 (radi. |
| Emissivity Correction | Yes: variable from 0.01. |
| External Power Operation | AC adapter 90-260 V AC,. |
| f-number | 1.5, 14? |
| Field of view (FOV) | 14? x 10? (29 mm lens) |
| Field of view match | Yes |
| Focal Length | 29 mm (1.41 in.), 14? |
| Focus | Continuous, one-shot la. |
| Gallery | Yes |
| Housing material | PCABS with TPE, magnesi. |
| Humidity (Operating and. | IEC 60068-2-30/24 hours. |
| Image Adjustment | Automatic Automatic max. |
| Image Frequency | 30 Hz |
| Image Modes | Infrared, visual, MSX, . |
| Image Sketch | Yes: on infrared images. |
| Infrared Image | Yes |
| IR Resolution | 320 x 240 |
| Languages | In Stock |
| Laser | Class 2, 0.05-40 m (1.6. |
| Laser Distance Measurem. | Yes, on-screen |
| Lens Identification | Automatic |
| Measurement Corrections | Yes |
| Measurement Presets | No measurement, center . |
| METERLiNK | Wireless connection (Bl. |
| Minimum Focus Distance | 1.0 m (3.28 ft.), 14? |
| Minimum Focus Distance . | 1.0 m (3.28 ft.), 14? |
| MSX | Embosses visual details. |
| Non-Radiometric IR or V. | H.264 to memory card |
| Non-radiometric IR vide. | H.264 or MPEG-4 over Wi. |
| Object Temperature Range | -20 to +120?C (-4 to 24. |
| Operating Temperature R. | -15?C to 50?C (5?F to 1. |
| Packaging Size | 500 x 190 x 370 mm (19.. |
| Picture-in-Picture | Resizable and movable |
| Power Management | Automatic shut-down and. |
| Programmable Buttons | 1 |
| Radio Spectrum | ETSI EN 300 328 FCC Par. |
| Radiometric IR video re. | Real-time radiometric r. |
| Radiometric IR video st. | Yes, over UVC or Wi-Fi |
| Reference Temperature | Yes |
| Remote Control | Using FLIR Tools (using. |
| Resolution | 640 x 480 pixels (VGA) |
| Safety | EN/UL/CSA/PSE 60950-1 |
| Screening | 0.5?C (0.9?F) accuracy . |
| Shock & Vibration &. | 25 g / IEC 60068-2-27, . |
| Sketch | From touchscreen |
| Spatial resolution (IFO. | 0.63 mrad/pixel, 14? |
| Spectral Range | 7.5 - 14.0 ?m |
| Spot Meter | 1 in live mode |
| Storage Media | Removable SD card (8 GB) |
| Storage Temperature Ran. | -40?C to 70?C (-40?F to. |
| Text | Text from predefined li. |
| Thermal Sensitivity/NETD | < 50 mK, 14? at +30?C (. |
| Time Lapse [Infrared] | No |
| Tripod Mounting | UNC 1/4"?20 |
| UltraMax | Super-resolution proces. |
| USB | USB Type-C: data transf. |
| USB - Standard | USB 2.0 High Speed |
| Video Out | DisplayPort over USB Ty. |
| Viewfinder | No |
| Viewing Angle | 80? |
| Visual Video Streaming | Yes |
| Voice | 60 seconds built-in mic. |
| Weight & Dimensions. | 1 kg (2.2 lbs), 27.8 x . |
| WiFi | Peer to peer (ad hoc) o. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | E75-14-NIST | 6712.0 | 1 | In Stock | | Flir | | 6712.0 @ 1 |
