Genteq 5KCP39JFBA83S

mpn3204HS
brandname: Genteq
manufacturername: Genteq

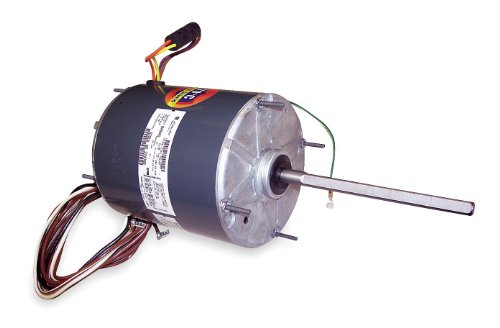

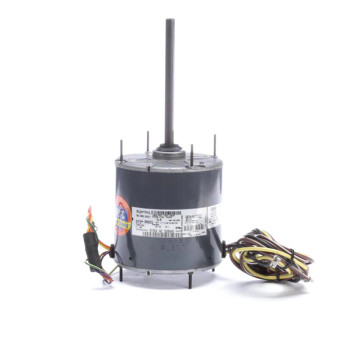

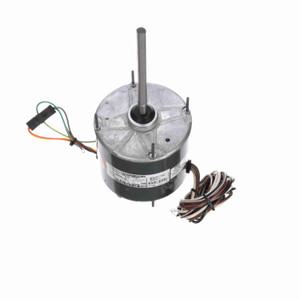

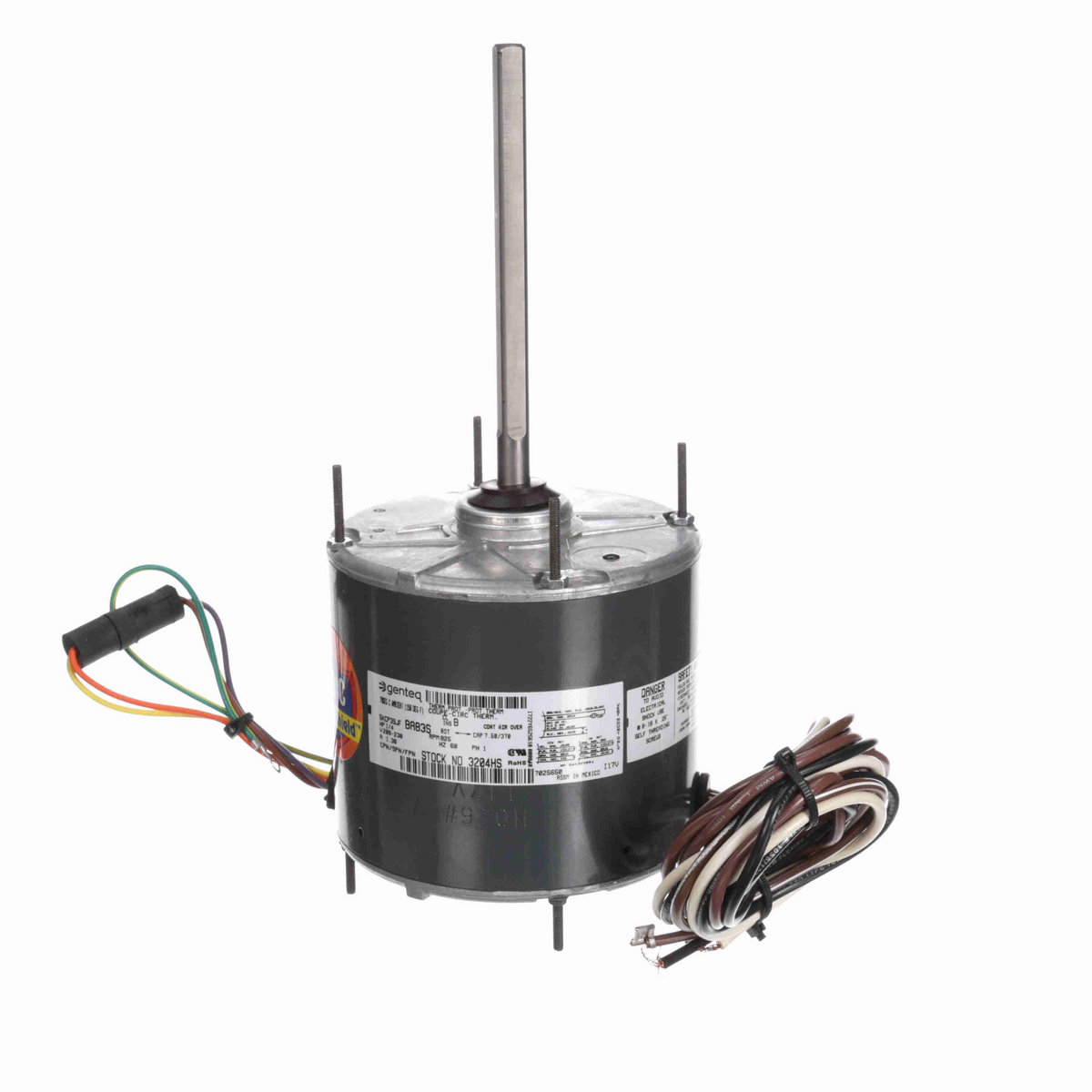

Condenser Fan Motor, 1/4 HP, 825 RPM, 60 Hz

Condenser Fan Motor, 1/4 HP, 825 RPM, 60 Hz

zoom

Brand: Genteq
PartNumber: 5KCP39JFBA83S
Model: 5KCP39JFBA83S
PackageQuantity: 1
Binding: Misc.
Manufacturer: GENTEQ
Label: GENTEQ

Attributes

Key	Value
Amps	1.30, 1.3
Bearings	Ball
Brand	Genteq
C-Dimension (In.)	11.96
Capacitor	7.5MFD/370VAC
Catalog Number	3204HS
CE	N
CSA	Y
DE Bearing Type	Ball
DEM Reference	3204HS
Duty	Continuous Air Over
Electrical Type	Permanent Split Capacit.
Enclosure	Totally Enclosed Air Ov.
Enclosure Type	TEAO (Totally Enclosed .
Frame	48
Frame Material	Rolled Steel
Frequency	60
HP	1/4
Insulation Class	B
IP Code	-
KVA Code	-
Max Ambient	70?C
Maximum Ambient Tempera.	70? C
Motor Orientation	Any
Mounting	Band/Stud
Mounting Orientation	All Angle
Mounting Type	Round Belly Band
Notes	Quick connects on capac.
Number of Speeds	1
ODE Bearing Type	Ball
Overall Length	11.96"
Phase	1
Product Category	HVAC/R Motors > Conden.
Product Type	PSC (Permanent Split Ca.
Rotation	Reversible
RPM	825
Service Factor	1
Shaft Diameter (In.)	0.500
Shaft Extension (In.)	6.50
Shaft Type	Double Flat
Ship Weight	13 lbs.
Speeds	1
Type of Overload Protec.	Thermally Protected
UL	Recognized
Volts	208-230, 230, 208

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	AmazonSC	B07T3Q5B2W	159.81	1	In Stock		Genteq		159.81 @ 1
	cshincorporated.com	G3204HS	206.61	1	In Stock		Genteq	20.0	206.61 @ 1
	Dreisilker	GE-RBC-3204HS	220.53	1	In Stock		Genteq		220.53 @ 1
	emotorpro.com	3204HS	239.72	1	In Stock		Genteq	13.0	239.72 @ 1
