Hubbell Wiring Systems HBLPTW

mpnHBLPTW
brandname: Hubbell
manufacturername: Hubbell

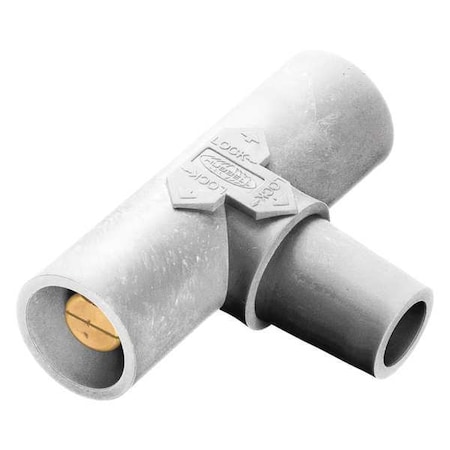

Hubbell Wiring Systems HBLPTW Single Pole Paralleling"T" Connector, Female-Male-Male Connection, 300/400 Amp, 600VAC/250VDC, 4-3/4" Width, White

Hubbell Wiring Systems HBLPTW Single Pole Paralleling"T" Connector, Female-Male-Male Connection, 300/400 Amp, 600VAC/250VDC, 4-3/4" Width, White

zoom

Brand: Hubbell Wiring Systems
PartNumber: HBLPTW
Model: HBLPTW
Color: White
PackageQuantity: 1
Binding: Misc.
Manufacturer: Hubbell
Label: Hubbell

Attributes

Key	Value
Additional Features	Standard Product
Amperage	400 A
Amperage Rating	400A
Amps AC/DC	300/400AC/DC
Application	High Ampacity
Approvals	cUL, UL
Cable Range	N/A
Color	White
Color Family	White
Comments	Paralleling Tee
Compatible with Series	16
Conductor Material	Brass
Connection Description	F-M-M
Connector Color	White
Contact Material	Brass
Country of Origin	CN - China
Current / amperage rati.	400 A
Current Rating	400 A
Current rating	400 A
ECCN	EAR99
Family Series	Hubbell Connectors, 16 .
Fits	UL1691
Gender Configuration	Male-Male-Female
Gross Weight	1.05 lbs
Housing Material	Thermoplastic Elastomer
Industry Standard(s)	UL 498 And UL1691
Insulation	Insulated Body
Insulator Material	Thermoplastic Elastomer.
Item	Paralleling Tee
Item Number	HBLPTW
Male/Female	Female-Male-Male
Manufacturer	Hubbell
Manufacturer Part Number	HBLPTW
Material	Thermoplastic Elastomer.
Minimum Operating Tempe.	-40 Degrees C
NEMA Rating	12, 3R, 4X
Net Weight	0 lbs
No. of Pins	1) In, 2) Out- Male-Fem.
Number of pins	1) In, 2) Out- Male-Fem.
Operating temperature	Max Continuous- 75 Degr.
Overall Height	3.18 in
Overall Length	4.65 in
Overall Width	1.54 in
Product Series	16
Product Type	Paralleling Tee
RoHS	,Paralleling Tee
Series	16
Single Pole Device Style	Taper Nose
Standard	UL 498 And UL1691
Standards	cUL, UL
Style	Paralleling Tee Femal-M.
Temperature Range (F)	-40-167 ?F
Terminal Connection	N/A
Type	Tees and 3-Fers
UNSPSC	39121710
Voltage	600 VAC
Voltage Rating	600V AC/250V DC
Voltage rating descript.	600V AC/DC
Wattage	360000

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	HBLPTW	77.45	1	In Stock		Hubbell		77.45 @ 1
	Zoro	G6803553	85.5	1	In Stock	11	Hubbell	1.0	85.5 @ 1
	sustainablesupply.com	C1170278	116.37	1	In Stock		Hubbell	1.0	116.37 @ 1
	MRO Supply	1027203	127.57	1	In Stock		Hubbell Wiring		127.57 @ 1
	Galco	HBLPTW-HBBL	131.32	1	In Stock		Hubbell	1.05	131.32 @ 1
	Graybar	25051219	191.5312	1	In Stock		Hubbell Wiring Device - Kellems		191.5312 @ 1
