IDEC RU2SA110

B008FM48JE

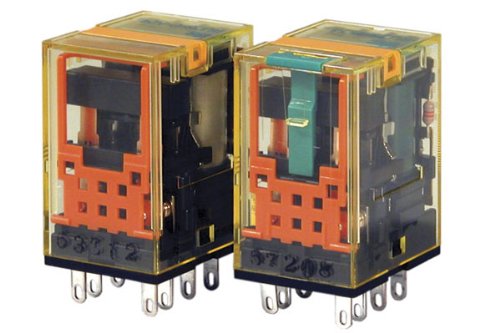

IDEC Corp. RU2SA110 RELAY DPDT 110VAC 10 AMP W/LI

IDEC Corp. RU2SA110 RELAY DPDT 110VAC 10 AMP W/LIzoom

Attributes

Key Value
AC contacts rating @R10A / 250V AC
AMP Rating10
Base Product NumberRU2S-A
Bifurcated ContactNo
Body dimensions27.5x21x35mm
BrandIDEC
CategoryRelays
Coil current8.2mA
Coil Current7.1 mA, 8.4 mA to 10 mA.
Coil Insulation-
Coil Power1.4W
Coil Resistance4.55 kOhms, 4.55 k?
Coil resistance4.55k?
Coil TypeNon Latching
Coil Voltage120VAC, 110 VAC ; 115 V.
Contact ConfigurationDPDT
Contact current max.10A
Contact Current Rating10 A
Contact FormDPDT, DPDT (2 Form C)
Contact materialAg
Contact MaterialSilver Tin Oxide Indium.
Contact Rating (Current)10 A
Contact TypeDPDT
Contact Voltage Rating300 VAC
ContactsDPDT
Contacts configurationDPDT
Control Voltage110
Current Rating10 A
DC contacts rating @R10A / 30V DC
Depth21mm
DescriptionRELAY GEN PURPOSE DPDT .
Detailed DescriptionGeneral Purpose Relay D.
Digi-Key Part Number1885-1251-ND
Dimensions21 W x 35 H x 27.5 D mm
DiodeNo
EnclosurePlastic
Family SeriesIDEC Relays, RU Series
FeaturesLighted Indicator, Mech.
FunctionGeneral Purpose
Gross Weight0.0769 lbs
Height35mm
Isolation Coil To Conta.2.5kV ac
Item NumberRU2S-A110
Length27.5mm
ManufacturerIDEC
Manufacturer Part NumberRU2S-A110
Manufacturer Product Nu.RU2S-A110
Manufacturer Standard L.52 Weeks
MaterialPlastic
Max Current10 A
Maximum Switching Power.2.5 kVA
Maximum Switching Power.300 W
Maximum Switching Volta.250V AC
Maximum Switching Volta.30V dc
Mechanical LatchYes
MfrIDEC
Mountingsocket, Plug In
Mounting MethodPlug In
Mounting TypeSocket Mount, Socketabl.
Must Operate Voltage96 VAC
Must Release Voltage36 VAC
Net Weight0.0769 lbs
Nominal Coil Voltage120 VAC
Number of Connections8
Number of Electrical Co.8
Number of pins8
Number of Pins8
Operate Time20 ms
Operating temperature-55...70?C
Operating Temperature-55?C ~ 60?C
PackageBulk
Primary TypePower Relays
Product HeaderRU Series General Purpo.
Product SeriesRU
Product StatusActive
Published Coil Voltage110 VAC
Push-to-TestNo
Rated coil voltage110V AC
Rated voltage250V AC
Rating @ 120 VAC10 A
Rating @ 220/240/277 VAC10 A
Rating @ 24/28/30 VDC10 A
Relay seriesRU
Relay TypeElectromechanical, Gene.
Relay variantindustrial
Release Time20 ms
Safety GuidedNo
Seal Rating-
SeriesRU, RU Series
Special FeaturesLatching Lever ; LED In.
StandardscULus ; CSA ; TUV ; CE
Status IndicatorYes
StockStock
Switched voltagemax. 125V DC,
Switching Voltage250VAC, 30VDC - Max
Terminal TypePlug In
Terminals.110 in. Flat Blade
Termination.110 " Flat Blade, QC T.
Termination StylePlug In
TypeGeneral Purpose Relay
Type of relayelectromagnetic
Voltage110 VAC
Voltage Rating250 V
