IXYS IXTH24N50L

mpnIXTH24N50L
brandname: IXYS
manufacturername: IXYS

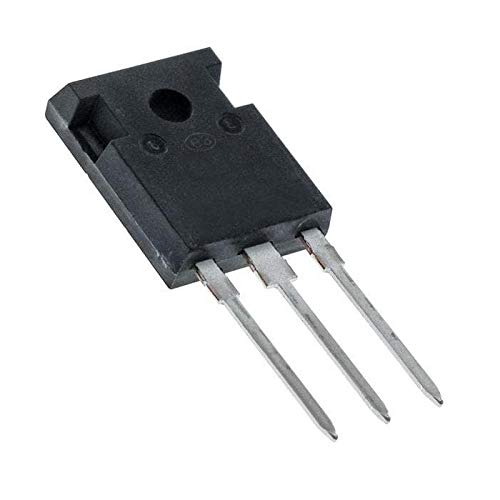

IXYS IXTH24N50L Single N-Channel 500 V 300 mOhm 300 W Power Mosfet - TO-247 AD - 1 item(s)

IXYS IXTH24N50L Single N-Channel 500 V 300 mOhm 300 W Power Mosfet - TO-247 AD - 1 item(s)

zoom

Brand: IXYS
PartNumber: IXTH24N50L
Model: IXTH24N50L
PackageQuantity: 1
Manufacturer: IXYS
Label: IXYS

Attributes

Key	Value
Base Product Number	IXTH24
Case	TO247-3
Category	Discrete Semiconductor .
Current - Continuous Dr.	24A (Tc)
Drain current	24A
Drain to Source Voltage.	500 V
Drain-source voltage	500V
Drive Voltage (Max Rds .	20V
Drive Voltage (Max Rds .	20V
Features of semiconduct.	linear power mosfet
FET Feature	-
FET Type	N-Channel
Gate charge	160nC
Gate Charge (Qg) (Max) .	160 nC @ 20 V
Input Capacitance (Ciss.	2500 pF @ 25 V
Kind of channel	enhanced
Kind of package	Tube
Manufacturer	IXYS
Mfr	IXYS
Mounting	THT
Mounting Type	Through Hole
On-state resistance	300m?
Operating Temperature	-55?C ~ 150?C (TJ)
Package	Tube
Package / Case	TO-247-3
Part Status	Active
Polarisation	unipolar
Power dissipation	400W
Power Dissipation (Max)	400W (Tc)
Product Status	Active
Rds On (Max) @ Id, Vgs	300mOhm @ 500mA, 20V
Reverse recovery time	500ns
Series	-, Linear
Supplier Device Package	TO-247 (IXTH)
Technology	MOSFET (Metal Oxide)
Type of transistor	N-MOSFET
Vgs (Max)	?30V
Vgs(th) (Max) @ Id	5V @ 250?A

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Future Electronics	2170751	15.12	1	In Stock		IXYS		15.12 @ 1
	Digi-Key	1652479	22.07	1	In Stock		IXYS		22.07 @ 1
	TME	IXTH24N50L	29.95	1	In Stock		IXYS		29.95 @ 1
