Marathon U760

B007ZQNKSG

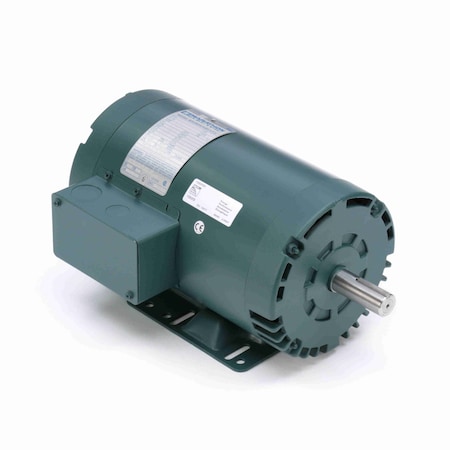

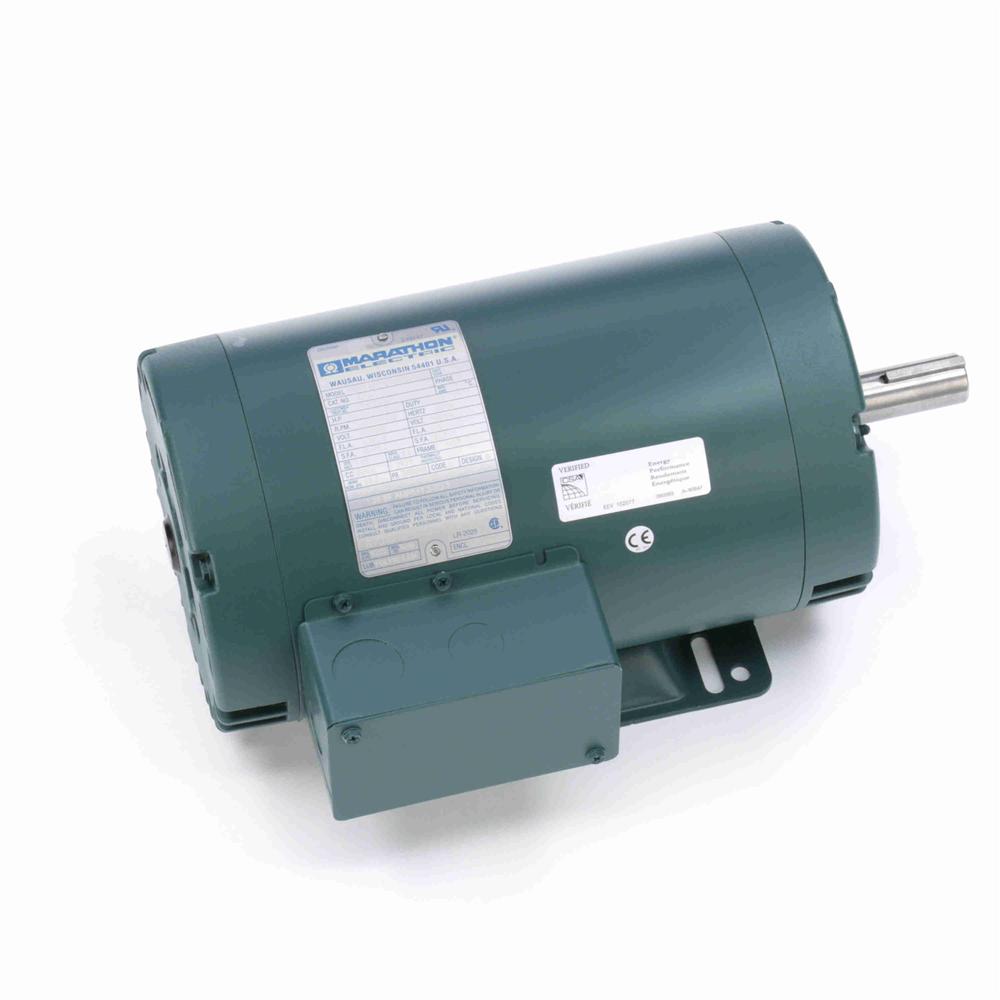

Marathon U760 General Purpose Motor, 3 Phase Inverter Duty - 10:1 Constant Torque, 2 hp, 1800 RPM, 208-230/460V, 5.8/2.9 amp

Marathon U760 General Purpose Motor, 3 Phase Inverter Duty - 10:1 Constant Torque, 2 hp, 1800 RPM, 208-230/460V, 5.8/2.9 ampzoom

Attributes

Key Value
Alternate Mfr Part Numb.145TTDR6029
Amps5.8/2.9
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
CompositionSteel
CT Speed Range10:1
Current Rating5.8 ; 2.9 A
Duty CycleContinuous
Efficiency0.865, 86.5
Efficiency %86.5 %
EnclosureODP, Drip Proof
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof), D.
Family SeriesMarathon Electric Motor.
Frame145T
Frequency60/50 Hz
Gross Weight48.25 lbs
Horsepower2 hp
Horsepower Rating2 hp
HP2
Hz60
Insulation ClassF
Insulation TypeClass F
Inverter DutyYes
Item NumberU760
ManufacturerMarathon Electric
Manufacturer Model #145TTDR6029
Manufacturer Part Number145TTDR6029
Maximum Ambient Tempera.40? C
Model Number145TTDR6029
Motor Shell Length8.5"
MountingBase
Mounting OrientationHorizontal
Mounting TypeFoot Mount, Rigid, Rigi.
NEMA Frame145T
Net Weight37 lbs
Nominal Voltage208 VAC, 240 VAC, 415 V.
Number of Speeds1
Overall Length13.62 ", 13.62"
Overload ProtectionThermostat
Package Quantity1
Phase3, 3 Phase
Product SeriesNEMA PREMIUM GENERAL PU.
Product TypeThree Phase
RotationReversible
RPM1745, 1745 RPM, 1700 - .
Service Factor1.15
Shaft Diameter7/8"
Shaft Length2.37"
Ship Weight50 lbs.
Special FeaturesService Factor - 1.15
StandardsUL Recognized
Supply Voltage230 VAC ; 460 VAC
TypeSquirrel Cage Inverter .
UPC Code722856012500
Voltage208-230/460
Voltage (AC)208-230 VAC, 460 VAC
Volts230, 460
Weight48.00

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comU760404.01In StockMARATHON404.0 @ 1
thumbzoomState SupplyBG3011E458.861In StockMarathon48.0458.86 @ 1
thumbzoomptacsolutions.comU760513.271In StockMarathon Motors513.27 @ 1
thumbzoomemotorpro.comU760582.351In StockMarathon50.0582.35 @ 1
thumbzoomapexindustrialautomation.comU760588.921184Marathon588.92 @ 1
thumbzoomMRO Supply2268377607.621In StockMarathon Electric607.62 @ 1
thumbzoomasapelectricmotors.comMARU760638.791In StockMARATHON638.79 @ 1
thumbzoomZoroG306629384735.991In Stock35Marathon735.99 @ 1
thumbzoomGalcoU760-MARA755.661In StockMarathon Electric48.25755.66 @ 1
us.rs-online.com72241988803.312Marathon Motors803.3 @ 1
industrialmotors.comU760804.6153MARATHON ELECTRIC804.6 @ 1
thumbzoomVoomi SupplyU760830.971In StockMarathon Motors830.97 @ 1
thumbzoomcbtcompany.comU760851.561In StockMarathon Electric Motors851.56 @ 1
kirbyrisk.com2462773926.521In StockMarathon926.52 @ 1
uri.comU7601530.481In StockMarathon37.01530.48 @ 1
