Marathon Electric GT1108

B006KM5PBQ

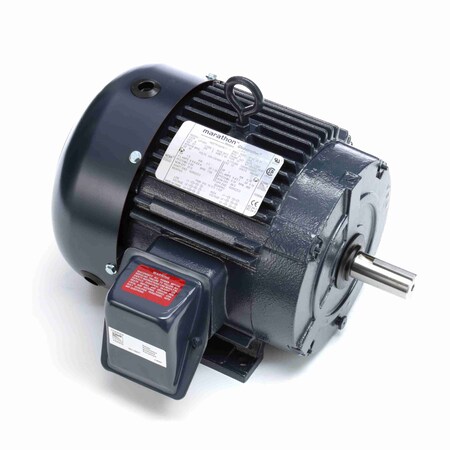

Marathon GT1108 184T Frame 184TTFC6080 TEFC General Purpose Motor, 3 Phase, Rigid Base, Ball Bearing, 2 hp, 1200 RPM, 1 Speed, 575 VAC

Marathon GT1108 184T Frame 184TTFC6080 TEFC General Purpose Motor, 3 Phase, Rigid Base, Ball Bearing, 2 hp, 1200 RPM, 1 Speed, 575 VACzoom

Attributes

Key Value
Amps2.4 A
BearingsBall
CC NumberCC003A
Country of Origin (subj.China
Duty CycleContinuous
Efficiency88.5%
Enclosure MaterialIron
Enclosure TypeTEFC (Totally Enclosed .
Frame184T
Full Load Amps2.4
HP2
Hz60
IncludesConduit Box
Ins. ClassF
Insulation ClassF
Inverter RatedYes
ItemGeneral Purpose Motor
Length Less Shaft13-1/16"
Manufacturer Model #184TTFC6080
Manufacturers Warranty .1 yr.
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
Mounting OrientationHorizontal
Mounting TypeRigid Base
Nameplate RPM1,182
No. of Speeds1
Nominal Efficiency81.5%
Number of Speeds1
Overall Length15-13/16", 14.8"
Phase3
Product Type3 Phase
RotationReversible
RPM1180
Service Factor1.15
Shaft Dia.1-1/8"
Shaft Diameter1-1/8"
Shaft Length2-3/4", 2.75"
Ship Weight113 lbs.
StandardsUL Recognized (E49747),.
Voltage575
Volts575

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
emotorpro.comGT1108675.491In StockMarathon113.0675.49 @ 1
grainger.caAOSGT1108754.163240421In StockMARATHON MOTORS113.0754.16324042 @ 1
thumbzoomZoroG7037577967.181In Stock10Marathon967.18 @ 1
