Mersen MPDB69113

B00JOQHEDW

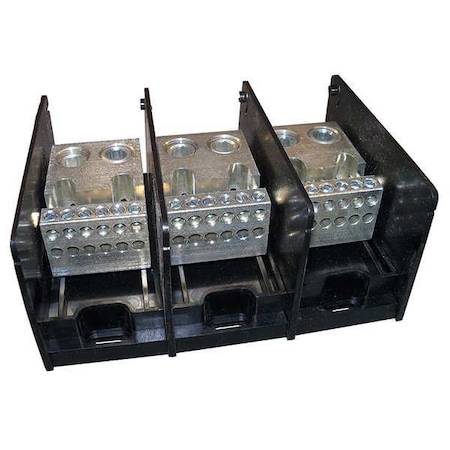

Pwr Dist Block, 760A, 3P, 12P Secndary, 600V

Pwr Dist Block, 760A, 3P, 12P Secndary, 600Vzoom

Attributes

Key Value
(2)x 500-4AWG & (12)x 4.Wire Gauge
(3P) Three PolePole
1000VVoltage (V)
2Case Quantity
3.55''Height (in)
5.7''Length (in)
7.89''Width (in)
760AAmperage
782001452520UPC
ApprovalsCSA, UL
Body/Insulating Materia.Material
BrandMersen
ColorBlack
CompositionGlass-Fill Polycarbonate
Current Rating760 A
Current Rating (AC)760 A
Current Stock47
Depth3.55 in
Direct Screw MountMounting
Family SeriesMersen, formerly Ferraz.
For additional options .Notes
For Line Aluminum Wire .500 kcmil
For Line Aluminum Wire .4 AWG
For Line Copper Wire Si.500 kcmil
For Line Copper Wire Si.4 AWG
For Load Aluminum Wire .4 AWG
For Load Aluminum Wire .14 AWG
For Load Copper Wire Si.4 AWG
For Load Copper Wire Si.14 AWG
Gross Weight5.4 lbs
Hex/Screw Size & Type (.13/16-16 x 1.06
Hex/Screw Size & Type (.5/16-24 x .38
Hole Diameter (Primary)0.88 in
Hole Diameter (Secondar.0.27 in
Includes CoverNo
Input Wire Range500 kcmil-4 AWG
International ShippingNo
ItemPower Distribution Block
Item NumberMPDB69113
Lead TimeExpected to ship in 1-2.
Length5.7 in
Length (Straight Wirewa.5.7 in
Line Side Wire Size Ran.4 AWG - 500 kcmil
Line/Load ConnectionBox Lug/Box Lug
ManufacturerMersen, formerly Ferraz.
Manufacturer Part NumberMPDB69113
MersenBrand
Mounting TypePanel Mount
MPDB69113Stock Code
MpnMPDB69113
Net Weight3.185 lbs
Number of Inputs per Po.2
Number of Outputs per P.12
Number of Poles3
Output Wire Range4-14 AWG
Overall Depth3.55 in
Overall Length5.7 in
Overall Width7.89 in
Primary TypePower Distribution
Product Height3.55 in
Product Length5.7 in
Product SeriesMPDB
Product Width7.89 in
RoHSYes
ROHS Compliant, ULUL Listed
SeriesMPDB Series
SKUZO-G5364387
SubCategoryElectrical
UL ComplianceUL1953
UPC782001452520
Voltage Rating1000 V
Voltage Rating (AC)600 VAC
Width7.89 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB00JOQHEDW204.341In Stock3MERSEN204.34 @ 1
thumbzoomsustainablesupply.comC1176280219.21In StockMersen3.23219.2 @ 1
thumbzoomZoroG5364387222.991121Mersen6.46222.99 @ 1
cbtcompany.comMPDB69113239.651In StockMersen239.65 @ 1
us.rs-online.com71938022244.5318Mersen244.53 @ 1
thumbzoomsimsupply.comZO-G5364387265.17147Mersen265.17 @ 1
thumbzoomturtle.comCS MPDB69113269.41In StockMERSEN269.4 @ 1
thumbzoomRaptor SuppliesAF8ECR300.55597651In StockMERSEN300.5559765 @ 1
thumbzoomGalcoMPDB69113-SHAW301.0911Mersen, formerly Ferraz Shawmu5.4301.09 @ 1
standardelectricsupply.com2263462310.661In StockMersen310.66 @ 1
thumbzoombulbspro.comMPDB69113335.31In StockMersen335.3 @ 1
Airline HydraulicsFERRAZ MPDB69113565.561In StockMersen565.56 @ 1
