Mersen MPDB69153

B00K4G2QPM

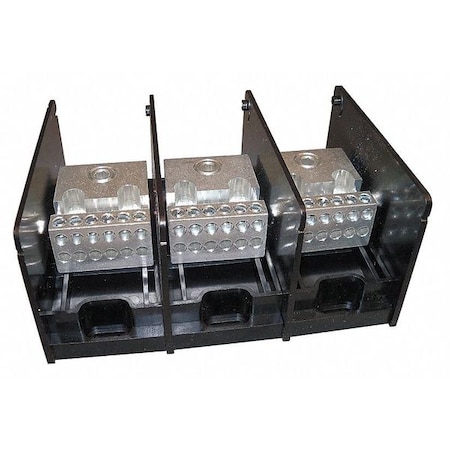

Pwr Dist Block, 310A, 3P, 12P Secndary, 600V

Pwr Dist Block, 310A, 3P, 12P Secndary, 600Vzoom

Attributes

Key Value
(1)x 350-6AWG & (12)x 4.Wire Gauge
(3P) Three PolePole
1000VVoltage (V)
2Case Quantity
3.55''Height (in)
310AAmperage
5.7''Length (in)
7.89''Width (in)
782001451271UPC
ApprovalsCSA, UL
Body/Insulating Materia.Material
BrandMersen
ColorBlack
CompositionGlass-Fill Polycarbonate
Current Rating310 A
Current Rating (AC)310 A
Current Stock22
Depth3.55 in
Direct Screw MountMounting
Family SeriesMersen, formerly Ferraz.
For additional options .Notes
For Line Aluminum Wire .350 kcmil
For Line Aluminum Wire .6 AWG
For Line Copper Wire Si.350 kcmil
For Line Copper Wire Si.6 AWG
For Load Aluminum Wire .4 AWG
For Load Aluminum Wire .14 AWG
For Load Copper Wire Si.4 AWG
For Load Copper Wire Si.14 AWG
Gross Weight2.75 lbs
Height3.55 "
Hex/Screw Size & Type (.11/16-16 x .88
Hex/Screw Size & Type (.5/16-24 x .38
Hole Diameter (Primary)0.75 in
Hole Diameter (Secondar.0.27 in
Includes CoverNo
Input Wire Range350 kcmil-6 AWG
International ShippingNo
ItemPower Distribution Block
Item NumberMPDB69153
Lead TimeExpected to ship in 1-2.
Length5.7 in
Length (Straight Wirewa.5.7 in
Line Side Wire Size Ran.6 AWG - 350 kcmil
Line/Load ConnectionBox Lug/Box Lug
ManufacturerMersen, formerly Ferraz.
Manufacturer Part NumberMPDB69153
MersenBrand
Mounting TypePanel Mount
MPDB69153Stock Code
MpnMPDB69153
Net Weight2.75 lbs
Number of Inputs per Po.1
Number of Outputs per P.12
Number of Poles3
Output Wire Range4-14 AWG
Overall Depth3.55 in
Overall Length5.7 in
Overall Width7.89 in
Primary TypePower Distribution
Product Height3.55 in
Product Length5.7 in
Product SeriesMPDB
Product Width7.89 in
RoHSYes
ROHS Compliant, ULUL Listed
SeriesMPDB Series
SKUZO-G5258565
SubCategoryElectrical
UL ComplianceUL1953
UPC782001451271
Voltage Rating1000 V
Voltage Rating (AC)600 VAC
Weight5.4 lbs.
Width7.89 in, 0 in
