Molex / Waldom 39-29-1067

mpn0039291067
brandname: Molex
manufacturername: Molex

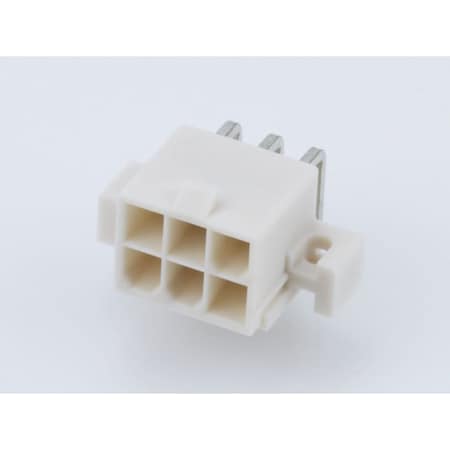

39-29-1067, Conn Power HDR 6 POS 4.2mm Solder RA Thru-Hole 6 Terminal 1 Port Mini-Fit Jr Bag (50 Items)

39-29-1067, Conn Power HDR 6 POS 4.2mm Solder RA Thru-Hole 6 Terminal 1 Port Mini-Fit Jr Bag (50 Items)

zoom

Brand: Molex / Waldom
PartNumber: 39-29-1067
Model: 39-29-1067
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Mfr Part Numb.	5569-06A1-210
Applications	General Purpose, Indust.
Color	Natural
Connector Type	Header
Contact Finish	Matte Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Length - Mating	-
Contact Length - Post	0.142" (3.60mm)
Contact Material	Brass
Contact Plating Thickne.	2.54 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	13 A
Current Rating (Amps)	-
Family Name	Mini-Fit Jr.
Fastening Type	Locking Ramp
Features	Mounting Flange
Flammability Rating	UL 94V-0
Hole Center to Center	4.2 mm
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.378" (9.60mm)
Insulation Material	Polyamide (PA66), Nylon.
Mated Stacking Heights	-
Material	Nylon
Material Flammability R.	UL94 V-0
Max. Temp.	260?C
Max. Voltage	600V
Mfr	Molex
Mounting Type	Through Hole, Right Ang.
Number of Circuits	6
Number of Contacts	6
Number of Positions	6
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Orientation	Right Angle
Overall Contact Length	-
Part Status	Active
Pitch	4.20 mm (0.165")
Pitch - Mating	0.165" (4.20mm)
Plating Material	Matte Tin
Primary Type	Soft Shell
Row Spacing - Mating	0.165" (4.20mm)
Series	5569 Series
Shrouding	Shrouded - 4 Wall
Special Features	Low-Halogen
Standards	CSA Certified; UL E29179
Style	Board to Cable/Wire
Terminal Finish	Matte Tin Plated
Terminal Type	Through Hole
Termination	Solder
Type	Right Angle Header
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	MOLEX 39-29-1067	0.64	85	2915		MOLEX		0.64 @ 100
	Onlinecomponents.com	39-29-1067	0.68	1	860		MOLEX / WALDOM		0.68 @ 100
	Power and Signal Group	0039291067	0.6801	2000	100		Molex		0.6801 @ 2000
	jensentools.com	10188419	0.85	1	100		Molex		0.85 @ 100
	NEP Electronics	39-29-1067	0.8824	85	2915		Molex		0.8824 @ 100
	Newark	56H8178	1.01	4000	100		MOLEX		1.01 @ 4000
	Component Electronics	299-8616	1.23	1	250		Molex		1.23 @ 100
	us.rs-online.com	70374067	1.41	4000	100		Molex Incorporated		1.41 @ 4000
	TME	MX-39-29-1067	1.48	2	100		MOLEX		1.48 @ 100
	Radwell	39-29-1067	2.25	10	100		MOLEX		2.25 @ 100
	Zoro	G705910526	93.75	1	100		Molex		93.75 @ 100
