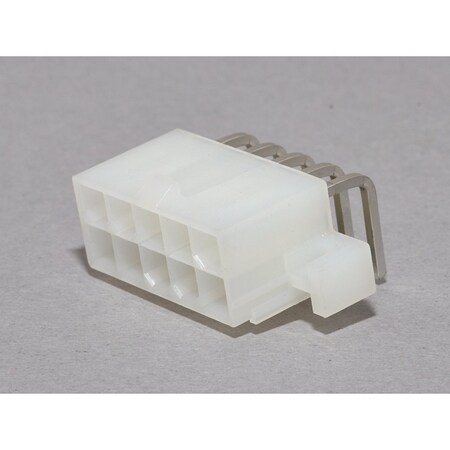

39-29-1108, Conn Power HDR 10 POS 4.2mm Solder RA Thru-Hole 10 Terminal 1 Port Mini-Fit Jr Bag (50 Items)
- Brand: Molex / Waldom
- PartNumber: 39-29-1108
- Model: 39-29-1108
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
| Key | Value |
|---|
| Agency Approvals | CSA ; UL ; TUV |
| Alternate Mfr Part Numb. | 5569-10A1 |
| Alternate Part No. | 538-39-29-1108 |
| Angle | Right Angle |
| Applications | General Purpose, Indust. |
| Brand | Molex |
| Circuits (Loaded) | 10 |
| Circuits (maximum) | 10 |
| Color | Natural |
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thicknes. | 100.0?in (2.54?m) |
| Contact Finish Thicknes. | 100.0?in (2.54?m) |
| Contact Gender | Pin (Male) |
| Contact Length - Mating | - |
| Contact Length - Post | 0.142" (3.60mm) |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current - Maximum per C. | 13.0A |
| Current Rating | 13 A |
| Current Rating (Amps) | - |
| Durability (mating cycl. | 30 |
| Family Name | Mini-Fit Jr. |
| Fastening Type | Locking Ramp |
| Features | Mounting Flange |
| Flammability | 94V-0, 94V-2 |
| Housing Material | Nylon 6/6, Nylon |
| Ingress Protection | - |
| Insulation Color | Natural |
| Insulation Height | 0.378" (9.60mm) |
| Insulation Material | Polyamide (PA66), Nylon. |
| Lock to Mating Part | Yes |
| Manufacturer | Molex |
| Manufacturer Part No. | 39-29-1108 |
| Mated Stacking Heights | - |
| Material - Metal | Brass |
| Material - Plating Mati. | Matte Tin |
| Material - Plating Term. | Matte Tin |
| Material Flammability R. | UL94 V-2 |
| Max. Cycles at Max. Pro. | 1 |
| Mfr | Molex |
| Mounting Angle | Right |
| Mounting Hole Size | 2.4 mm |
| Mounting Type | Through Hole, Right Ang. |
| Number of Circuits | 10 |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Positions Loa. | All |
| Number of Rows | 2 |
| Operating Temperature | -40 to +105 ?C, - |
| Orientation | Right Angle |
| Overall Contact Length | - |
| Packaging | Bulk |
| Part # Aliases | 0039291108 5569-10A1 |
| Part Status | Active |
| PCB Locator | Yes |
| PCB Retention | Yes |
| PCB Thickness - Recomme. | 1.78mm |
| Pin Length | 3.5 mm |
| Pin Spacing | 0.165 " |
| Pitch | 4.2 mm, 4.20 mm (0.165") |
| Pitch - Mating | 0.165" (4.20mm) |
| Pitch - Mating Interface | 4.20mm |
| Pitch - Termination Int. | 4.20mm |
| Plating Material | Matte Tin |
| Plating min - Mating | 2.540?m |
| Plating min - Terminati. | 2.540?m |
| Polarized to Mating Part | Yes |
| Polarized to PCB | Yes |
| Primary Type | Soft Shell |
| Process Temperature max. | 260 |
| Product Category | Headers & Wire Housings |
| Product Type | Header Assemblies |
| Row Spacing | 5.5 mm |
| Row Spacing - Mating | 0.165" (4.20mm) |
| Series | 5569, 5569 Series |
| Shrouded | Fully |
| Shrouding | Shrouded - 4 Wall |
| Special Features | Low-Halogen |
| Strain Relief | Low Profile |
| Style | Board to Cable/Wire |
| Temperature Range - Ope. | -40? to +105?C |
| Termination | Solder, Through Hole |
| Termination Interface: . | Through Hole |
| Termination Style | Through Hole |
| Tradename | Mini-Fit Jr. |
| Type | Header, Pin Header |
| Voltage Rating | -, 600 V |
