Molex / Waldom 39-29-6168

mpn0039296168
brandname: Molex
manufacturername: Molex

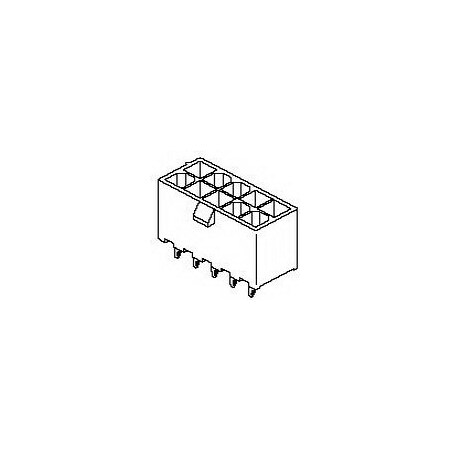

39-29-6168, Conn Power HDR 16 POS 4.2mm Solder ST Thru-Hole 16 Terminal 1 Port Mini-Fit Jr Bag (10 Items)

Brand: Molex / Waldom
PartNumber: 39-29-6168
Model: 43202-6101
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Mfr Part Numb.	5566-16AGS-210
Alternate Part No.	538-39-29-6168
Applications	General Purpose, Indust.
Brand	Molex
Color	Natural
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	30.0?in (0.76?m)
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Gender	Pin (Male)
Contact Length - Mating	-
Contact Length - Post	0.138" (3.50mm)
Contact Material	Brass
Contact Plating	Gold
Contact Shape	Square
Contact Type	Male Pin
Current Rating	9 A
Current Rating (Amps)	-
Family Name	Mini-Fit Jr.
Fastening Type	Locking Ramp
Features	-
Housing Material	Nylon
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.504" (12.80mm)
Insulation Material	Polyamide (PA66), Nylon.
Manufacturer	Molex
Manufacturer Part No.	39-29-6168
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Angle	Vertical
Mounting Type	Through Hole
Number of Circuits	16
Number of Contacts	16
Number of Positions	16
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Orientation	Vertical
Overall Contact Length	-
Package Quantity	1
Packaging	Bulk
Part # Aliases	0039296168 A556616AGS210
Part Status	Active
Pitch	4.2 mm, 4.20 mm (0.165")
Pitch - Mating	0.165" (4.20mm)
Plating Material	Gold
Primary Type	Soft Shell
Product Category	Headers & Wire Housings
Product Type	Header Assemblies
Row Spacing	5.5 mm
Row Spacing - Mating	0.165" (4.20mm)
Series	5566, 5566 Series
Shrouding	Shrouded - 4 Wall
Special Features	Low-Halogen
Style	Board to Cable/Wire
Termination	Solder
Termination Style	Through Hole
Tradename	Mini-Fit Jr.
Type	Vertical Header, Pin He.
Voltage Rating	-, 600 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Power and Signal Group	0039296168	3.0603	150	25	Molex	3.0603 @ 150
Onlinecomponents.com	39-29-6168	3.73	1	41	MOLEX / WALDOM	3.73 @ 25
NEP Electronics	39-29-6168	3.9118	1200	25	Molex	3.9118 @ 1200
us.rs-online.com	70967163	5.43	1	25	Molex Incorporated	5.43 @ 25
Newark	28M9390	6.48	1	25	MOLEX	6.48 @ 25
Radwell	39-29-6168	12.0	1	25	MOLEX	12.0 @ 25
swatee.com	39-29-6168	12.8	1	74	Molex	12.8 @ 25
Zoro	G100416753	1557.0	300	25	Molex	1557.0 @ 300
