Molex / Waldom 15-91-3023

mpn15-91-3023
brandname: Molex
manufacturername: Molex

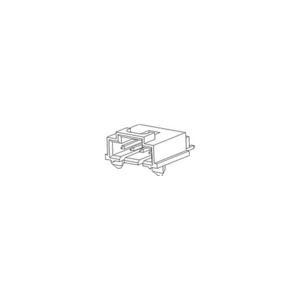

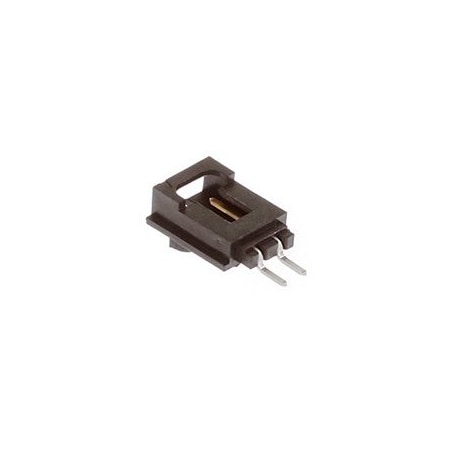

15-91-3023, Conn Shrouded Header HDR 2 POS 2.54mm Solder RA SMD SL Tube (25 Items)

15-91-3023, Conn Shrouded Header HDR 2 POS 2.54mm Solder RA SMD SL Tube (25 Items)

zoom

Brand: Molex / Waldom
PartNumber: 15-91-3023
Model: 15-91-3023
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Mfr Part Numb.	70634-0071
Applications	Automotive, General Pur.
Base Product Number	001591
Category	Connectors, Interconnec.
Color	Black
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	29.5?in (0.75?m)
Contact Finish Thicknes.	74.8?in (1.90?m)
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	-
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Current Rating (Amps)	-
Description	CONN HEADER SMD R/A 2PO.
Detailed Description	Connector Header Surfac.
Digi-Key Part Number	WM14764-ND
Family Name	SL
Fastening Type	Latch Holder
Features	Board Guide
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.215" (5.45mm)
Insulation Material	Polyester, Glass Filled
Manufacturer	Molex
Manufacturer Product Nu.	0015913023
Manufacturer Standard L.	32 Weeks
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Type	Surface Mount, Right An.
Number of Circuits	2
Number of Contacts	2
Number of Positions	2
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-
Orientation	Right Angle
Overall Contact Length	-
Package	Tube
Pitch	2.54 mm (0.100")
Pitch - Mating	0.100" (2.54mm)
Plating Material	Gold
Primary Type	Board Mount
Product Status	Active
Row Spacing - Mating	-
Series	SL 70634, 70634 Series
Shrouding	Shrouded - 4 Wall
Special Features	Not Low-Halogen
Style	Board to Cable/Wire
Termination	Solder, Surface Mount
Type	Right Angle Header
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	us.rs-online.com	70967197	1.92	1	280		Molex Incorporated		1.92 @ 10
	Waldom	MOLEX 15-91-3023	1.97	61	7740		MOLEX		1.97 @ 61
	Onlinecomponents.com	15-91-3023	2.26	10	10		Molex		2.26 @ 10
	Hotenda	H1373282	2.593	1	1830		Molex		2.593 @ 10
	jensentools.com	10152398	2.63	1	7679		Molex		2.63 @ 10
	Newark	91M1906	2.86	61	7618		MOLEX		2.86 @ 50
	Mouser	538-15-91-3023	3.54	1	474		Molex		3.54 @ 10
	Digi-Key	3124225	4.133	1	2506		Molex		4.133 @ 10
	Radwell	15-91-3023	7.0	1	10		MOLEX		7.0 @ 10
	AmazonTP	B07QQFT5NG	68.4	1	10	1	Molex / Waldom		68.4 @ 10
	Zoro	G2079144	198.25	1	10		Molex		198.25 @ 10
