Molex 87437-0373

mpn87437-0373
brandname: Molex Incorporated
manufacturername: Molex Incorporated

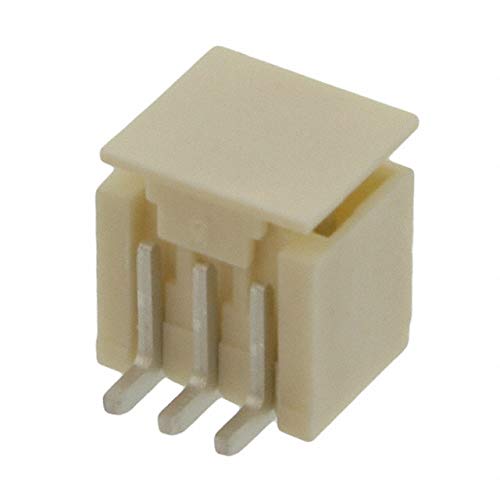

Molex Connector, Header, 3Pos, 1Row, 1.5Mm - 87437-0373

Brand: Molex
PartNumber: 87437-0373
Model: 874370373
PackageQuantity: 1
Manufacturer: Molex
Label: Molex

Attributes

Key	Value
Applications	General Purpose, Medical
Base Product Number	087437
Category	Connectors, Interconnec.
Color	Beige
Connector Type	Header
Contact Finish	Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Finish Thicknes.	-
Contact Length - Mating	0.106" (2.70mm)
Contact Length - Post	-
Contact Material	Brass Alloy
Contact Plating Thickne.	2.54 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	2.5 A
Current Rating (Amps)	-
Description	CONN HEADER SMD 3POS 1..
Detailed Description	Connector Header Surfac.
Digi-Key Part Number	WM7137TR-ND - Tape & Re.
Family Name	Pico-SPOX
Fastening Type	Push-Pull
Features	Pick and Place
Flammability Rating	UL 94V-0
Hole Center to Center	1.5 mm
Ingress Protection	-
Insulation Color	Beige
Insulation Height	0.199" (5.05mm)
Insulation Material	Polyamide (PA), Nylon, .
Manufacturer	Molex
Manufacturer Product Nu.	0874370373
Manufacturer Standard L.	15 Weeks
Mated Stacking Heights	7.4mm
Material	Nylon
Material Flammability R.	UL94 V-0
Max. Temp.	105?C
Max. Voltage	250V AC/DC
Mfr	Molex
Mounting Type	Surface Mount
Number of Circuits	3
Number of Contacts	3
Number of Positions	3
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-
Overall Contact Length	-
Package	Tape & Reel (TR)
Pitch - Mating	0.059" (1.50mm)
Plating Material	Tin
Product Status	Active
Row Spacing - Mating	-
Series	Pico-SPOX 87437, 87437 .
Shrouding	Shrouded - 4 Wall
Standards	CSA Certified; UL E29179
Style	Board to Cable/Wire
Terminal Finish	Tin Plated
Terminal Type	Surface Mount
Termination	Solder
Voltage Rating	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
us.rs-online.com	71475799	0.29	1	6000	Molex Incorporated	0.29 @ 1
RS Delivers	179-0501	0.2988	1	401	Molex	0.2988 @ 1
Onlinecomponents.com	87437-0373	0.385	1	27900	MOLEX / WALDOM	0.385 @ 1
TME	MX-87437-0373	0.562	5	454	MOLEX	0.562 @ 5
Newark	97Y7413	0.594	1	7	MOLEX	0.594 @ 1
Digi-Key	3044379	0.78	1	11472	Molex	0.78 @ 1
Zoro	G400442599	432.0	1	In Stock	Molex	432.0 @ 1
