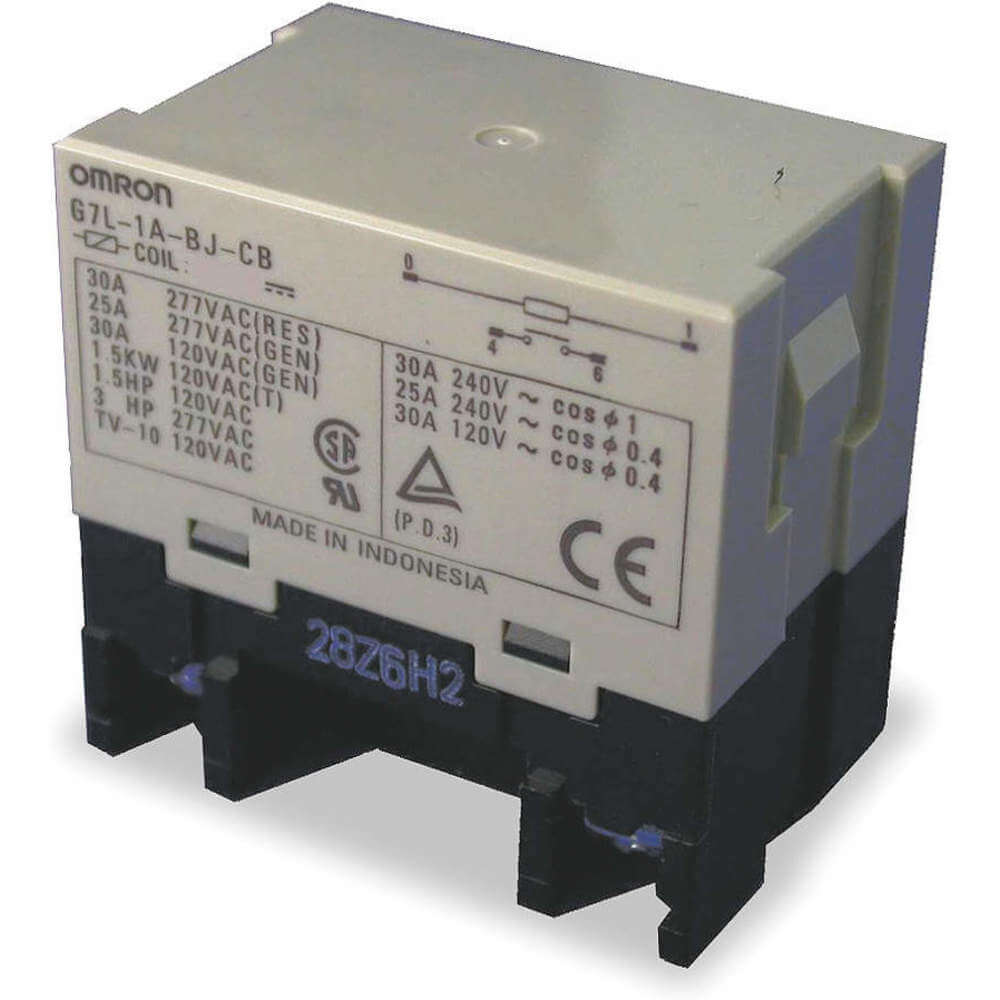

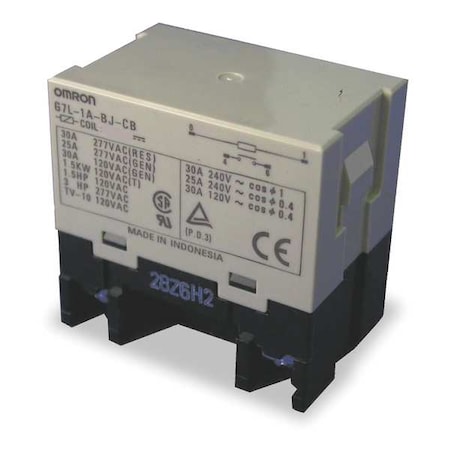

Omron G7L-1A-B-J-CB-DC24

mpnG7L-1A-B-J-CB-DC24
brandname: Omron Electronic Components
manufacturername: Omron Electronic Components

OMRON ELECTRONIC COMPONENTS G7L-1A-B-J-CB-DC24 RELAY

Brand: Omron
PartNumber: G7L-1A-B-J-CB-DC24
PackageQuantity: 1
Manufacturer: Omron Electronics
Label: Omron Electronics

Attributes

Key	Value
AC Contact Rating - Rel.	30A @ 240V
Base Product Number	G7L
Body Depth	2.17 in
Body Depth - Relay	1.36 in
Body Height	2.07 in
Body Height - Relay	2.07 in
Body Width	1.44 in
Body Width - Relay	1.44 in
Category	Relays
Coil Current	79 mA
Coil Insulation	Class B
Coil Resistance	303 Ohms
Coil Type	Non Latching
Coil Voltage	24VDC, 24 VDC
Coil Volts	24V DC
Contact Current Rating	30 A
Contact Form	SPST-NO (1 Form A), SPS.
Contact Form - Relay	SPST-NO
Contact Material	Silver Tin Indium, Silv.
Contact Rating (Current)	30 A
Contact Voltage Rating	250 VAC
Control Voltage	24
Current Rating	30 A
Description	RELAY GEN PURPOSE SPST .
Detailed Description	General Purpose Relay S.
Digi-Key Part Number	Z11032-ND
Dimensions	2.07"H, 1.44"W, 1.36"D
Electrical Connection -.	Screw
Features	Test Button
Flat Pin Width	1.988 in
Function	General Purpose
HP @ 120V	1 1/2
Item - Relay	Enclosed Power Relay
Manufacturer	Omron Electronics Inc-E.
Manufacturer Product Nu.	G7L-1A-B-J-CB-DC24
Manufacturer Standard L.	39 Weeks
Mfr	Omron Electronics Inc-E.
Mounting - Relay	Bracket
Mounting Hole Diameter	0.18 in
Mounting Type	Panel Mount, Chassis Mo.
Must Operate Voltage	18 VDC
Must Release Voltage	3.6 VDC
Number of Pins - Relay	4
Number of Poles	1
Operate Time	30 ms
Operating Temperature	-25?C ~ 60?C
Overall Depth	2.17 in
Overall Height - Relay	2.52 in
Package	Bulk
Pins	4
Power Consumption - Rel.	1.9 W
Power Rating	6600 VA
Primary Type	Power Relays
Product Status	Active
Relay Type	Electromechanical, Gene.
Release Time	30 ms
Seal Rating	-
Series	G7L, G7L Series
Special Features	Test Button
Standards	UL ; CSA ; CE
Switching Voltage	250VAC - Max
Termination	Screw
Termination Style	Screw Terminal
Voltage Rating	250 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Onlinecomponents.com	G7L-1A-B-J-CB-DC24	12.44	1	In Stock	OMRON ELECTRONICS		12.44 @ 1
Zoro	G1861824	15.29	1	In Stock	Omron	0.5	15.29 @ 1
Mouser	653-G7L-1A-BJ-DC24	16.51	1	15	Omron		16.51 @ 1
Verical	G7L-1A-B-J-CB-DC24	16.54	4	40	Omron		16.54 @ 4
sustainablesupply.com	C1168589	17.71	1	In Stock	Omron	0.5	17.71 @ 1
Digi-Key	369337	19.25	1	30	Omron Electronics Inc-EMC Div		19.25 @ 1
us.rs-online.com	70178731	19.64	1	In Stock	Omron Electronic Components		19.64 @ 1
Newark	89C6699	23.17	20	In Stock	OMRON ELECTRONIC COMPONENTS		23.17 @ 10
Airline Hydraulics	204641	28.0	1	In Stock	Omron		28.0 @ 1
Raptor Supplies	AB4HRR	42.1352685	1	In Stock	OMRON		42.1352685 @ 1
