Panasonic Industrial Devices ECW-H12103JV

mpnECW-H12103JV
brandname: Panasonic
manufacturername: Panasonic

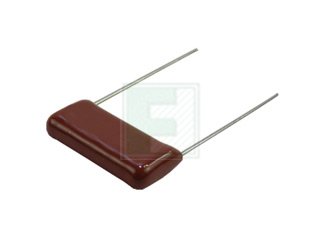

PANASONIC INDUSTRIAL DEVICES ECW-H12103JV ECWH Series 1250 V 0.01 uF ?5 % LS=15 mm Metallized Polypropylene Film Capacitor - 25 item(s)

PANASONIC INDUSTRIAL DEVICES ECW-H12103JV ECWH Series 1250 V 0.01 uF ?5 % LS=15 mm Metallized Polypropylene Film Capacitor - 25 item(s)

zoom

Brand: Panasonic Industrial Devices
PartNumber: ECW-H12103JV
Model: ECW-H12103JV
PackageQuantity: 1
Manufacturer: PANASONIC INDUSTRIAL DEVICES
Label: PANASONIC INDUSTRIAL DEVICES

Attributes

Key	Value
Alternate Parts	ECWH12
Applications	High Frequency, Switchi.
Base Product Number	ECW-H
Body dimensions	18x8x15mm
Capacitance	10000pF, 0.01 uF, 10000.
Capacitance Range	0.001 to 0.099 uF
Category	Capacitors
Configuration	Radial
Dielectric Material	Polypropylene (PP), Met.
Element Material	Polypropylene Metallized
Features	-
Height - Seated (Max)	0.650" (16.50mm)
Lead Free Status / RoHS.	RoHS Compliant
Lead Spacing	0.591" (15.00mm)
Lead Type	Straight
Manufacturer	PANASONIC
Manufacturer Part Number	ECW-H12103JV
Manufacturer Standard L.	16 Weeks
Maximum Operating Tempe.	105 C
Mfr	Panasonic Electronic Co.
Minimum Operating Tempe.	-40 C
Mounting	THT
Mounting Type	Through Hole, PCB Mount
Operating Temperature	-40, -40?C ~ 105?C
Operating temperature	-40...105?C
Operating voltage	1.25kV DC
Package	Bulk
Package / Case	Radial
Packaging	Bulk, Bulk Pack
Part Status	Active
Ratings	-
Series	ECWH Series, ECW-H(V)
Size / Dimension	0.709" L x 0.315" W (18.
Standard Package	100
Terminal pitch	15mm
Termination	Through Hole, PC Pins
Tolerance	5% %, ?5%
Type of capacitor	polypropylene
Voltage Rating	1250 VDC
Voltage Rating - AC	354V
Voltage Rating - DC	1250V (1.25kV)

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	TME	ECWH12103JV	0.351	1000	284		PANASONIC		0.351 @ 1000
	Onlinecomponents.com	ECW-H12103JV	0.43	1	480		PANASONIC		0.43 @ 1
	TTI	ECW-H12103JV	0.455	100	7500		Panasonic		0.455 @ 100
	iodParts	ECW-H12103JV	0.577	500	700		Panasonic		0.577 @ 500
	Newark	49W3444	0.671	1000	284		PANASONIC		0.671 @ 1000
	Future Electronics	8029098	0.672	1000	284		Panasonic		0.672 @ 1000
	us.rs-online.com	70260403	1.45	1000	284		Panasonic Electronic Components		1.45 @ 1000
	Digi-Key	269102	1.633	5000	284		Panasonic Electronic Components		1.633 @ 1
