Panduit LAM3B1/0-38-6Y

B00B5P6J7C

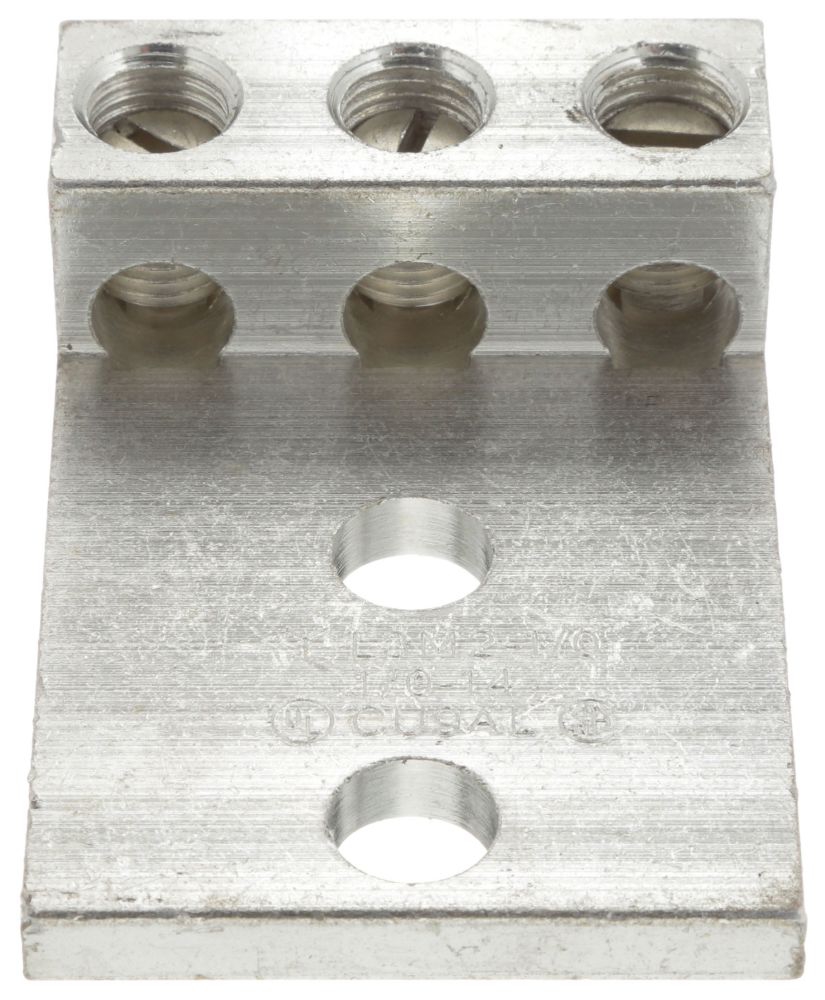

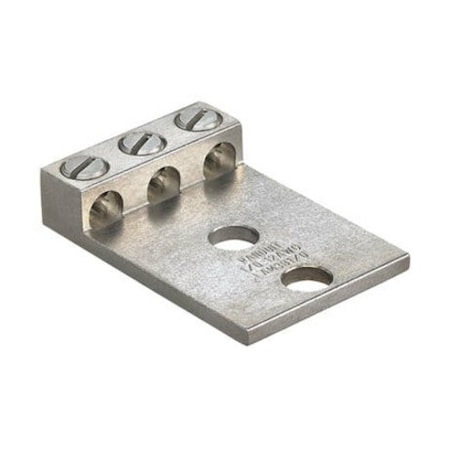

Panduit LAM3B1/0-38-6Y Three Barrel Lug, Two Hole, #14 AWG - 1/0 AWG Conductor Size Range, 3/8" Stud Hole Size, 1.00" Stud Hole Spacing, 0.25" Tongue Thickness, 2.00" Width, 0.88" Overall Height, 2.91" Overall Length

Panduit LAM3B1/0-38-6Y Three Barrel Lug, Two Hole, #14 AWG - 1/0 AWG Conductor Size Range, 3/8" Stud Hole Size, 1.00" Stud Hole Spacing, 0.25" Tongue Thickness, 2.00" Width, 0.88" Overall Height, 2.91" Overall Lengthzoom

Attributes

Key Value
ApprovalsCSA, UL
Base Product NumberLAM3B1
BrandPanduit, Pan-Lug?
Catalog NumberLAM3B1/0-38-6Y
CategoryConnectors, Interconnec.
Color-
Conductors3
Contact FinishTin
Contact MaterialAluminum
Country of OriginUnited States, US - Uni.
Country of Origin (subj.United States
DescriptionCONN TERM RECT LUG 1/0-.
Detailed DescriptionTerminal Connector Rect.
Diameter - Barrel ID-
Diameter - Barrel OD-
Diameter - Ring ID-
Digi-Key Part Number298-14631-ND
ECCNEAR99
Family SeriesPanduit Terminals, Pan-.
Features3 Cable Entries, With S.
FinishTin-Plated
Gross Weight1.3 lbs
Height0.9 in.
InsulationNon-Insulated
ItemLug Compression Connect.
Item NumberLAM3B1/0-38-6Y
Item TypeMechanical Connectors -.
Length - Overall2.910" (73.91mm)
Lug Wire Size14-1/0 AWG
Made in USAYes
ManufacturerPanduit Corp, Panduit
Manufacturer Part NumberLAM3B1/0-38-6Y
Manufacturer Product Nu.LAM3B1/0-38-6Y
Manufacturer Standard L.2 Weeks
MaterialAluminum, Tin-Plated Al.
Material/CompositionAluminum Alloy
Max Conductor Range1/0 AWG
MfrPanduit Corp
Min Conductor Range14 AWG
Mounting TypeFree Hanging (In-Line)
Net Weight0 lbs
No. of Holes2-Hole
Number of Conductors3
Number of Holes2
PackageBulk
Product SeriesPan-Lug Mechanical
Product StatusActive
Rated Voltage600V
RoHS CompliantYes
SeriesLAM3B
StandardUL Listed and CSA Certi.
Stud Hole Spacing1 in.
Stud Size3/8 in
Stud/Tab Size3/8 Stud
Sub BrandPan-Lug
Tab Thickness0.250" (6.35mm)
Terminal StyleTwo Stud Holes
Terminal TypeLug, Grounding
TerminationScrew
TypeMechanical Lug
UNSPSC39121405
UPC074983592890
UPC Code074983592890
Voltage Rating600
Width - Outer Edges2.000" (50.80mm)
Wire Gauge1/0-14 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcbtcompany.comLAM3B1/0-38-6Y23.051In StockPANDUIT23.05 @ 1
RadwellLAM3B10386Y33.82100In StockPANDUIT33.82 @ 100
thumbzoomDigi-Key456423234.9712Panduit Corp34.97 @ 1
thumbzoomZoroG077108035.131In Stock15Panduit1.335.13 @ 1
Onlinecomponents.comLAM3B1/0-38-6Y36.521In StockPanduit36.52 @ 1
thumbzoomCarlton Bates Company0749835928937.91In StockPANDUIT37.9 @ 1
thumbzoomNewark72K881838.281In StockPANDUIT38.28 @ 1
thumbzoomGalcoLAM3B1/0-38-6Y-PNDT44.316In StockPanduit1.344.31 @ 6
thumbzoomPlatt.com068126047.151In StockPanduit47.15 @ 1
thumbzoomcrescentelectric.com17066250.441In StockPanduit50.44 @ 1
Airline HydraulicsPANDUIT LAM3B1/0-38-6Y53.411In StockPanduit Corp53.41 @ 1
us.rs-online.com7126340856.4916Panduit56.49 @ 1
thumbzoomgordonelectricsupply.comLAM3B1/0-38-6Y279.31In Stock12PANDUIT279.3 @ 1
Graybar250689662439.40481In StockPanduit2439.4048 @ 1
thumbzoomturtle.comPAN LAM3B1/0-38-6Y5222.091In StockPanduit5222.09 @ 1
steinerelectric.com3517986630.241In StockPanduit6630.24 @ 1
