Unknown NMR8S

B0095K9H8W

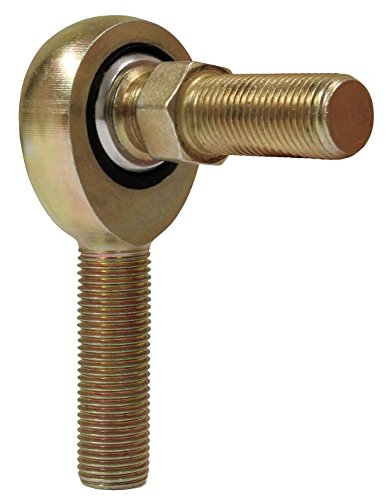

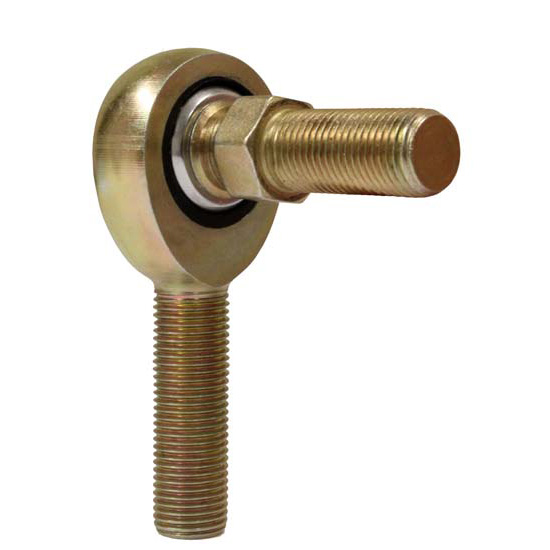

Male Stud Rod End, Nylon/PTFE, Rh, 1/2-20

Male Stud Rod End, Nylon/PTFE, Rh, 1/2-20zoom

Attributes

Key Value
ApplicationLow Load, Moderate Osci.
Ball52100 Steel Spherical
Ball Diameter0.937 in
Ball MaterialAlloy Steel
Ball Material Grade52100
Ball Stud Center Length2 in
Ball Stud MaterialCarbon Steel
Ball Stud Thread Direct.Right Hand
Ball Stud Thread Length1 in
Ball Stud Thread Size1/2"-20
Ball Width5/8 Inch | 15 7/8 Milli.
Bore0.5 Inch | 12.7 Millime.
Bore Diameter1/2 in
Bore Diameter Tolerance+0.0025/-0.0005 in
BrandQa1, QA1 PRECISION PROD
CategorySpherical Plain Bearing.
Current Stock5
Dimension A1/2"-20
Dimension B0.875 in
Dimension C1.125 in
Dimension E1.312 in
Dimension G2.438 in
Dimension H1.5 in
Dimension J3.094 in
EAN806990024428
EnclosureOpen
FinishZinc Plated
GTIN Code806990024428
Harmonized Tariff Code8483.30.80.55
Head Outside Diameter1 1/4 in
Head Width0.5 in
Hole Diameter0.5"
Housing MaterialCarbon Steel
Housing Material FinishChrome Plated
Housing Width0.5 Inch | 12.7 Millime.
Inch - MetricInch
Inner Ring Width0.625 in
International ShippingNo
ItemSpherical Rod End
Load Capacity6430 lbs.
Manufacturer NameQA1 PRECISION PRODUCTS
Material - BallSteel
Material - LinerNylon | Teflon
Material - Outer MemberSteel
Material TypeSteel
Maximum Ball Swivel12 Degrees
MFG. Part #NMR8S
Mounting Thread1/2-20 UNF
MpnNMR8S
Other Features3 Piece | Injection Mol.
Overall Length3 1/16 in
price$ 12.25 / each
Race MaterialNylon/PTFE
RelubricatableNo
Resistance PropertiesCorrosion Resistant, Hi.
Rod End AttachmentMale Threads/Stud
Rod End Construction3-piece
Rod End Head Width0.625"
Rod End Misalign Angle12 degrees
Rod End TypeSpherical Rod End
Seal TypeOpen
Self Lubricating BearingYes
Shank Thread DirectionRight Hand
Shank Thread GenderMale
Shank Thread Length1 1/2 in
Shank Thread Size1/2"-20
SKUZO-G4426414
StandardsISO Certified 9001
Static Radial Load Capa.6,430 lbf
Stud Length1.125 in
Stud ProfileMale
SubCategoryPower Transmission
System of MeasurementInch
ThreadRight Hand
Thread DirectionRight Hand
Thread Length1.500"
Thread Pitch1/2"-20
Thread Size1/2"-20
Thread TypeRH Male
titleNMR8S
TypeMale Studded
UNSPSC31171508
UPC806990024428
Weight / LBS0.23

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Summit RacingQA1-NMR8S7.991In StockQA17.99 @ 1
thumbzoomZoroG44264149.49110Qa10.49.49 @ 1
thumbzoomspeedwaymotors.com721NMR8S9.991In StockQA19.99 @ 1
thumbzoomLily BearingNMR8S10.411In StockQA1 PRECISION PROD0.2310.41 @ 1
us.rs-online.com7221188010.871In StockQA110.87 @ 1
Jegs122-NMR8S12.991In StockQA112.99 @ 1
thumbzoomsimsupply.comZO-G442641417.21In StockQa117.2 @ 1
motionindustries.com0646446517.271In StockQA1 Precision Products17.27 @ 1
thumbzoomsustainablesupply.comC166499118.131In StockQA10.418.13 @ 1
grainger.caGGF20F95318.54434331In StockQA10.418.5443433 @ 1
thumbzoomRaptor SuppliesAB4UYE27.92257651In StockQA127.9225765 @ 1
