Ruland MSPX-25-25-F

B0060M9A5S

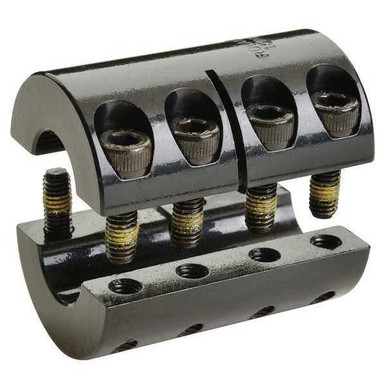

Ruland MSPX-25-25-F Two-Piece Clamping Rigid Coupling, Black Oxide Steel, Metric, 25mm Bore A Diameter, 25mm Bore B Diameter, 45mm OD, 75mm Length

Ruland MSPX-25-25-F Two-Piece Clamping Rigid Coupling, Black Oxide Steel, Metric, 25mm Bore A Diameter, 25mm Bore B Diameter, 45mm OD, 75mm Lengthzoom

Attributes

Key Value
angular misalignment:0
ApplicationFor Applications where .
axial motion:0.00 mm
B1 Max Shaft Penetration37.5 mm
B2 Max Shaft Penetration37.5 mm
Balanced DesignYes
Bore (B1)25 mm
bore - side 1:25 mm
bore - side 2:25 mm
Bore Dia.25 mm
Bore Tolerance+0.050 mm / +0.012 mm
bore tolerance:+.050 / +.012 mm
BrandRULAND
CategoryHardware, Fasteners, Ac.
Clearance Dia.51.5 mm
Clearance Dia. (mm)51.50
Clearance Diameter (C) .51.5 mm
Colorblack oxide
Country of OriginUSA
Country of Origin (subj.United States
coupling material:1215 Lead-Free Steel
coupling type:Two-Piece Clamp Without.
Current Stock11
Description25MMX25MM STEEL RIGID C.
DesignFour Vibration Resistan.
Digi-Key Part Number3188-MSPX-25-25-F-ND
Finishblack oxide
finish / coating:black oxide
Finish SpecificationHot Process Black Oxide.
Forged Clamp ScrewM6
Full Bearing Support Re.No
harmonization code:8483608000
Hex Wrench Size5.0 mm
International ShippingNo
ItemRigid Shaft Coupling
Item - Rigid Shaft Coup.Rigid Shaft Coupling
Length (L)75 mm
Machined FromBar Stock
ManufacturerRuland Manufacturing
Manufacturer Product Nu.MSPX-25-25-F
MaterialSteel, Black Oxide Steel
Material - CouplingsSteel
Material Specification1215 Carbon Steel Bar
Max. Torque3,450 in-lb
Max. Torque (In.-Lbs.)3450
maximum rpm:4000 RPM
Maximum Speed4,000 RPM
MfrRuland Manufacturing
Moment of Inertia1.922 x 10
MpnMSPX-25-25-F
Note 1Performance ratings are.
Number of Screws8 ea
Nypatch? Anti-Vibration.Yes
Outer Diameter (OD)45 mm
Outside Dia.45 mm
outside diameter:45 mm
Overall Length75 mm
overall length:75 mm
PackageBag
parallel misalignment:0.00 mm
Precision Honed Bores?Yes
Product StatusActive
Prop 65Warning: This product c.
ProvidesExtra Holding Power for.
Rated Torque400 Nm
Recommended Gap2.38 mm
Recommended Shaft Toler.+0.000 mm / -0.013 mm
Screw Finishblack oxide
screw finish:black oxide
Screw Location (R)16.9 mm
screw location:16.9 mm
Screw MaterialAlloy Steel with
Screw SizeM6
Screw Size (mm)M6
screw thread size:M6
screw type / material:Alloy Steel with Nypatc.
Seating Torque16 Nm
Series-
series:MSPX
Shaft Locking Type - Co.2 Piece Clamp
SKUZO-G0441612
Small Bore (B2)25 mm
Specifications1.772" (45.00mm) Outer .
SubCategoryPower Transmission
System of MeasurementMetric
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
temperature rating:-40 to +350
TypeRigid Coupling, Two Pie.
UNSPC31163009
UPC634529018101
UPC Code63452901810
Weight (lbs)1.277700
weight:1.43 lbs
With Keyway / Without K.Without Keyway
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG044161290.01In StockRuland1.2790.0 @ 1
us.rs-online.com7217738196.81In StockRuland Manufacturing96.8 @ 1
thumbzoomsimsupply.comZO-G0441612102.83111RULAND102.83 @ 1
thumbzoomRulandMSPX-25-25-F105.191In StockRuland1.2777105.19 @ 1
thumbzoommotionindustries.com02337543105.281In StockRuland Manufacturing Co Inc105.28 @ 1
RS Delivers449-0479107.952129Ruland107.952 @ 1
thumbzoomDigi-Key13599794162.3812Ruland Manufacturing162.38 @ 1
thumbzoomRaptor SuppliesAB9ABG229.87241551In StockRULAND MANUFACTURING229.8724155 @ 1
