SIEMENS ED22B100

B005XH6MGG

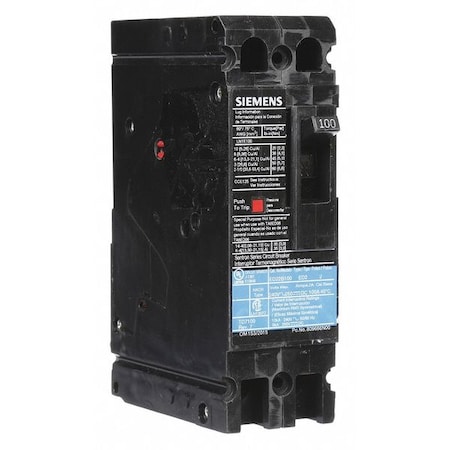

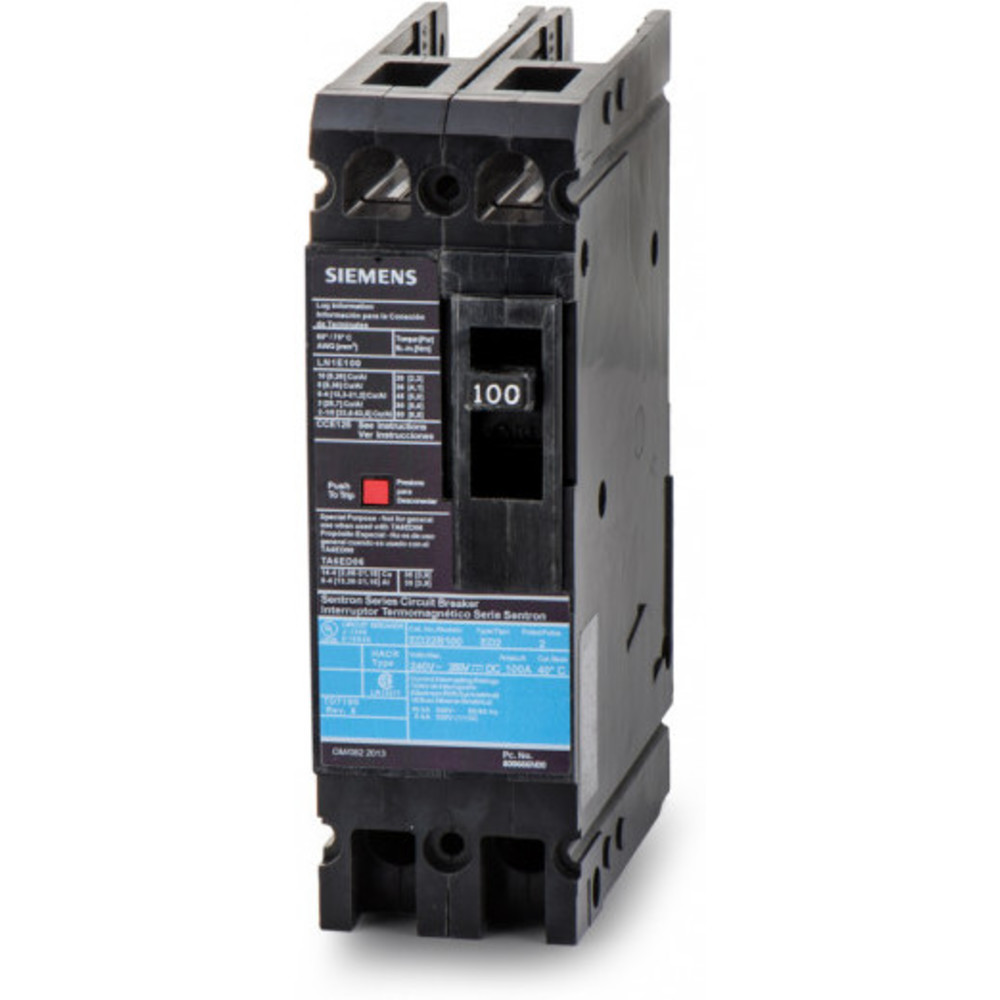

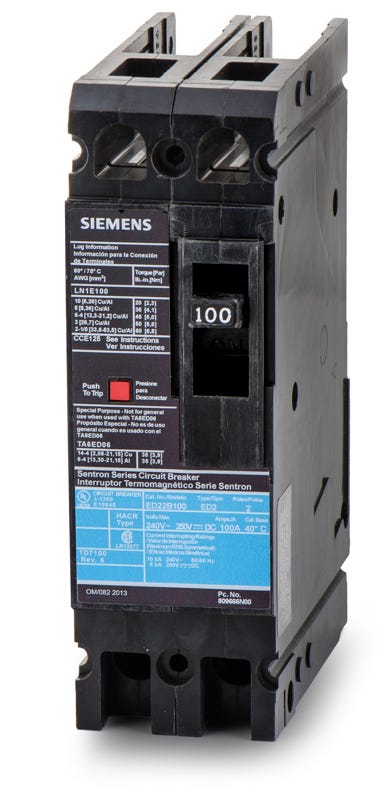

Siemens ED22B100 Circuit Breaker, Type ED2, 100 Amp, 2 Pole

Siemens ED22B100 Circuit Breaker, Type ED2, 100 Amp, 2 Polezoom

Attributes

Key Value
(2P) Double PolePole
100 AmpsAmperage
100AAmp Rating
2''Length (in)
240VACVoltage (V)
3.92''Width (in)
6.35''Height (in)
783643208940UPC
AC Voltage Rating240V AC
Actuator:Varying
Amperage100A
Amps100 A
ApprovalUL and CSA Listed
Auxiliary Contacts:N/A
BrandSiemens
Catalog NumberED22B100
CategoryCircuit Breakers
Circuit Breaker ActuatorToggle
Circuit Breaker Mountin.Lug In Panelboard
Circuit Breaker TypeStandard
Connection:N/A
Country of OriginMX
CSA, UL ListedUL Listed
DC Voltage Rating125/250V DC
Depth4 in
DisplayED22B100 BRKR ED2 2P 24.
ED22B100Stock Code
Enclosure:Varying
Environmental Condition.N/A
Estimated Weight2.70
Frame Size125A/ED
Frame:ED
Frequency Rating:50/60 Hz
Gtin783643208957
Height6.34 in
Height:6 in
High Amp Trip Setting100 A
Instantaneous TripFixed
Interrupt Rating:10KAIC
ItemMolded Case Circuit Bre.
Length:3 in
Load Rating:N/A
Low Amp Trip Setting100 A
ManufacturerSiemens Industry, Inc.,.
Material:N/A
Max. AIR Rating10kA at 240V AC
Max. Wire Size1/0 AWG
Min. Wire Size10 AWG
MountingLug In Panelboard
Mounting TypeBolt-On
MpnED22B100
Number of Poles2
Number Of Poles:2
Operating Temperature:40C
Part NumberED22B100
Phase1, Single
Poles2
SeriesED2, ED
SiemensBrand
Standard:HACR
StandardsHACR Rated, UL Listed
Sub Brand:Sentron
Terminal ConnectionLoad Side Lug
Trip Range:N/A
Trip TypeThermal Magnetic
Trip Type:Thermal-Magnetic
Type:ED2
UNSPSC39121601
UPC783643208957
Upc783643208957
Voltage250
Voltage Rating:240VAC OR 125VDC OR 250.
Width2 in
Width:7.000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricsuppliesonline.comED22B100158.271In StockSIEMENS158.27 @ 1
thumbzoomRaptor SuppliesAG8MTV304.80190651In StockSIEMENS304.8019065 @ 1
thumbzoomAllfusesED22B100400.0912Siemens400.09 @ 1
steinerelectric.com281951416.121In StockSiemens416.12 @ 1
simplybreakers.comED22B100435.991In StockSiemens \/ ITE435.99 @ 1
thumbzoombulbspro.comED22B100516.61In StockSiemens516.6 @ 1
thumbzoomsuperbreakers.comED22B100522.01In StockSiemens522.0 @ 1
thumbzoomRadwellED22B100880.013SIEMENS ITE SIEMENS880.0 @ 1
thumbzoomZoroG3461141911.991In StockSiemens2.6911.99 @ 1
thumbzoomsustainablesupply.comC2928012925.81In StockSiemens2.6925.8 @ 1
standardelectricsupply.com24025951025.071In StockSiemens1025.07 @ 1
Dale-ElectricED22B1001040.451In StockSiemens Industry, Inc.1040.45 @ 1
thumbzoommotorsandcontrol.comED22B1001117.41In StockSiemens2.71117.4 @ 1
thumbzoomcrescentelectric.com4927601354.351In StockSiemens1354.35 @ 1
thumbzoomturtle.comITE ED22B1001449.721In StockSiemens1449.72 @ 1
kirbyrisk.com5596041791.531In StockSiemens1791.53 @ 1
