Schneider Electric HDA260602

B00CONKCHW

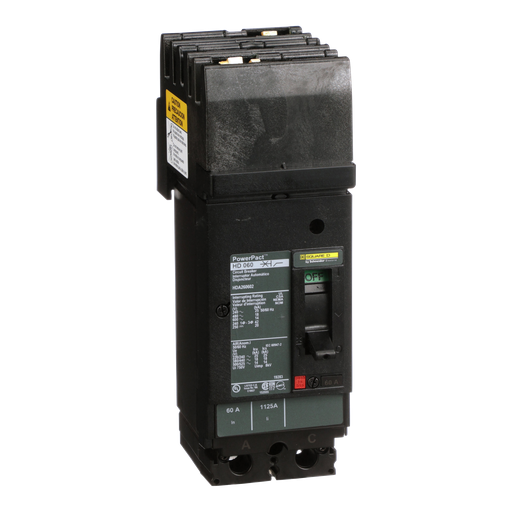

SCHNEIDER ELECTRIC 600-VOLT 60-AMP HDA260602 Molded CASE Circuit Breaker 600V 60A

SCHNEIDER ELECTRIC 600-VOLT 60-AMP HDA260602 Molded CASE Circuit Breaker 600V 60Azoom

Attributes

Key Value
[Ics] Rated Service Bre.25 kA 220/240 V AC 50/6.
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
AC Voltage Rating690V AC
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
Amperage Rating60, 60 A
Amps60 A
ApplicationHACR rated Applications.
Awg GaugeAWG 14...AWG 3/0 alumin.
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D, Square D by S.
Breaking Capacity25 kA 240 V AC 50/60 Hz.
Breaking Capacity CodeD
California Proposition .DINP, which is known to.
Catalog NumberHDA260602
China Rohs RegulationProduct out of China Ro.
Circuit Breaker Actuatortoggle
Circuit Breaker Mountin.I-Line Bracket
Circularity ProfileENVEOLI1311006EN
ColorBlack
Color FamilyBlack
Communication InterfaceModbus || Ethernet
ConnectionAWG 14...AWG 3/0 ALUMIN.
Connection typeI-Line?/Load Lug/Drawout
Contactor TypeMagnetic
Continuous Current Rati.80 %
Control Typetoggle
Country of OriginUnited States, US - Uni.
Current Rating60-60A
Depth86 mm
Device Applicationdistribution
Dimensions2.94 in W x 4.8 in D x .
DisplayHDA260602 Circuit break.
ECCNEAR99
Electrical ConnectionI-Line connection line .
Enclosure TypeNEMA AB1
Environmental DisclosureENVPEP1311006EN
Eu Rohs DirectiveCompliant
FeaturesMercury Free; PVC Free
FrameD
Frame SizeH
Frame TypeH-Frame
Frequency Rating50/60, 50/60 Hz
Gtin785901632573
Height163 mm, 3 in., 6.42
High Amp Trip Setting1450 A
Interrupt Rating14kA, 25 kA at 220/240V.
Ip Degree Of Protectionfront cover IP40 IEC 60.
ItemCircuit breaker,PowerPa.
Item Typecircuit breaker
Length16 mm, 4.8 IN
Line Rated Current60-60 A
Local Signallingswitched off (OFF) 1 tr.
Made in USAYes
Magnetic Hold Current800 A
Magnetic Tripping Curre.1450-1450 A
ManufacturerSchneider Electric
Max. AIR Rating25 kA
Max. Wire Size3/0 AWG (Cu/Al)
Mercury FreeYes
Min. Wire Size14 AWG (Cu/Al)
Mounting Height3 in
Mounting ModeI-Line bracket)
Mounting Supportbracket
Mounting typePlug-In
Mounting TypeI-Line bracket)
MpnHDA260602
Net Weight2.2 kg
Network Frequency50/60 Hz
No. of Poles2-Pole
Number of Poles2
Number Of Slots2 auxiliary switch OF p.
Operating Temperature40 A Degrees C
Phase1
Phase ConnectionAC
Poles2
Poles Description2P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact H
Product Or Component Ty.circuit breaker
Protected Poles Descrip.2t
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Rated Voltage690V AC 50/60 Hz IEC 60.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesHDA
Special FeaturesI-LINE
StandardUL || CSA || NEMA || NO.
StandardsUL || CSA || NEMA || NO.
Sub BrandPowerPact
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Temperature Rating (Deg.104, 104 deg F
Terminal ConnectionI-Line, Lug
Terminal IdentifierAL150HD
Tightening Torque5-5 N.m 2.5-6 mm? (AWG .
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip Range800 to 1450, 800 to 145.
Trip Typethermal-magnetic, Therm.
Trip Unit Technologythermal-magnetic
TypeType HDA
UNSPSC39121616
Upc785901632573
UPC785901632573
Utilisation Categorycategory A
Voltage600
Voltage Rating250 V DC-600 V AC, 600 .
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width4.09, 104 mm, 104 in.
Wire Size14 to 3/0 AWG Al/Cu
Wire Stripping Length16 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomstandardelectricsupply.com2393258479.271In StockSquare D479.27 @ 1
thumbzoomgordonelectricsupply.comHDA260602515.01In Stock10SQUARE D515.0 @ 1
thumbzoomRadwellHDA260602560.01In StockSCHNEIDER ELECTRIC SQUARE D560.0 @ 1
thumbzoomZoroG3980520584.661In Stock45Square D4.45584.66 @ 1
Newark19K9977649.031In StockSQUARE D BY SCHNEIDER ELECTRIC649.03 @ 1
simplybreakers.comHDA260602769.991In StockSchneider769.99 @ 1
thumbzoomsuperbreakers.comHDA2606021009.3111Square D1009.3 @ 1
Graybar251077291022.19041In StockSquare D (Schneider Electric)1022.1904 @ 1
thumbzoommayerelectric.comSQDHDA2606021349.161In StockSQUARE D4.841349.16 @ 1
thumbzoomcrescentelectric.com622751749.711In StockSquare D by Schneider Electric1749.71 @ 1
