- mpnCBC3225T101MR
- brandname: Taiyo Yuden
- manufacturername: Taiyo Yuden

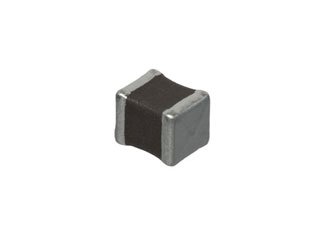

TAIYO YUDEN CBC3225T101MR CB Series 1210 100 uH ?20% Tol. 340 mA Unshielded Surface Mount Power Inductor - 1000 Item(s)
- Brand: Taiyo Yuden
- PartNumber: CBC3225T101MR
- Model: CBC3225T101MR
- PackageQuantity: 1
- Manufacturer: TAIYO YUDEN
- Label: TAIYO YUDEN
Attributes
| Key | Value |
|---|
| Alternate Part No. | 963-CBC3225T101MR |
| Brand | Taiyo Yuden |
| Case Height | 2.5 mm |
| Case Length | 3.2 mm |
| Case Width | 2.5 mm |
| Category | Inductors, Coils, Chokes |
| Current - Saturation (I. | 270mA |
| Current Rating (Amps) | 340 mA, 340mA |
| DC Resistance (DCR) | 1.82Ohm Max |
| Description | FIXED IND 100UH 340MA 1. |
| Detailed Description | 100 ?H Unshielded Drum . |
| Digi-Key Part Number | 587-1628-2-ND - Tape & . |
| Frequency - Self Resona. | 6MHz |
| Height - Seated (Max) | 0.106"" (2.70mm), 0.106. |
| Inductance | 100?H, 100 uH, 100 ?H |
| Inductance Frequency - . | 100kHz, 100 kHz |
| Manufacturer | Taiyo Yuden |
| Manufacturer Part No. | CBC3225T101MR |
| Manufacturer Product Nu. | CBC3225T101MR |
| Material - Core | Ferrite |
| Maximum DC Current | 270 mA |
| Maximum DC Resistance | 1.4 Ohms |
| Mfr | Taiyo Yuden |
| Mounting Type | Surface Mount |
| Operating Temperature | -40?C ~ 105?C |
| Operating Temperature R. | - 40 C to + 105 C |
| Package | Tape & Reel (TR) |
| Package / Case | 1210 (3225 Metric) |
| Package/Case | 1210 (3225 Metric) |
| Packaging | Reel |
| Part Status | Active |
| Product Category | Fixed Inductors |
| Product Status | Not For New Designs |
| Q @ Freq | - |
| Ratings | - |
| Self Resonant Frequency | 6 MHz |
| Series | CB, C Type, CBC |
| Shielding | Unshielded |
| Size / Dimension | 0.126" L x 0.098" W (3.. |
| Supplier Device Package | 1210 (3225 Metric) |
| Termination Style | SMD/SMT |
| Tolerance | ?20% |
| Type | Wirewound, Drum Core, W. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | CBC3225T101MR | 0.103 | 1000 | 13000 | | Taiyo Yuden | | 0.103 @ 1000 |
| Future Electronics | 7116192 | 0.1596 | 1 | 6000 | | TAIYO YUDEN | | 0.1596 @ 1 |
| Mouser | 963-CBC3225T101MR | 0.26 | 1 | 60110 | | Taiyo Yuden | | 0.26 @ 1 |
| Hotenda | H2124530 | 0.27 | 1 | 370 | | Taiyo Yuden | | 0.27 @ 1 |
-2,70mm.jpg) | Digi-Key | 958010 | 0.28 | 1 | 197292 | | Taiyo Yuden | | 0.28 @ 1 |
 | Newark | 30K5410 | 0.281 | 1 | 401 | | TAIYO YUDEN | | 0.281 @ 1 |
 | swatee.com | CBC3225T101MR | 0.354 | 1 | 15618 | | Taiyo Yuden | | 0.354 @ 1 |
| AmazonTP | B076FCNLZR | 202.09 | 1 | In Stock | 5 | TAIYO YUDEN | | 202.09 @ 1 |
