TE Connectivity / AMP 5750477-1

B083LLVHZC

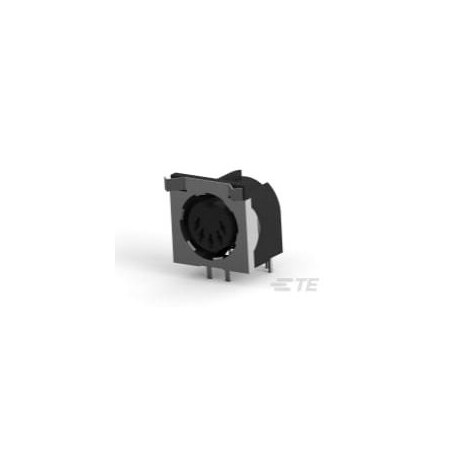

5750477-1, Receptacle Assembly, 5 POSN, Right Angle, W/Front Panel GROUNDING Fingers, Circular DIN (25 Items)

5750477-1, Receptacle Assembly, 5 POSN, Right Angle, W/Front Panel GROUNDING Fingers, Circular DIN (25 Items)zoom

Attributes

Key Value
Alternate Mfr Part Numb.5750477-1
Alternate Part No.571-5750477-1
ApplicationsAudio
Backshell Material, Pla.-
Base Product Number5750477
BrandTE Connectivity / AMP
Cable Opening-
CategoryConnectors, Interconnec.
Color-
Connector & Contact Ter.Printed Circuit Board
Connector ConfigurationCircular DIN
Connector Contact Load .Selectively Loaded
Connector StyleReceptacle
Connector SystemWire-to-Board
Connector TypeHeader, Receptacle, Fem.
Contact Base MaterialBrass
Contact Current Rating .7.5
Contact DesignTuning Fork
Contact Finish - MatingTin
Contact Finish Thicknes.100.0?in (2.54?m)
Contact GenderSocket (Female)
Contact LayoutStaggered
Contact MaterialBrass
Contact Mating Area Pla.Tin
Contact Mating Area Pla.2.54??m?[?100??in?]
Contact PlatingTin, Gold
Contact Termination Are.Tin
Contact Termination Are.2.54??m?[?100??in?]
Contact Transmits (Typi.Power, Signal (Data), S.
Contact TypeSocket
Country of Origin (subj.United States
Current Rating1 A
Current Rating (Amps)7.5A
DescriptionCONN RCPT FMALE DIN 5PO.
Detailed Description5 Position Circular Con.
Digi-Key Part NumberA99366-ND
ESD ProtectionWithout
Fastening TypePush-Pull
FeaturesShielded, -
GenderFemale Socket ; Recepta.
Hot PluggableNo
Housing FinishNylon
Ingress Protection-
Insert MaterialPolycarbonate (PC)
Keyed PositionKeyed
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.5750477-1
Manufacturer Product Nu.5750477-1
Manufacturer Standard L.22 Weeks
Material Flammability R.UL94 V-0
Mating TypePushPull
MfrTE Connectivity AMP Con.
Mounting Feature-
Mounting TypeThrough Hole, Through H.
Number of Contacts5
Number of Positions5
Operating Temperature-55?C ~ 105?C
Operating Voltage250
OrientationKeyed
PackageBulk
PackagingBulk
Panel Mount FeatureWithout
PCB Mount AlignmentWith
PCB Mount OrientationRight Angle
Primary MaterialPlastic
Primary TypeDIN
Product CategoryCircular DIN Connectors
Product StatusActive
Product TypeConnector, Connectors
Reverse GenderNo
SealableNo
Series-
ShapeCircular
Shell Finish-
Shell MaterialPolyamide (PA), Nylon
Shell Size - InsertDIN (180 Degree)
Shell Size, MIL-
Shield MaterialBrass
Shield Plating MaterialNickel
Shield Plating Thicknes.1.27??m?[?50??in?]
Shield Underplate Mater.Nickel
Shield Underplate Thick.1.27??m?[?50??in?]
ShieldedYes
ShieldingShielded
StackedNo
StandardDIN
Strain ReliefWith
TerminationSolder
TypeMini-DIN
Voltage Rating30 VAC, 250VAC
Wire/Cable TypeDiscrete Wire

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 5750477-14.1815360TE CONNECTIVITY/AMP BRAND4.18 @ 25
thumbzoomComponent Electronics120D-F5Y5.01157TE CONN5.0 @ 25
thumbzoomDigi-Key11220565.05481345TE Connectivity AMP Connectors5.0548 @ 25
Onlinecomponents.com5750477-15.531540TE Connectivity / AMP Brand5.53 @ 25
us.rs-online.com703466325.9918025TE Connectivity5.99 @ 180
HotendaH10732846.038125TE Connectivity AMP Connectors6.038 @ 25
Newark76AC93186.35180360AMP - TE CONNECTIVITY6.35 @ 180
thumbzoomZoroG1010442386.6618025Te Connectivity6.66 @ 180
thumbzoomswatee.com5750477-17.221113TE Connectivity7.22 @ 25
